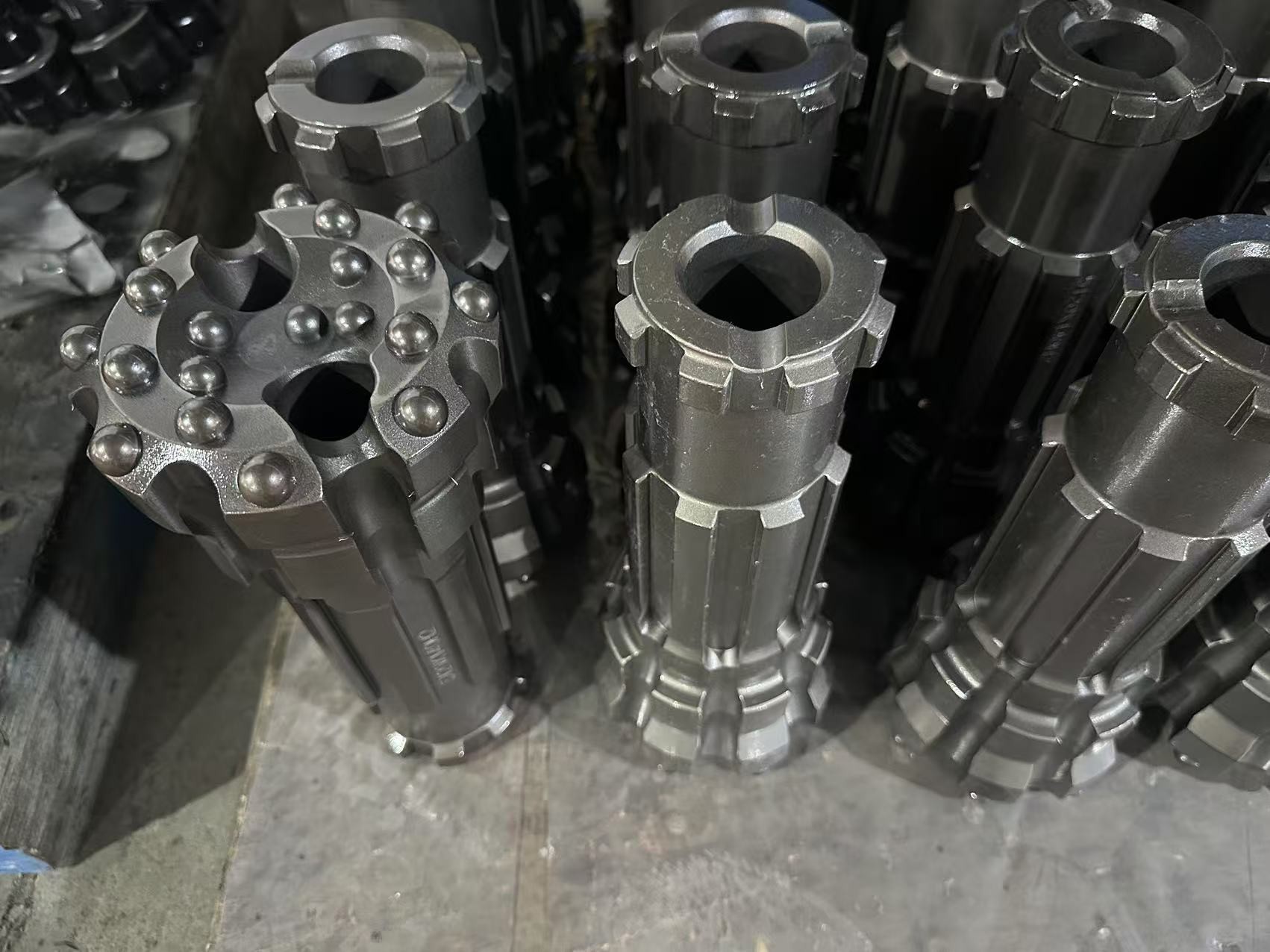

Name: Advanced Safety High Strength Steel RC Drill Bit For Reverse Circulation Well
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: option
Price: 550.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Safety Features: Advanced

Packing: Wooden Box

Connection Strength: High

Dia: Option

Weight: Varies Depending On Size And Type Of Tool

Processing Type: Forging,Heat Treatment

Material: High-strength Steel

Festure: Durable

Highlight:

RC Drill Bit

Advanced Safety Drill Bit

Reverse Circulation Well Drill Bit

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE and others

Model Number: option

Payment & Shipping Terms

Packaging Details: Seaworthy package

Delivery Time: 15-20 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 40000 piece per month

Gallery

Advanced Safety High Strength Steel RC Drill Bit For Reverse Circulation Well

Product Description

Reverse circulation drilling bit

Product Description

----Type and Technical Specification of Bits for RC Hammers ▼

Type	Number of Air hole	DIa.(mm)	Gauge Button	Front Button	Matching DTH Hammer
GLF335-95	2	95-98	8×ф14	6×ф13	GLF335
GLF335-105	2	105-108	8×ф14	6×ф13	GLF335
GLF345-115	2	115-118	8×ф14	7×ф13	GLF345
GLF345-130	2	130-133	8×ф14	7×ф13	GLF345
GLF355-140	2	140-143	8×ф14	8×ф13	GL350 GL355 GL355K
GLF355-152	2	152-155	8×ф14	7×ф13	GL350 GL355 GL355K
GLF365-178	2	178-181	8×ф16	8×ф14	GLF365
GLF365-194	2	194-197	8×ф16	8×ф14
GLF365-203	2	203-206	8×ф16	12×ф14
GLF385-203	2	203-206	8×ф16	12×ф14	GLF385
GLF385-216	2	216-219	8×ф18	12×ф14	GLF385
GLF3105-254	2	254-257	10×ф18	14×ф16	GLF3105
GLF3105-273	2	273-276	10×ф18	16×ф16
GLF3105-305	2	305-308	10×ф18	20×ф16
GLF3125-355	2	355-358	10×ф18	20×ф16	GLF3125
GLF3125-330	3	330-333	12×ф18	24×ф16
GLF3125-381	3	381-384	10×ф18	26×ф16

DTH Bit We Can Supply.

Our company is dedicated in drilling line for many years to produce drilling equipments and drilling tools. For DTH rock hammer and bits, we have

♦ Bits for Low Pressure DTH Hammers

♦ Bits for Medium & High Pressure DTH Hammers
♦ Bits for High Efficiency High Pressure DTH Hammers

♦ Bits for Through Reverse Circulation DTH Hammers

Our DTH hammer and bits are compatible with CIR, DHD, QL,SD,Mission, etc. series of Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. They are with high efficiency, low failure rate and long service life, which can realize efficient and economical drilling even for all kinds of high hardness, high abrasive rocks and other harsh conditions.

DTH Bit for Medium & High Pressure DTH Hammers

1. Size range of medium and high pressure DTH rock bit: 80mm-254mm

2. DTH rock bit face shapes: Flat, Concave, Convex 3. DTH bit button shapes: Spherical, Ballistic, Parabolic

4. Application of DTH rock bit: They are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.

5. Bit size and buttons can be customized.

Glorytek Industry (Beijing)Co.,Ltd.,

located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Exhibition

Certifications

Customer Photos

After-sale Warranty

After-sale Warranty

(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.

FAQ

Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we have drilling equipments like rigs, mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100% advance payment after purchase order by T/T for small orders.

Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.

Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
