DTH Hammer Bit Mining Drill Bit Rock Mining Water Well Drill Bits Drilling Tool

1
MOQ
800
Price
DTH Hammer Bit Mining Drill Bit Rock Mining Water Well Drill Bits Drilling Tool
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

DTH hammer bit for rock drilling

,

water well drill bits with warranty

,

mining drill bit for drilling rig
Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Model Number: All DTH Bit
Payment & Shipping Terms
Delivery Time: 15 work days
Payment Terms: T/T
Product Description
Product Description
DTH Hammer Bit Mining Drill Bit Rock Mining Water Well Drill Bits Drilling Tool 0
DTH Hammer Bit Mining Drill Bit Rock Mining Water Well Drill Bits Drilling Tool 1

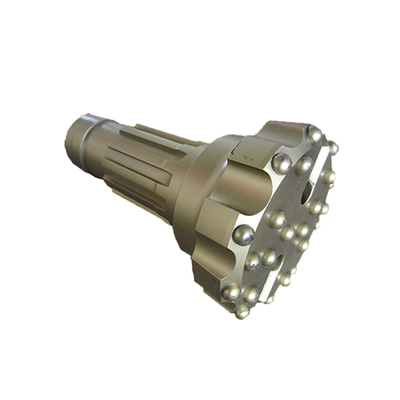

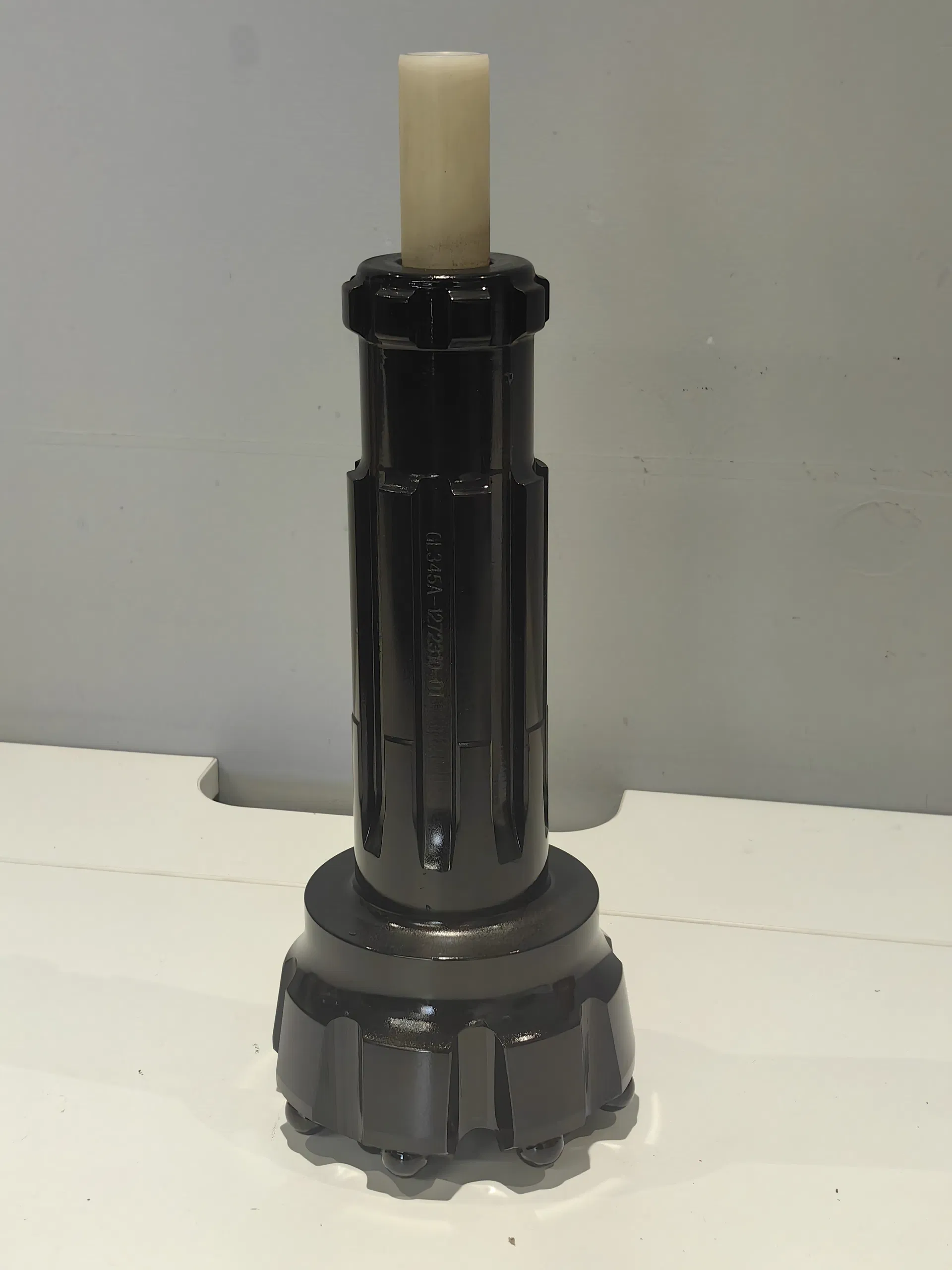

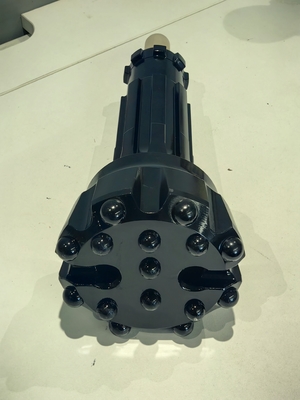

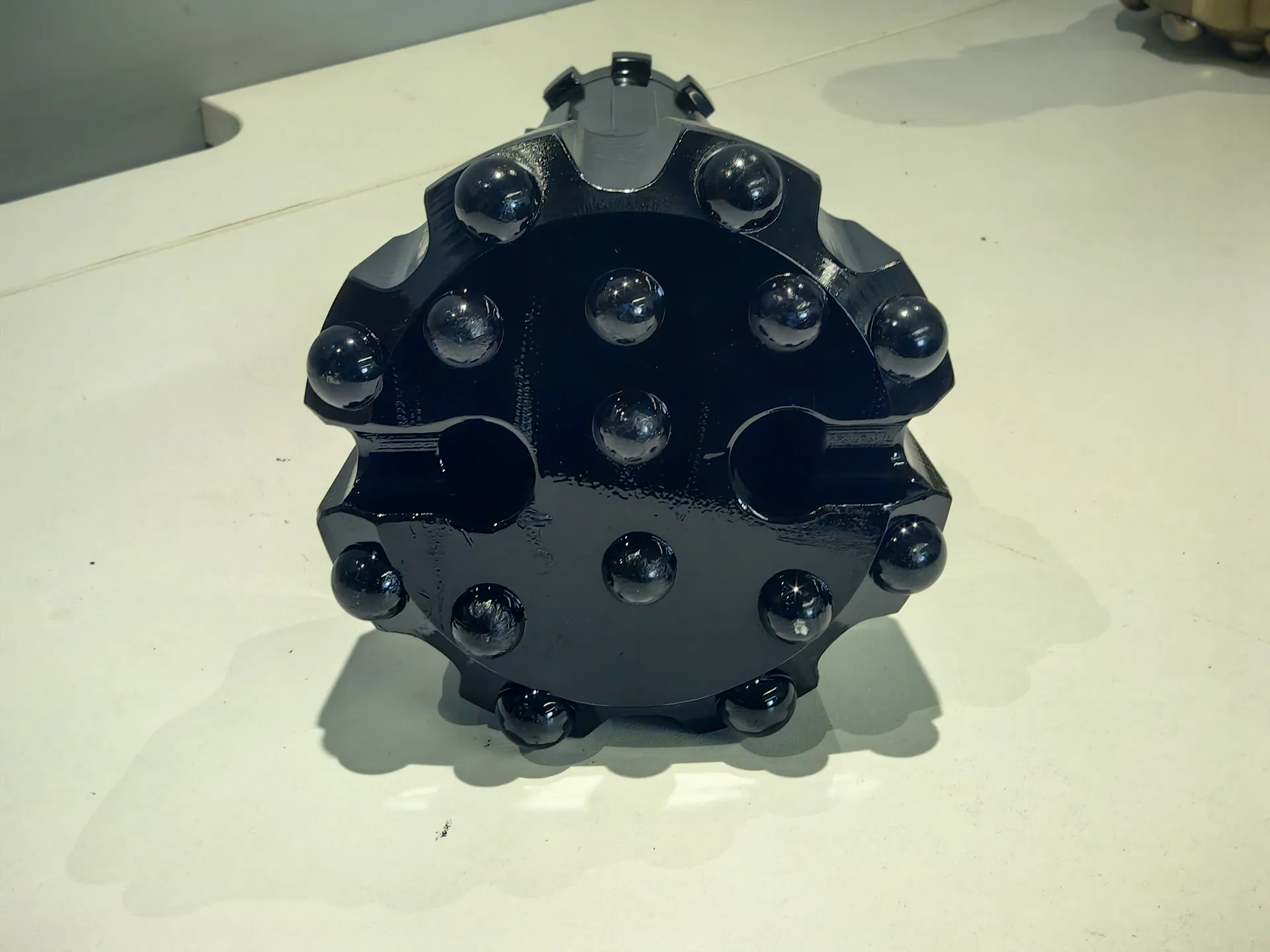

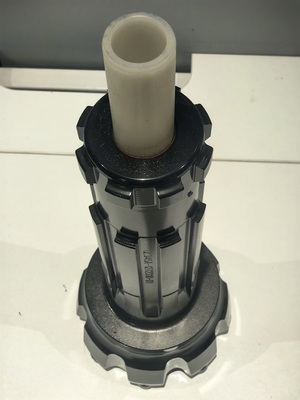

DTH Bits
Glorytek can provide CIR,DHD, QL,SD,Mission, etc. series of DTH Hammer and bits, that can compatible with Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.

Our hammer and bits are made of high quality alloy steel with advanced heat threatment to assure the good drilling performance and long service life. They are widely used by our customers all over the world.
Specification
Type
Number of Air hole
DIa.(mm)
Weight(kg)
Gauge Button
Front Button
Matching DTH Hammer
GL65PQ
1
68-72
1.5
4×Φ12
3×Φ12
GL65
GL75PQ
3
75-77
2.4
5×Φ12
3×Φ12
GL70
GL76PQ
2
76-78
2.5
5×Φ12
3×Φ12
GL76
GL76-78
2
78-82
2.6
5×Φ12
3×Φ12
GL80PQ
3
82-84
3
5×Φ12
6×Φ12
GL80 /80X
GL90A
3
90-95
3.6
6×Φ12
4×Φ12
GL80XD-90
3
90-95
3.4
6×Φ12
4×Φ12
GL80XD
GL80-II-80
3
80-82
3
5×Φ12
4×Φ12
GL80-II
GL90B
3
90-95
3.8
6×Φ12
4×Φ12
GL90/90-I
GL90T1
2
90-95
3.6
6×Φ14
1×Φ12
3×Φ12
GL90T2
2
90-95
3.8
6×Φ12
4×Φ12
GL90T3J
3
90-95
3.6
6×Φ12
4×Φ12
GL90T5
2
90-95
3.6
5×Φ12
4×Φ12
GL90-100
3
100-105
4
6×Φ12
5×Φ12
GL90-105
3
105-110
4.2
6×Φ14
5×Φ12
GL90-110
3
110-115
4.5
8×Φ14
3×Φ12
GL90-120
3
120-125
5
8×Φ14
3×Φ12
GL90-130
3
130-135
6.8
9×Φ14
4×Φ12
GL110-110
3
110-115
6.1
6×Φ14
5×Φ12
GL110
GL110-115
3
110-115
6.3
6×Φ14
5×Φ12
GL110-120
3
120-125
7
6×Φ14
6×Φ12
GL110-125
3
125-130
7.1
6×Φ14
7×Φ12
GL110-130
3
130-135
7.3
6×Φ14
7×Φ12
GL110-135
3
135-140
8
6×Φ14
7×Φ12
GL110-140
3
140-145
8.2
6×Φ14
8×Φ12
GL110-150
3
150-155
9
6×Φ14
8×Φ12
GL150-155
3
155-160
16.3
15×Φ16
4×Φ14
GL150
GL150-165
3
160-165
17.3
15×Φ16
5×Φ14
GL150-185
3
180-185
19.6
15×Φ16
6×Φ14
GL150-200
3
200-205
23
9×Φ16
12×Φ14
GL170-175
3
175-180
22.8
15×Φ16
8×Φ14
GL170
GL170-185
3
185-190
23.24
15×Φ16
8×Φ14
GL170-195
3
195-198
24
15×Φ16
10×Φ14
GL170-200
3
200-203
25.8
15×Φ16
9×Φ14
GL170-210
3
210-213
26.5
12×Φ16
6×Φ14
6×Φ16
GL170-220
3
220-223
28.5
15×Φ16
11×Φ14
GL170-230
3
230-233
32
15×Φ16
12×Φ14
GL170-240
3
240-243
36
21×Φ16
6×Φ14
GL170-250
3
250-253
45
15×Φ16
4×Φ14
Type
Number of holes
DIa.(mm)
Weight(kg)
Gauge Button
Front Button
Matching DTH Hammer
GL4.5-115
2
115-118
6.4
7×Φ14
6×Φ12
GL4.5
GL4.5-120
2
120-123
7
7×Φ14
6×Φ12
GL4.5-130
2
130-133
8
7×Φ14
6×Φ12
GL4.5-140
2
140-143
8.2
7×Φ14
6×Φ12
GL4.5-150
2
150-153
9
7×Φ14
6×Φ12
GL330-85
2
82-85
3.4
6×Φ14
3×Φ12
GL330
Company Profile
DTH Hammer Bit Mining Drill Bit Rock Mining Water Well Drill Bits Drilling Tool 2

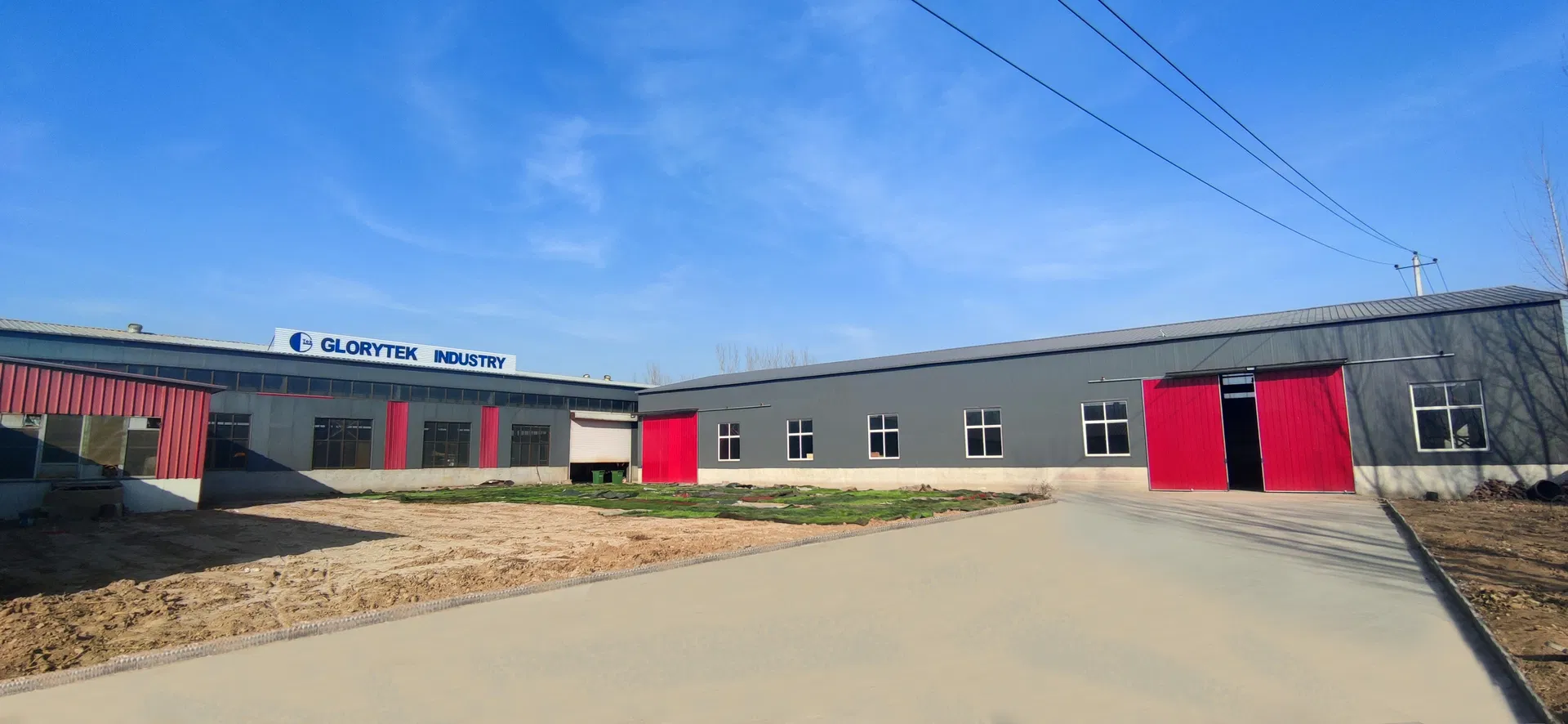

Glorytek Industry (Beijing) Co., Ltd.
is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
DTH Hammer Bit Mining Drill Bit Rock Mining Water Well Drill Bits Drilling Tool 3
DTH Hammer Bit Mining Drill Bit Rock Mining Water Well Drill Bits Drilling Tool 4
