IADC637 6 1/2inch Tricone Rock Bit with Tungsten Carbide Inserts for Hard Formation Drilling

1 piece
MOQ
To be negotiated
Price
IADC637 6 1/2inch Tricone Rock Bit with Tungsten Carbide Inserts for Hard Formation Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Codes: IADC 517/537/637 Etc.
Applicable Industry: Energy And Mining, Others Tricone Bit
Package: Plywood Boxes
Weight: 18KG
Supplementary Features: G : Reinforced Gauge Protection
Thread: 3 1/2
Diameter: 6 1/2
Type Of Processing: Forging Tricone Bit
Recommended Wob: 10,000-25,000 Lbs
Type: Tricone
Application: Medium To Hard Formation
Keyword: TCI Tricone Rock Bit For Well Drilling
Trc: Three Roller Cone
Cutting Structure: Tungsten Carbide Inserts
Highlight:

6 1/2inch Tricone Rock Bit

,

IADC637 Tricone Drill Bit

,

Tungsten Carbide Inserts Tricone Roller Bit
Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE,SGS,TUV
Model Number: 6 1-2 IADC637
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 5-7 workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2000 pieces per month
Product Description
IADC637 6 1/2" Tricone Rock Bits
Professional API steel tooth TCI tricone clay bit water well drill bit with elastomer sealed bearing system.

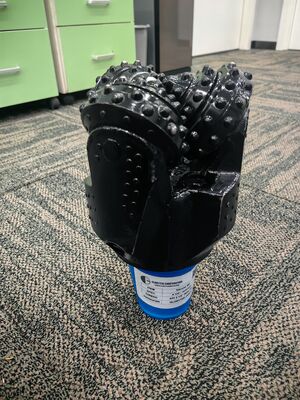

IADC637 6 1/2inch Tricone Rock Bit with Tungsten Carbide Inserts for Hard Formation Drilling 0
Product Overview
The roller bit is a widely used drilling tool that features alternating cutting teeth contact with the well bottom, resulting in small rock breaking torque and high specific pressure for efficient penetration into various formations.
Structural Features
  • Oil-storage sealed sliding or rolling bearing system with jet-type three-cone design
  • Optimized tooth arrangement with different tooth shapes and heights for various rock formations
  • Enhanced diameter protection performance with anti-friction alloy bearing system
  • Silver-plated, precision processed components for anti-bite and high load-bearing capacity
  • High-toughness carbide teeth with optimized design parameters
  • Widely used in oil, gas field exploitation, and geological drilling applications
Recommended Drilling Parameters
IADC WOB (KN/mm) RPM (r/min) Applicable Formations
417/437/447/415/435
0.35~0.9		 150~70 Very soft formations with low compressive strength and high drillability
517/527/515
0.35~1.0		 140~60 Soft formations with low compressive strength and high drillability
537/547/535
0.45~1.0		 120~50 Soft to medium formations with low compressive strength
617/615
0.45~1.1		 90~50 Medium hard formation with high compress strength
637/635
0.5~1.2		 80~40 Hard formations with high compressive strength
Note: The upper limits of WOB and RPM in the table should not be used simultaneously.
Specifications
Size 6 1/2"
IADC Code 637
Thread 3 1/2REG
Dimension 205*205*350(mm)
Teeth Type Standard Type
Back Cone Feature Single Row
Sealed Protection Enhanced Type
N.W/G.W(KG) 17/18
Performance Advantages
  • Alternating cutting teeth contact reduces rock breaking torque
  • Small contact area with well bottom creates high specific pressure
  • Easy penetration into various geological formations
  • Extended working edge length reduces wear
  • Adaptable to formations ranging from soft to hard
Packing and Delivery

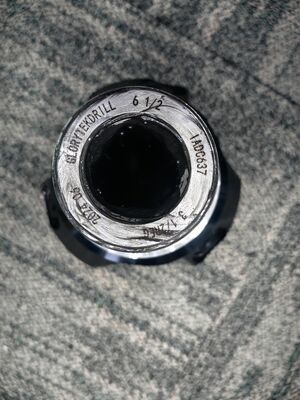

IADC637 6 1/2inch Tricone Rock Bit with Tungsten Carbide Inserts for Hard Formation Drilling 1
Manufacturer Profile

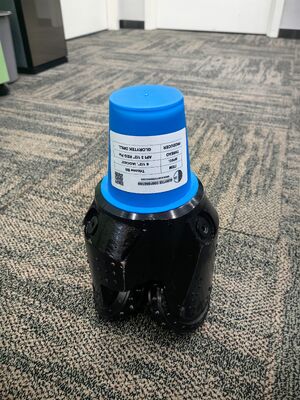

IADC637 6 1/2inch Tricone Rock Bit with Tungsten Carbide Inserts for Hard Formation Drilling 2
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. Supported by an experienced R&D team and engineers, we successfully complete projects according to client requirements.
Our manufacturing facility covers 250,000 square meters with 150,000 square meters of construction area. We operate over 200 sets of machining machinery, CNC processing centers, friction welding machines, and testing equipment, employing more than 600 professionals. Our products are exported to over 60 countries worldwide.
