Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks

1 piece
MOQ
Negotiable
Price
Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks
Features Gallery Product Description Request A Quote
Features
Specifications
Customized:: Customized
Advantage: High-Efficiency ,Wear Resistant
Connect Thread: API Or Reg Or Customized
Material:: Steel And Matrix
Available Sizes: 2 7/8 - 26 Inches
Applicable Industries: Water Well, Oil Well And HDD
Blade Size: 6-12 Inches
Formations: Soft To Medium Formations
Availabe Blades No: Based On Your Diameter
Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Model Number: 6''
Payment & Shipping Terms
Packaging Details: seaworthy package
Delivery Time: 20days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 4000 piece per month
Product Description
Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks
Product Overview

PDC drill bits are advanced drilling tools used in the oil and gas industry to penetrate challenging rock formations. These bits feature a cutting structure with synthetic diamond inserts called polycrystalline diamond compact (PDC) cutters, offering exceptional stability and directional control capabilities, making them ideal for directional drilling applications.

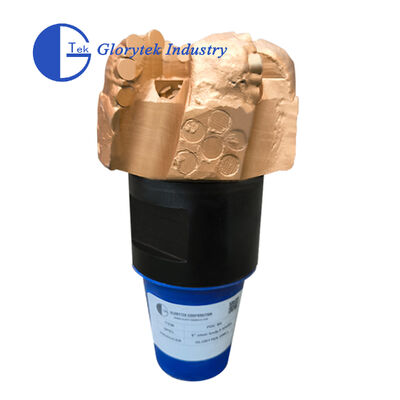

Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks 0
Technical Specifications
Bit Type 6" 8-1/2" 8-1/2" 12-1/4" Bit Type 17-1/2" GM1606T
IADC Code M423 M432 M332 M323 IADC Code M432 M332
Blade 5 6 8 6 Blade 6
Cutter Size (mm) Φ13MM Φ16MM Φ13MM Φ16MM Cutter Size (mm) Φ16MM;Φ13MM
Nozzle Qty/Type 5 13.2 9.6 30.78 Cutter Qty Φ16*58;Φ13*81
Nozzle Qty/Type 3NZ 6NZ 4NZ 6NZ Nozzle Qty/Type 8NZ
Gauge Length 1.5" 2.2" 2" 2.5" Gauge Length (mm) 110
Connection 3-1/2" API REG 4-1/2" API REG 4-1/2" API REG 6-5/8" API REG Connection 7-5/8" API REG
Make up Torque(KN.m) 10.4~11.4 24.1~26.5 24.1~26.5 51.7~56.9 N.W./ G.W.(KG) 338/388
Rotary Speed(rpm) 60-260 60-260 60-260 60-260 Nozzle Size (inch) 10/32
Weight on Bit(KN) 8-50 20-100 20-100 30-140 Rotary Speed(Rpm) 60-260
Max.WOB(KN) 90 130 130 180 Weight On Bit(KN) 30-200
Flow Rate(lps) 10-30 22-35 22-35 38-70 Max.WOB (KN) 240
Flow Rate(lps) 45-80
Manufacturer Profile

Glorytek Industry (Beijing) Co., Ltd, located in Beijing, China, is an integrated corporation specializing in manufacturing and exporting top-quality drilling equipment and drilling parts for decades. We are supported by a highly experienced team of designers and engineers that enable us to successfully complete all assigned projects according to our clients' specific requirements.

Our products are widely used in mining, water well drilling and exploration, anchor grouting projects, slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations for seaport channels, hydropower projects, and national defense projects.

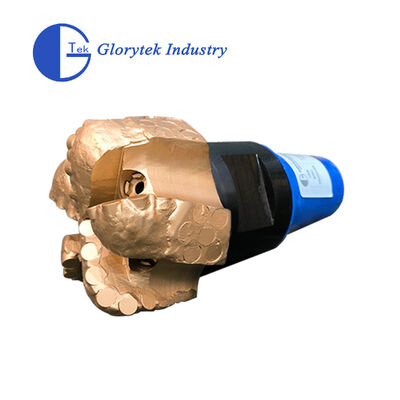

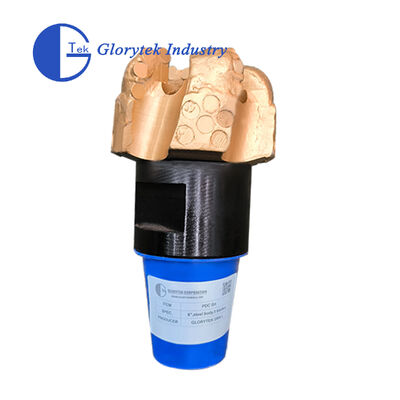

Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks 1 Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks 2
After-Sales Warranty
  • Free replacement for any problems caused by quality issues
  • Timely after-sales assistance provided at all times
Frequently Asked Questions
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply a full set of drilling tools, including drill pipe, tricone bits, PDC bits, drag bits, and DTH Hammers. We also provide drilling equipment like rigs, mud pumps, and air compressors.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, with 70% remaining payment before shipping by T/T. For small orders, we accept 100% advance payment after purchase order by T/T.
Q: How is your delivery time?
A: Delivery time depends on your purchasing quantity. Normally we can deliver within 3-5 days.
Q: How can you ensure the quality?
A: We have professional quality control, and all products undergo strict inspection and testing for every order before shipping.
