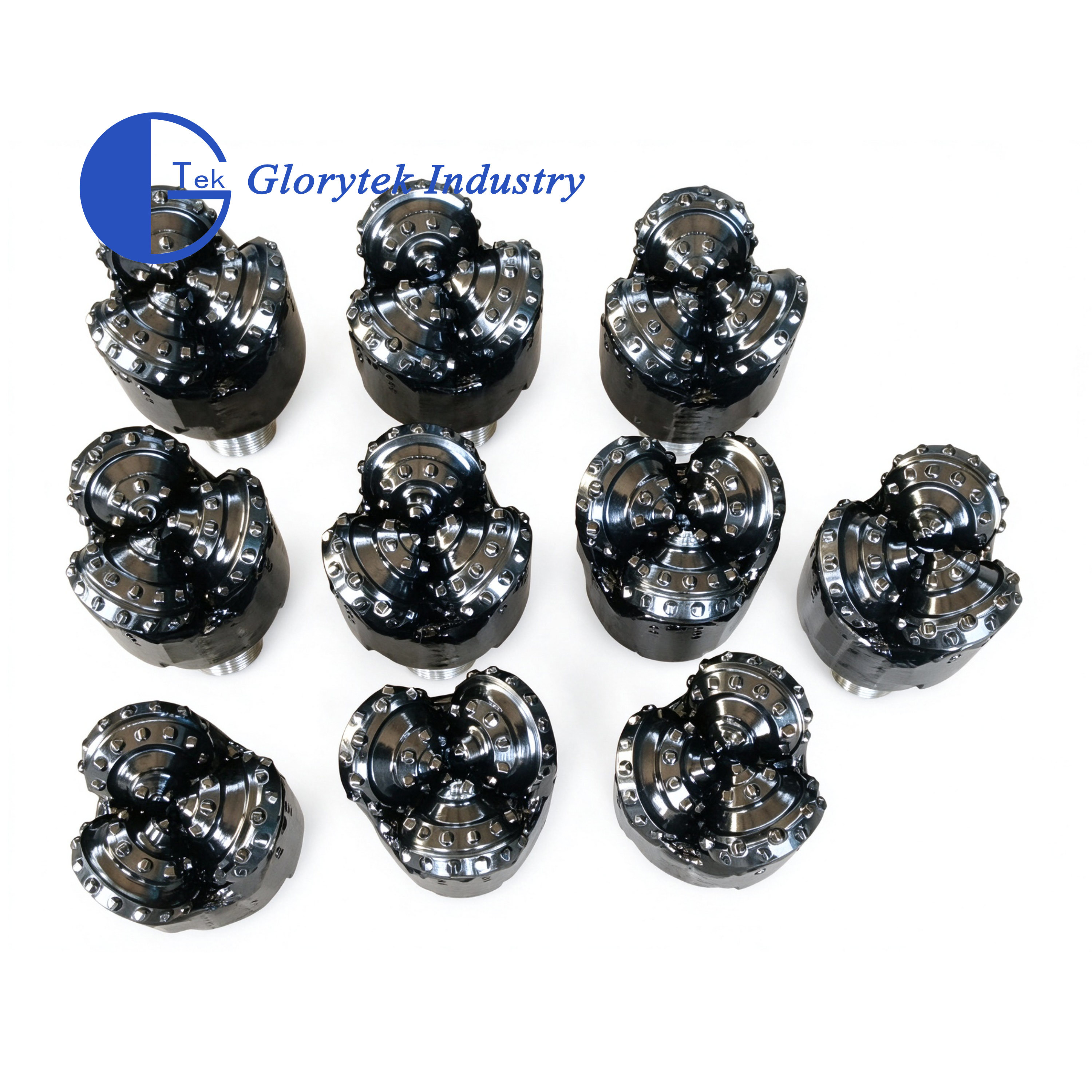

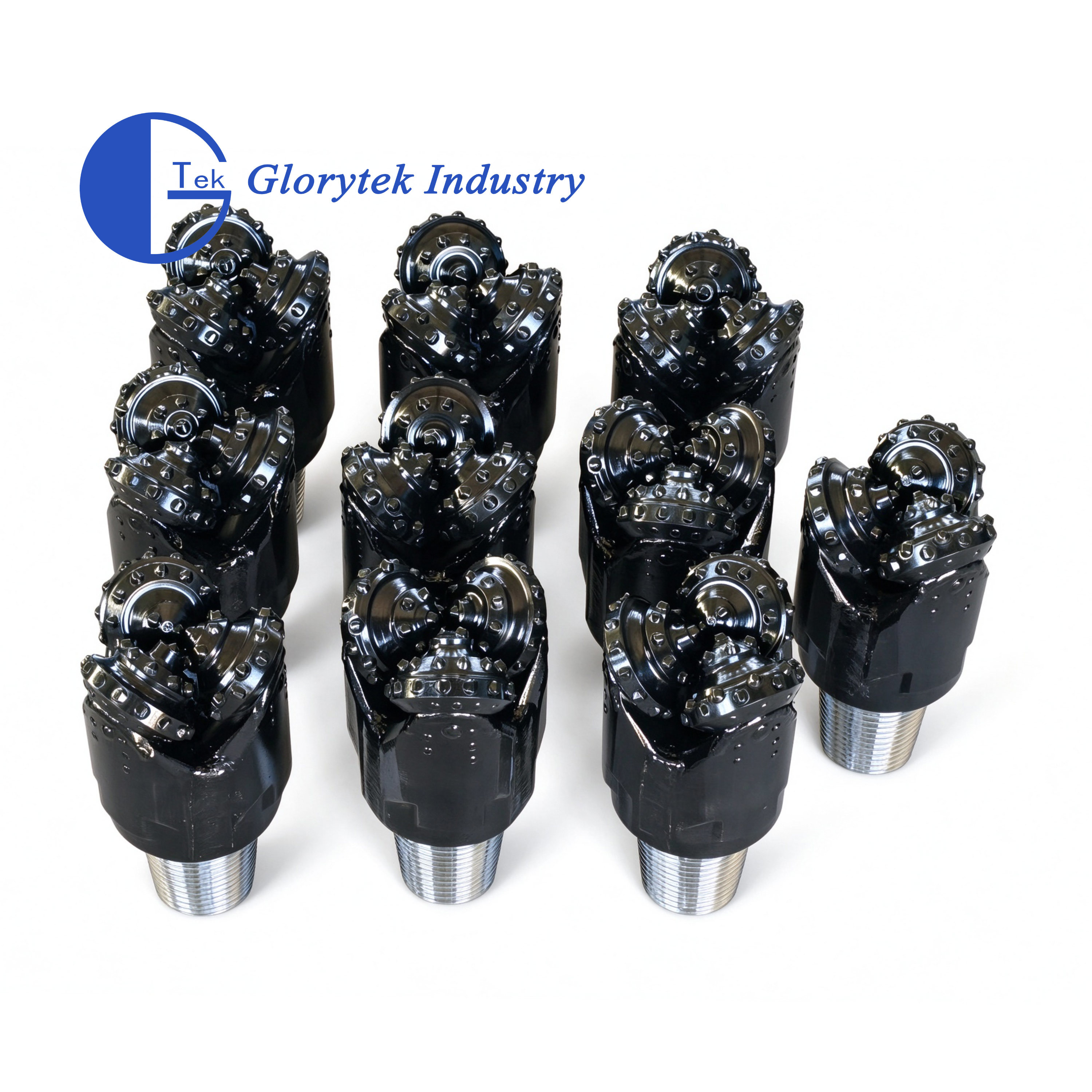

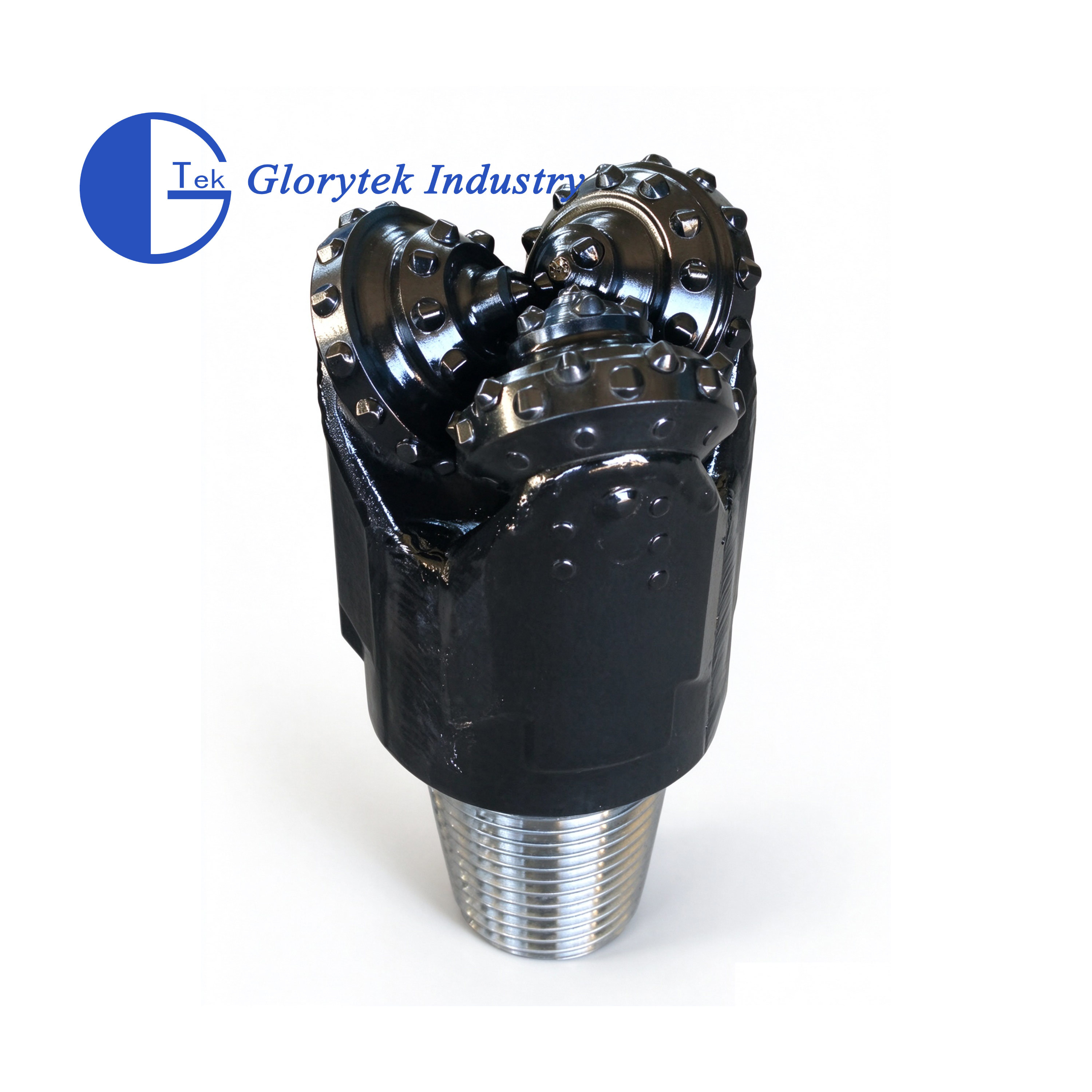

3 7-8" IADC537 TCI Tricone Rock Bit for Hard Shale Drilling‌

3 7-8 " IADC537 TCI Tricone Rock Bit

3 7/8" IADC537 TCI Tricone Rock Bit
This is a tungsten carbide insert tricone roller bit complying with API Spec 7-1 and IADC standard. Model IADC537 is designed for soft to medium formations such as shale, sandstone and medium limestone. Equipped with sealed journal bearing and hard tungsten carbide inserts, it delivers stable penetration rate, good wear resistance and long service life. Widely used for water well drilling, geological exploration, mining and HDD projects.

It is a versatile drilling bit for water well, geothermal well, mining drilling, geological survey and horizontal directional drilling (HDD). Custom thread connections and gauge protection options are available on request.

1. Optimized Cutting Structure
Tungsten Carbide Cutters (TCI): Utilizes high-toughness tungsten carbide cutters with a tooth surface hardness exceeding HRC85 and compressive strength suitable for formations of 15,000-25,000 psi, extending drill bit life by 40% compared to steel cutters.

Cut Layout: Staggered cutter placement reduces vibration, and lateral nozzles (3-4) enhance cutting efficiency and reduce repetitive cutting losses.

2. Bearing and Sealing System

Double Thrust Bearing: Carbide journals with a silver-plated anti-friction coating offer a temperature resistance of up to 200°C and a speed range of 50-120 rpm.
Rubber Seals + Elastic Compensation: Bimetallic seals and O-rings prevent mud intrusion, while a grease compensation system ensures long-term bearing lubrication.

3. Enhanced Adaptability
Gage Protection: A tungsten carbide block is embedded in the tail of the cutter to prevent wear on the wellbore wall and maintain a stable borehole diameter. Modular design: supports adjustment of the number of nozzles (3-6) and spray angle, suitable for water-based or oil-based mud systems.


Packing: wooden box.
Delivery: Normally 5-7 days after down payment.
Shipping method: by express, by air or by sea


Glorytek Industry (Beijing) Co., Ltd. is a professional manufacturer and supplier of drilling equipment and drilling tools with more than 20 years experience. We are supported and assisted by rich experienced R & D team and engineers with strong technical force,skilled production workers and high-quality sales team, that enable us to complete all the high-quality products and services on time as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.

Our main products include: water well drilling rigs, blasthole drilling rigs, core sample drilling rigs for surface drilling and underground drilling, foundation piling rigs, horizontal directional drilling rigs, air compressor, oil and gas drilling equipment like mud pump, downhole motor, drilling tools such as drill pipes, tricone bit, pdc bit, dth hammer, hammer bit, overburden casing system, button bit, shank adaptor, reamers, wireline coring tools etc. All products are meeting international standards, with stable quality and superior cost performance.

Glorytekdrill exports products into over 60 countries, we have CE certificate, SGS certificate, the quality can be guaranteed. Our high-quality products and perfect service have won favourable comments from different customers all over the world.

Glorytekdrill will establish a long-term relationship with customers based on the concept of quality first, customer first, integrity-based, and win-win cooperation.

Q1: What formation is the 3 7/8" IADC537 tricone bit suitable for?
A1: IADC537 is designed for soft to medium formations, such as shale, sandstone, marl and medium limestone with slight abrasive interlayers.

Q2: What does TCI mean for this rock bit?
A2: TCI stands for Tungsten Carbide Insert. The bit is fitted with pressed tungsten carbide inserts on the cones for rock crushing and shearing.

Q3: What standard does this 3 7/8" IADC537 tricone bit comply with?
A3: It follows IADC rock bit classification and meets API Spec 7-1 requirements.

Q4: What bearing type does this IADC537 tricone bit use?
A4: It adopts sealed journal bearing, which lowers friction and extends bit working life.

Q5: What are the main application scenarios of this 3 7/8" IADC537 tricone bit?
A5: It is widely used for water well drilling, geological exploration, mining drilling, geothermal well and HDD projects.

Q6: Can we customize the thread connection or gauge protection for this bit?
A6: Yes, custom thread connections and gauge protection options are available upon request.
