Home /Products/Water Well Drill Rig/Borehole Water Well Drill Rig Trailer Mounted 250m Depth For Deep Wells

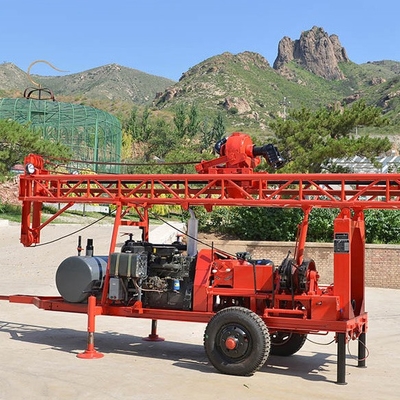

Borehole Water Well Drill Rig Trailer Mounted 250m Depth For Deep Wells

1
MOQ
Negotiable
Price
Borehole Water Well Drill Rig Trailer Mounted 250m Depth For Deep Wells
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL-Ⅱ 250m Trailer Mounted Borehole Water Well Drill Rig For Deep Wells
Keyword: Trailer Water Well Drill Rig
Depth: 250m
Drilling Diameter: 90－1200mm
Chassis: Trailer
Rod Length: 3m, 6m
Drill Rod Diameter(mm): φ60 φ73 φ89 φ95
Rig Mass(Kg): 3400
Power Unit: Diesel Engine
Transport Status(mm): 6700×2020×2750
Highlight:

Water Well Drill Rig Trailer Mounted

,

Water Well Drill Rig 250m

,

trailer mounted water well drilling rigs
Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL-Ⅱ
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

GL-Ⅱ 250m Trailer Mounted Borehole Water Well Drill Rig for Deep Wells



Description:

GL-Ⅱ water well drilling rig is multifunctional, it can be used with an air compressor, and mud pump.
Portable drilling rigs are not only designed for water, they can also be used in all conditions depending on the hole-forming purpose.
This series of water well drilling rigs has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate. Once launched, it has been recognized by the market and has been widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.



Tehnical Parameter:



Hole diameter(mm): 90--1200 Dimensions(mm)(L-W-H)Working conditions 4910×2020×6650
Hole depth(m): 250M Transport status(mm): 6700×2020×2750
Run Of Rod(m): 3-6 Supporting Form: Mechanical Screw
Drill rod diameter(mm): φ60 φ73 φ89 φ95 Mask Up-Down: Hydraulic Drive
Drilling Technology:Normal and Reverse Circulation for both Mud and Air Rig mass(Kg): 3400
Down-The-Hole hammers: Middle-High-Pressure Air Chassis: Trailer with two wheels
Drill Head Inside Diameter :φ35 φ60 φ81 φ120 Power Unit: Diesel Engine
Drill Head Lifting Speed(m/s): 0.25 0.15 Power(kW): 40
Drill Head lifting Force(T): 15 Pump :LBN-20 Normal and Reverse circulation pump group
Drill Head Spin Speed: A(Forward:13-22-48,Reverse (r/min): 10-17-36 Flow(m3/h): 80
  Main Hoist Lifting Force(kN): 2.5T


Borehole Water Well Drill Rig Trailer Mounted 250m Depth For Deep Wells 0

Borehole Water Well Drill Rig Trailer Mounted 250m Depth For Deep Wells 1



Main Application

◆Drilling wells for urban and rural life
◆Drilling wells for agricultural irrigation and industries
◆Drilling for geotechnical survey
◆Drilling construction engineering holes
◆Drilling geothermal pump wells

Borehole Water Well Drill Rig Trailer Mounted 250m Depth For Deep Wells 2



Company Profile



Borehole Water Well Drill Rig Trailer Mounted 250m Depth For Deep Wells 3

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


We have been supplying drilling equipment and drilling tools for 20 years. Our products are exported to more than 60 countries. We have mature production lines and strict quality control team. In addition to various drilling rigs, we can also provide mud pumps, air compressors, drilling tools and other drilling products.
Borehole Water Well Drill Rig Trailer Mounted 250m Depth For Deep Wells 4

Borehole Water Well Drill Rig Trailer Mounted 250m Depth For Deep Wells 5





Related drilling products:



Besides the drilling rig machine, we can also supply other drilling equipment and drilling tools for borehole drilling projects, such as air compressor, mud pump, drill rods, DTH hammer and bit, tricone bit, drag bit, adaptors, etc.



Borehole Water Well Drill Rig Trailer Mounted 250m Depth For Deep Wells 6
