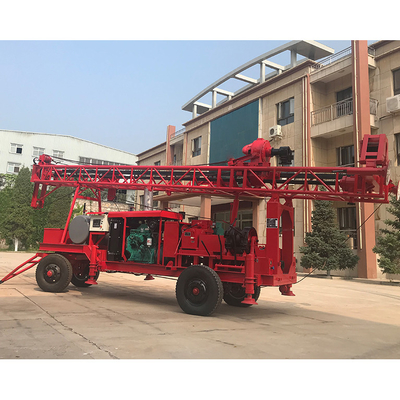

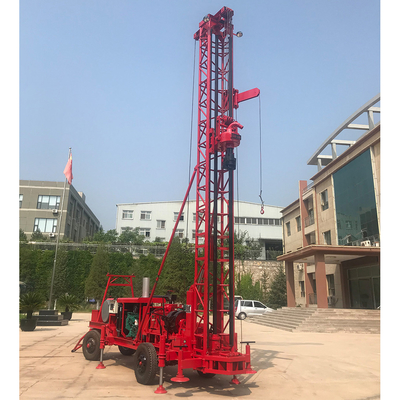

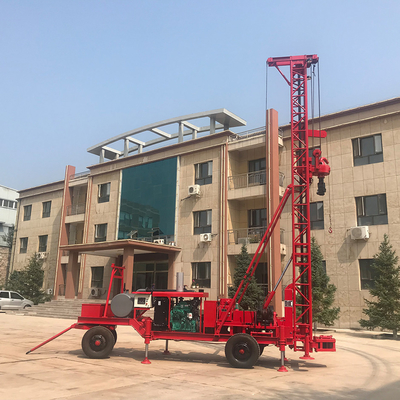

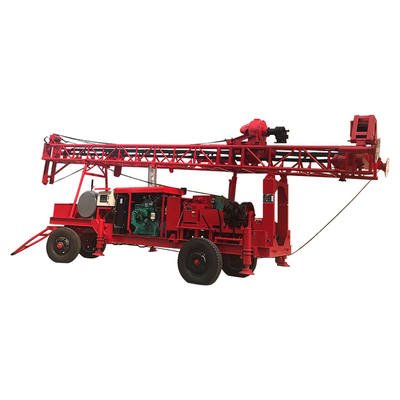

GL-ⅡA Trailer Type Air Drilling Mud Rotary Drilling Water Well Drill Rig for 400m Borehole Drilling
Description:
GL-ⅡA Trailer Type Air Drilling Mud Rotary Drilling Water Well Drilling Rig is mainly used in industrial and agricultural water conservancy projects, test wells, and another exploration drilling. In particular, geothermal heating drilling can also meet various projects of engineering foundation reinforcement, loose gravel drilling, and rock formation connection.
Our drilling rigs are more efficient, have lower failure rates, are more economical and durable, and have comprehensive cost-effectiveness. Welcome to contact us and discuss with more details.
Tehnical Parameter:
Drilling Parameter | |
Hole diameter: | 90--1200(mm) |
Hole depth: | 400(m) |
Run Of Rod : | 3,4(m) |
Drill rod diameter: | φ73 φ89 φ95 φ133(mm) |
Drilling Technology: | Normal and Reverse Circulation for both Mud and Air |
Down-The-Hole hammers: | Middle-High-Pressure Air |
Performance Parameter | |
Drill Head Inside Diameter : | Φ60 φ80 φ120 |
Drill Head lifting speed(m/s): | 0.37 0.16 |
Drill Head lifting Force(T): | 18T |
Drill Head Spin Speed: | A(Forward:14-23-52-84,Reverse:8-13-29-47r/min) |
B(Forward:32-52-116-188,Reverse:18-29-65-106r/min) | |
Shape Parameters | |
Dimensions: | (L-W-H) Working conditions 5300×2000×7200(mm) |
Transport status: | (L-W-H) 7900×2000×3000(mm) |
Supporting Form: | Mechanical Screw |
Mast Up-Down: | Hydraulic Type |
Rig mass: | 3800(Kg) |
Chassis: | Trailer with four wheels |
Power Unit: | Diesel Engine |
Power: | 49(kW) |
Pump: | LBN-20 Normal and Reverse Circulation Pump Group |
Flow(m³/h): | 80 |
Main Hoist Lifting Force: | 3T |
Feed Thrust: | 2T |
Notes: Drill head spin speed can be selected, A is normal |
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
1. Q: What kind of terms of payment can be accepted?
A: Normally we can work on T/T or as per customers' requirements.
2. Q: Are you manufacturer?
A: Yes, we are the manufacturer.
3. Q: What about the delivery time?
A: 20 days after receiving the deposit.
4. Q: What about the warranty time?
A:12 months after shipment if the problem is caused by quality issue, the engine is 6 months.
5. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 set.
6. Q: Could you stick customers' brands on the products?
A: We warmly welcome the OEM orders.
Related drilling products:
Besides the drilling rig machine, we can also supply other drilling equipment and drilling tools for borehole drilling projects, such as air compressor, mud pump, drill rods, DTH hammer and bit, tricone bit, drag bit, adaptors, etc.
