Diesel Driven Water Well Drill Rig Equipment Compact Structure For 200m Drilling

1
MOQ
Negotiable
Price
Diesel Driven Water Well Drill Rig Equipment Compact Structure For 200m Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL200R 200m Drilling Diesel Driven Rubber Crawler Water Well Drill Rig With Compact Structure
Keyword: Rubber Crawler Water Well Drill Rig
Depth: 200m
Drilling Diameter: 138-219mm
Rod Length: 3m
Drill Rod Dia.: 76/89mm
Lifting Force: 16T
Weight Of The Rig: 5.5T
Dimension: 3.9m X 1.8m X 2.3m
Diesel Engine: 77KW
Highlight:

Diesel Water Well Drill Rig GL200R

,

Water Well Drill Rig 200m

,

Compact drill rig equipment

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL200R
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

GL200R 200m Drilling Diesel Driven Rubber Crawler Water Well Drill Rig with Compact Structure



Description:

GL200R water well drill rig is mounted on rubber crawler chassis, the cost is lower than that of steel crawler chassis. It was driven by 77KW Chinese famous diesel engine.
GL200R water well drill rig is designed to drill 200m deep wells. It is more suitable for air percussion drilling. But if you prefer to drill by mud pump, we can customize this machine with mud pump as per your requirements.
We can supply mud pump or air compressor for GL200R water well drill rig, and we also supply full set of drilling tools with high performance.



Tehnical Parameter:



Technical Parameter
Max drilling depth 200m
Drilling diameter 105-300mm
Air pressure 1.25-3.5Mpa
Air consumption 16-55m³/min
Rod length 3m
Rod diameter 76/89mm
Main shaft pressure 4T
Lifting force 16T
Fast lifting speed 20m/min
Fast forwarding speed 40m/min
Rotary torque 6500 N.M
Rotary speed 30/120r/min
Winch lifting force 1.5T
High leg stroke 1.35-1.5m
Drilling efficiency 10-35m/h
Moving speed 2.5Km/h
Uphill angle 21°
Weight of the rig 5.5T
Dimension 3.9m x 1.8m x 2.3m
Working condition loose layer or bedding rock
Drilling method

Top Hammer Hydraulic Rotating and feeding,

Down the hole hammer or mud pump drilling

Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 77KW

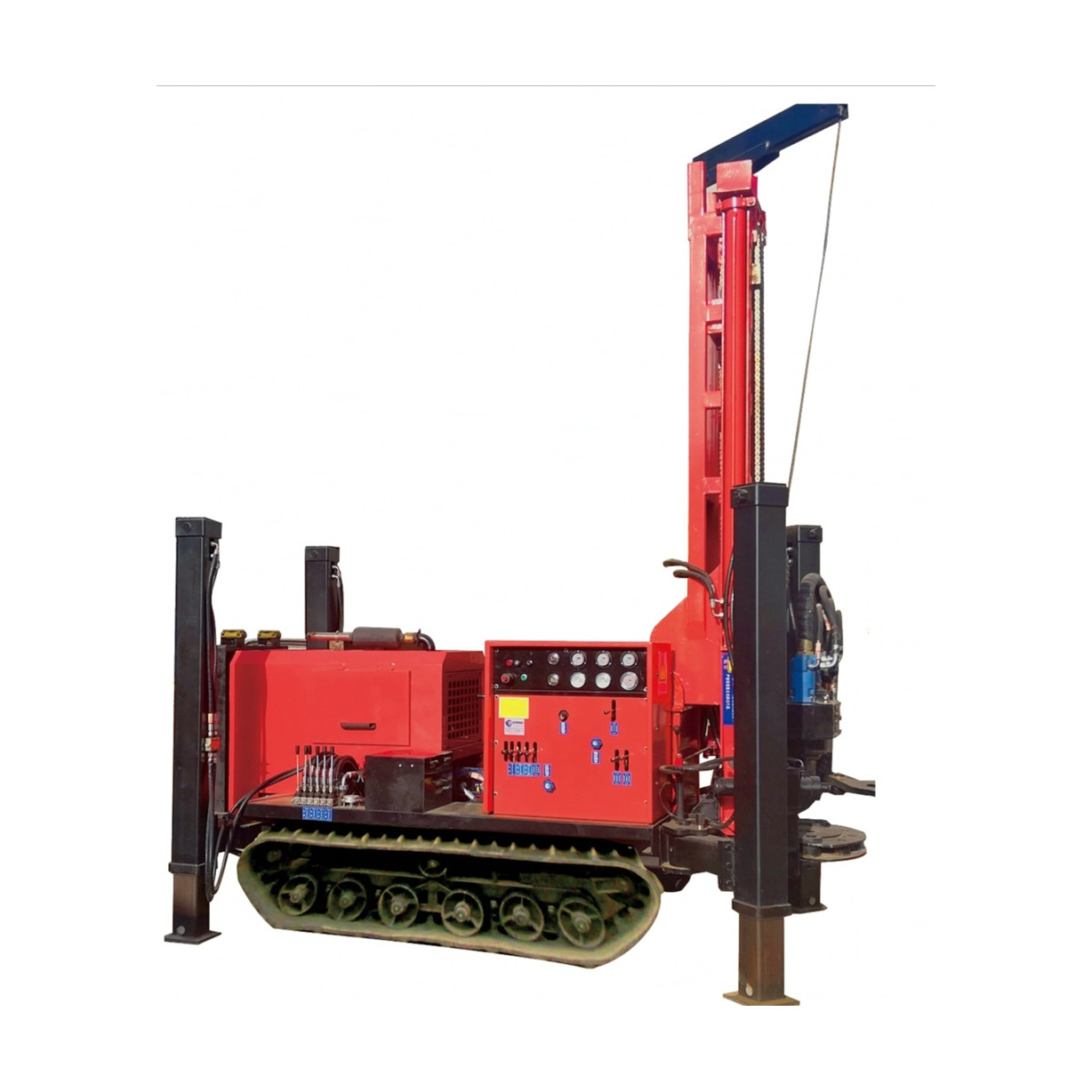

Diesel Driven Water Well Drill Rig Equipment Compact Structure For 200m Drilling 0

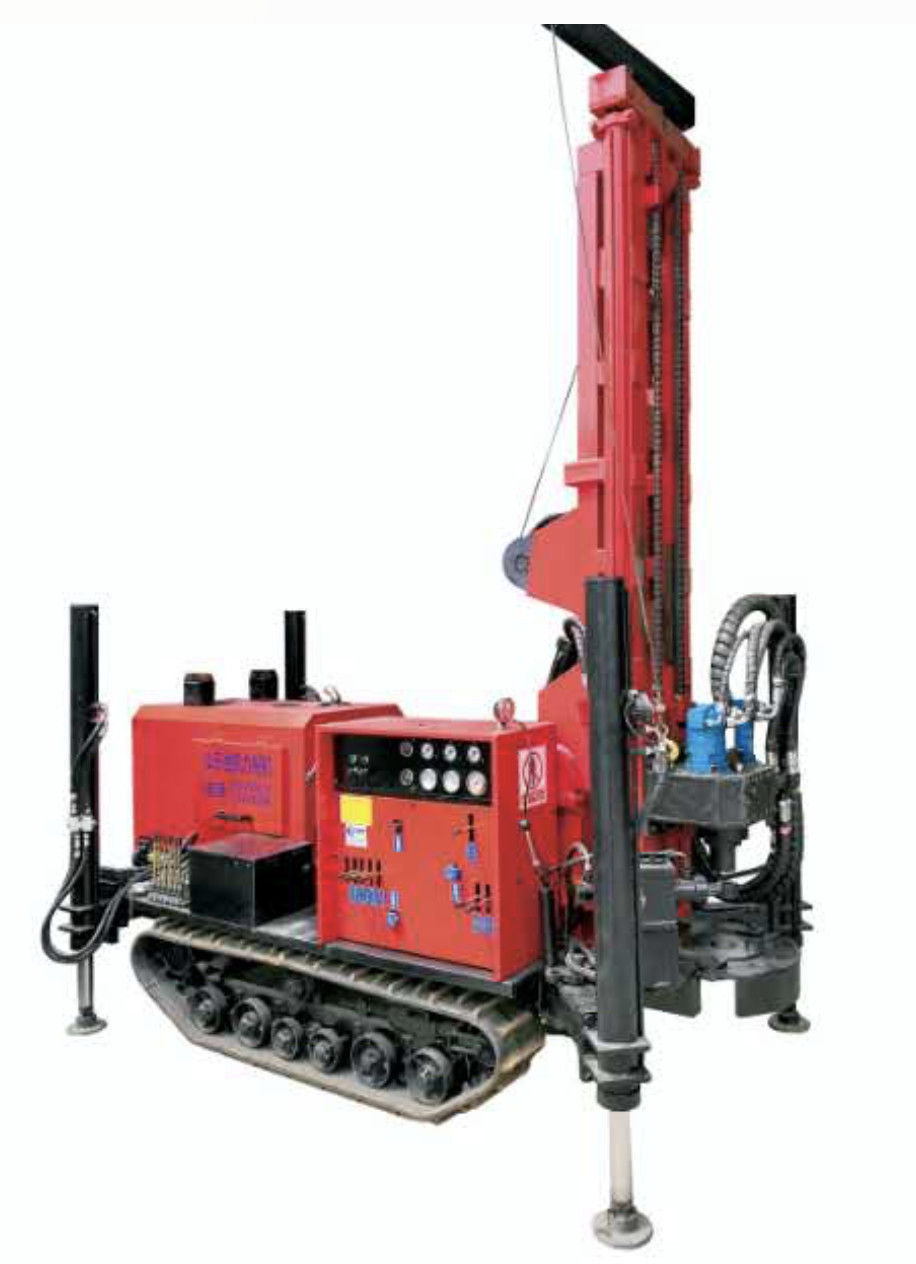

Diesel Driven Water Well Drill Rig Equipment Compact Structure For 200m Drilling 1



Company Profile

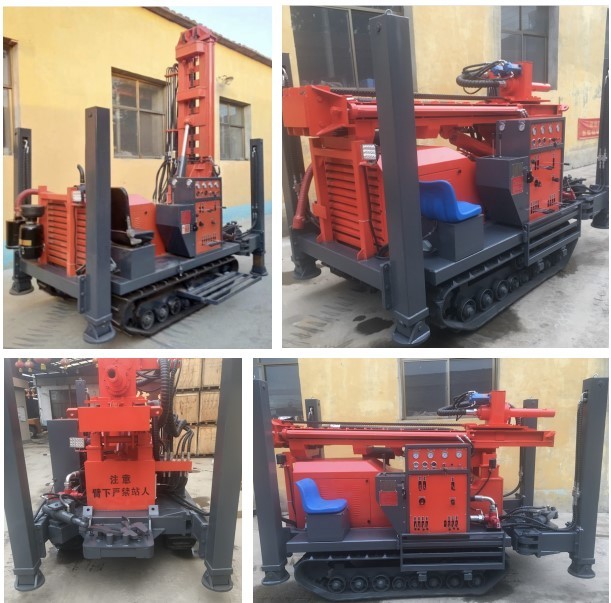

Diesel Driven Water Well Drill Rig Equipment Compact Structure For 200m Drilling 2

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.



Packing and Transport



We supply standard exporting packing. We would like to help you arrange the delivery by. Normally it will take around 20-25 days for production.

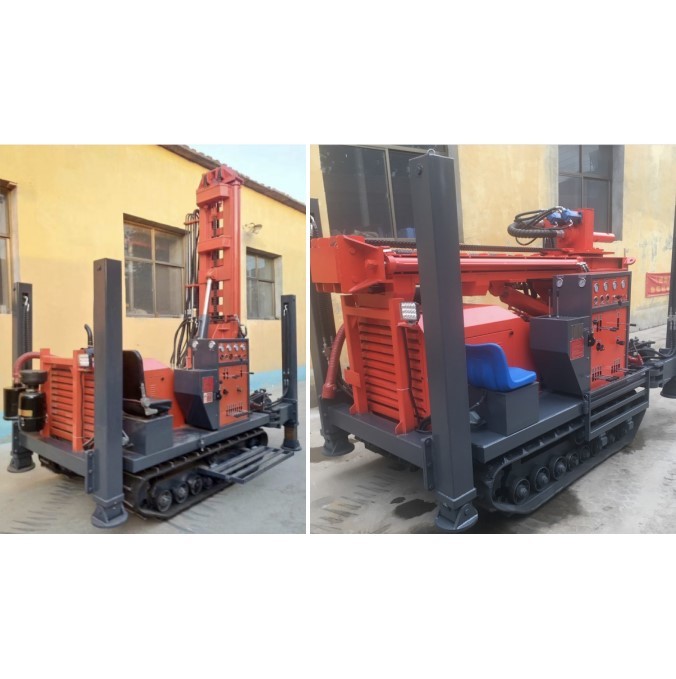

Diesel Driven Water Well Drill Rig Equipment Compact Structure For 200m Drilling 3



WHY CHOOSE Glorytekdrill?

1.Our propose is to supply the most suitable borehole drilling machine to users.
You can get a full range of product selection advice and product customization without paying any fees.

2.We have mature production line and strict quality control team to make sure that every drilling rig is produced with high quality.

3.We are not only familiar with borehole drilling rig, but also the matching mud pump/air compressor and drilling tools. You can purchase a complete set of drilling products at one time.

4. One year Warranty. Within the period of the first year after delivery, the main parts of GL- IIA Trailer Mounted Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.
