Industrial Borehole Water Well Drill Rig Fully Hydraulic For 350m Drilling

1
MOQ
Negotiable
Price
Industrial Borehole Water Well Drill Rig Fully Hydraulic For 350m Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL350S Fully Hydraulic Track Mounted Borehole Drill Rig Machines For 350m Drilling
Keyword: Borehole Drill Rig Machines
Depth: 350m
Drilling Diameter: 105-325mm
Rod Length: 3m/6m
Drill Rod Dia.: 76/89/102mm
Lifting Force: 26T
Weight Of The Rig: 8.5T
Dimension: 5.9m X 1.8m X 2.3m
Diesel Engine: 90KW
Highlight:

Water Well Drill Rig Hydraulic

,

industrial Water Well Drill Rig

,

350m water borehole drilling rig

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL350S
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

GL350S Fully Hydraulic Tracked Borehole Water Well Drill Rig for 350m Drilling



Description:

GL350S crawler drilling rig is a new model independently developed and produced by our factory on the basis of drawing on the advanced technology of similar models at home and abroad.
The main accessories of the drilling rig adopt the policy of optimizing procurement at home and abroad, and the diesel engine, hydraulic pump, main valve, motor and key hydraulic accessories are all selected from well-known brand products.
The large torque, high power configuration, reasonable structure design and advanced operation mode of the drilling rig ensure the efficient construction of the drilling rig.



Tehnical Parameter:



Technical Parameter
Max drilling depth 350m
Drilling diameter 105-325mm
Air pressure 1.25-3.5Mpa
Air consumption 16-55m³/min
Rod length 3m/6m
Rod diameter 76/89/102mm
Main shaft pressure 6T
Lifting force 26T
Fast lifting speed 24m/min
Fast forwarding speed 50m/min
Rotary torque 9900 N.M
Rotary speed 30/170r/min
Winch lifting force 1.5T
High leg stroke 1.5m
Drilling efficiency 10-35m/h
Moving speed 2.5Km/h
Uphill angle 21°
Weight of the rig 8.5T
Dimension 5.9m x 1.8m x 2.3m
Working condition loose layer or bedding rock
Drilling method

Top Hammer Hydraulic Rotating and feeding,

Down the hole hammer or mud pump drilling

Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 90KW

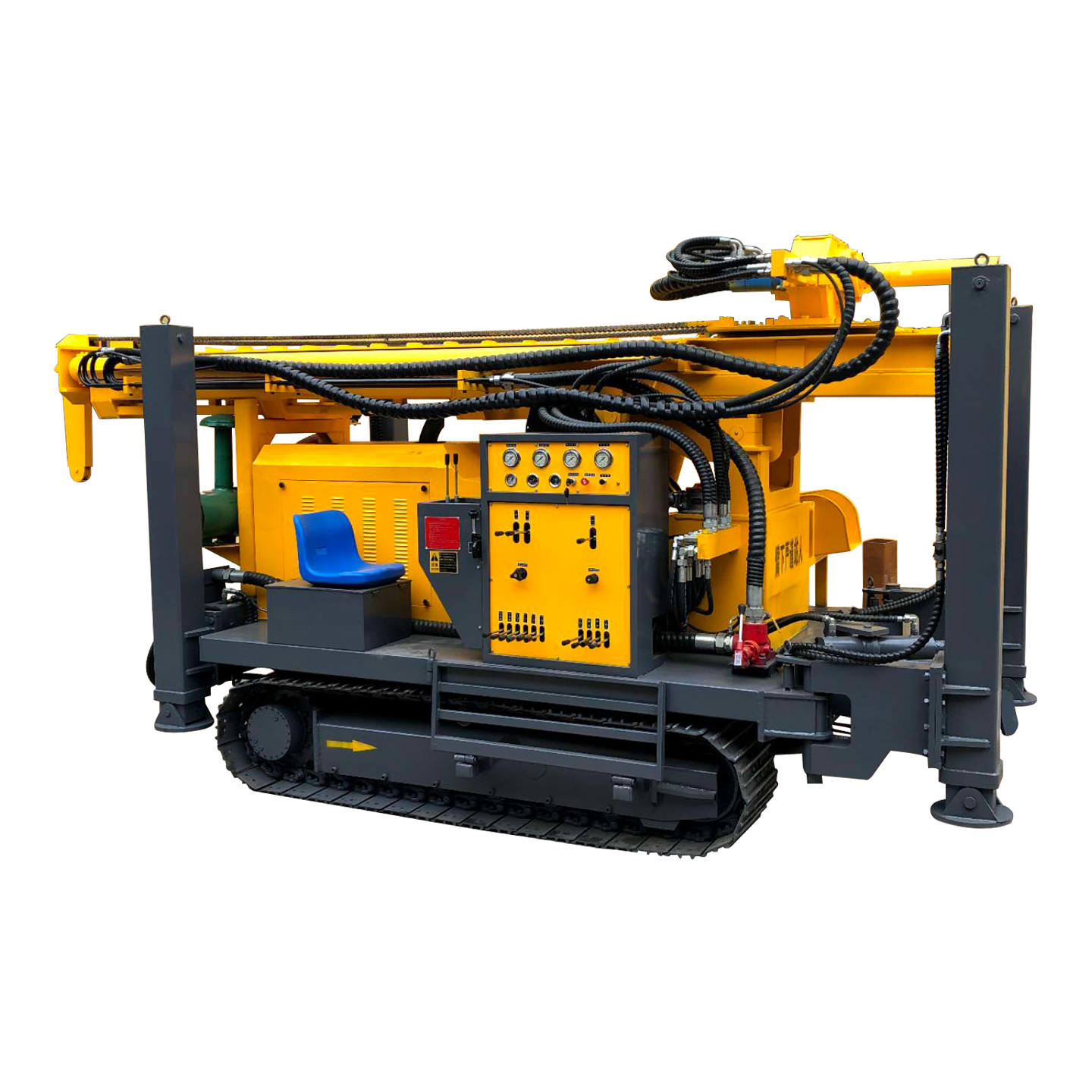

Industrial Borehole Water Well Drill Rig Fully Hydraulic For 350m Drilling 0

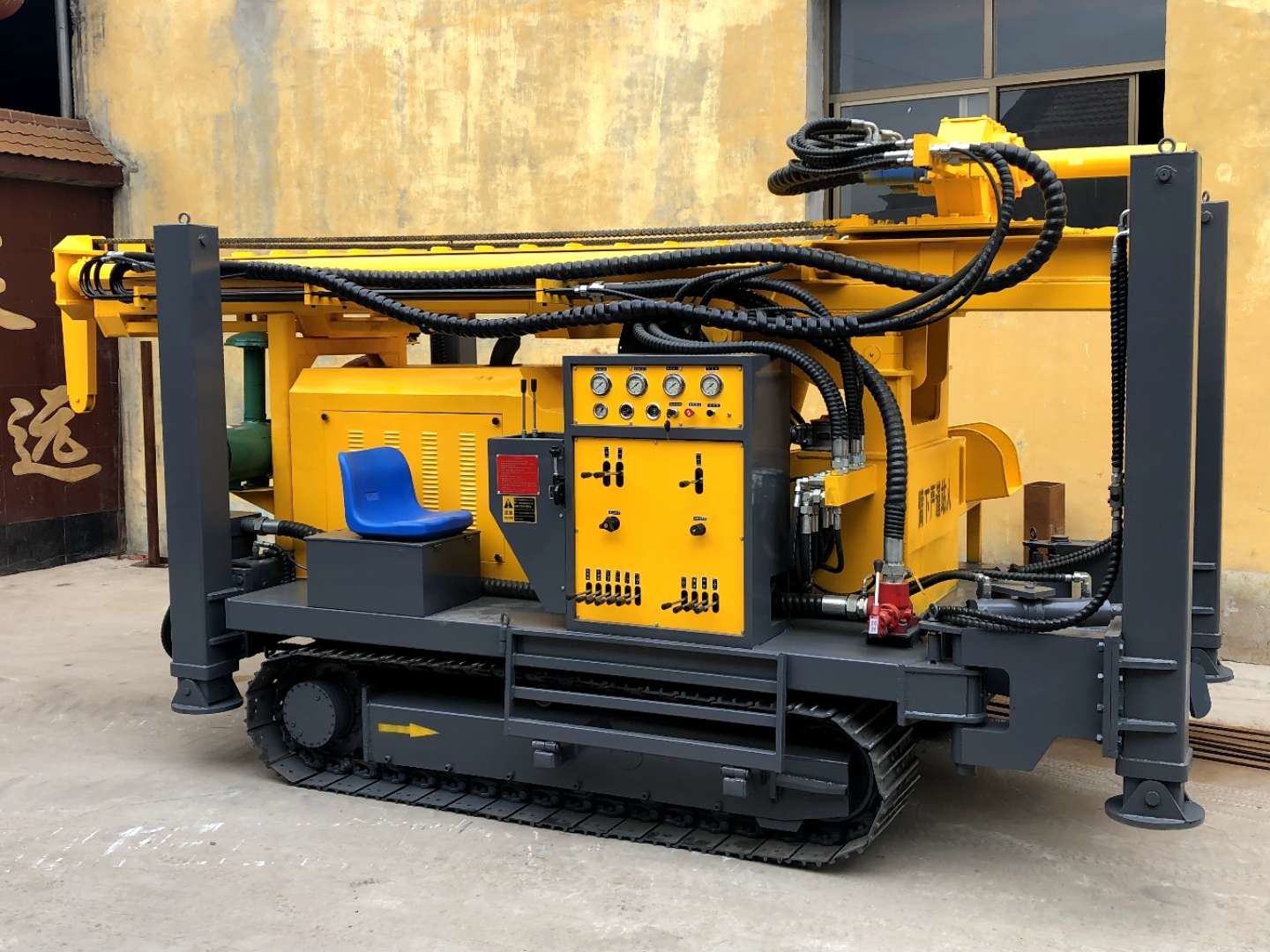

Industrial Borehole Water Well Drill Rig Fully Hydraulic For 350m Drilling 1



Company Profile

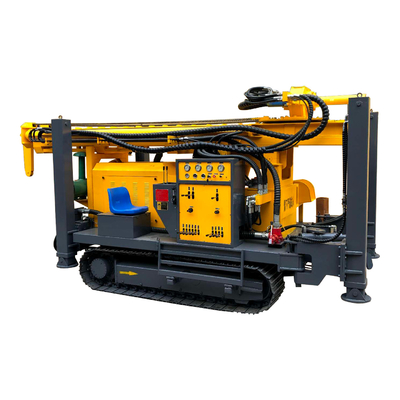

Industrial Borehole Water Well Drill Rig Fully Hydraulic For 350m Drilling 2

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Our drilling rigs are good in appearance, compact in structure, reliable in performance and flexible in operation, and is currently the first choice for medium-sized projects in the crawler mounted drilling rig market;
Our drilling rigs can drill in quaternary formations such as clay layer, sand layer, weathered rock, bedrock and so on. The drilling rig is mainly used for hydrogeological survey, drilling of industrial and agricultural water wells, etc., especially for the drilling of geothermal heating holes. It can be constructed by various techniques such as air drilling and foam rotary drilling.

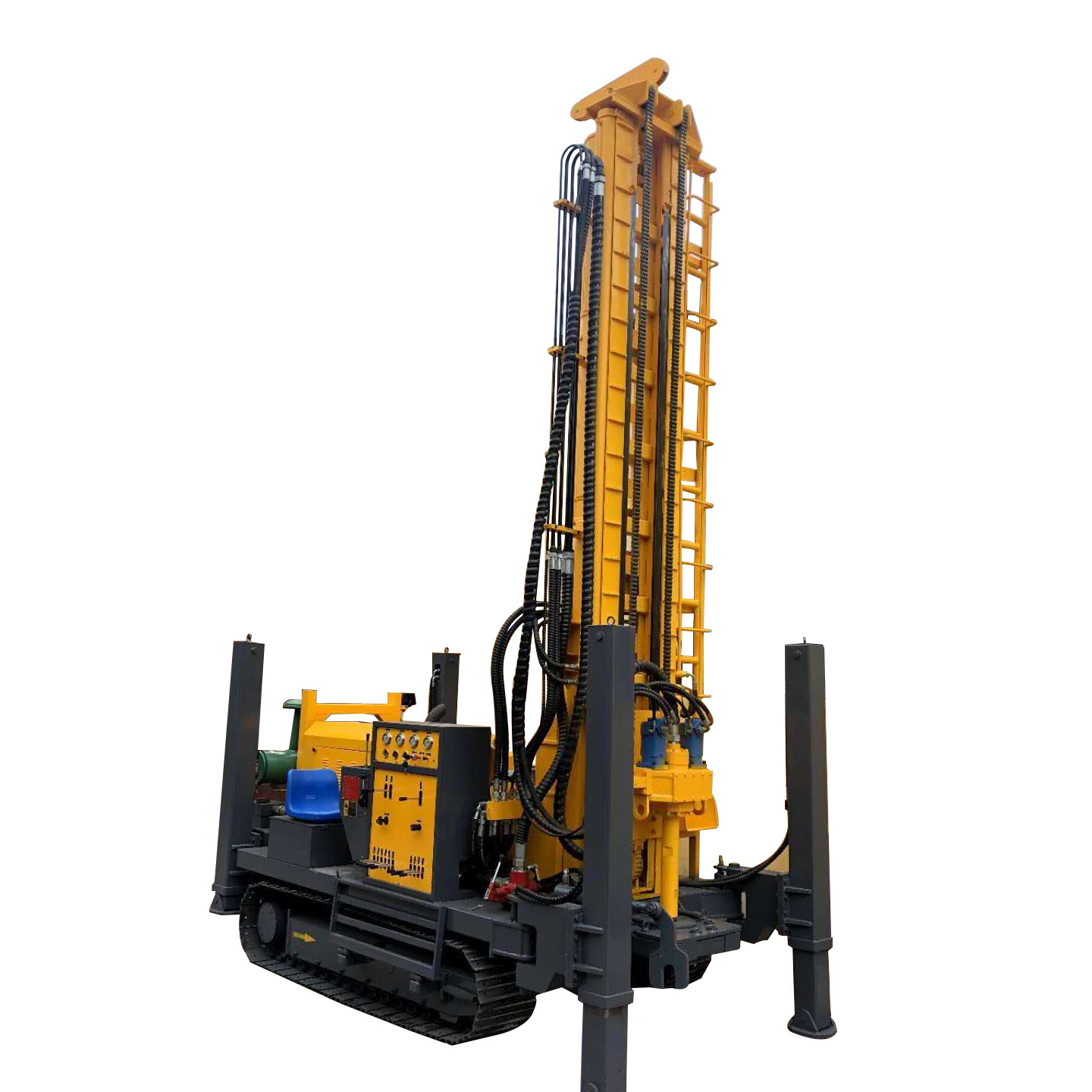

Industrial Borehole Water Well Drill Rig Fully Hydraulic For 350m Drilling 3



Industrial Borehole Water Well Drill Rig Fully Hydraulic For 350m Drilling 4
