100m Depth Exploration Drilling Rigs Mobile Core Mining Surface
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 100m Mobile Core Mining Surface Exploration Drilling Rigs XY-1
Keyword: Exploration Drilling Rigs XY-1
Depth: 100m
Hole Diameter: 75mm, 100mm
Chassis: Skid Type
Weight: 560kg
Highlight:

100m Exploration Drilling Rigs

,

Exploration Drilling Rigs Mobile

,

Exploration core drilling rigs

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: XY-1
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 100 sets/month
Product Description

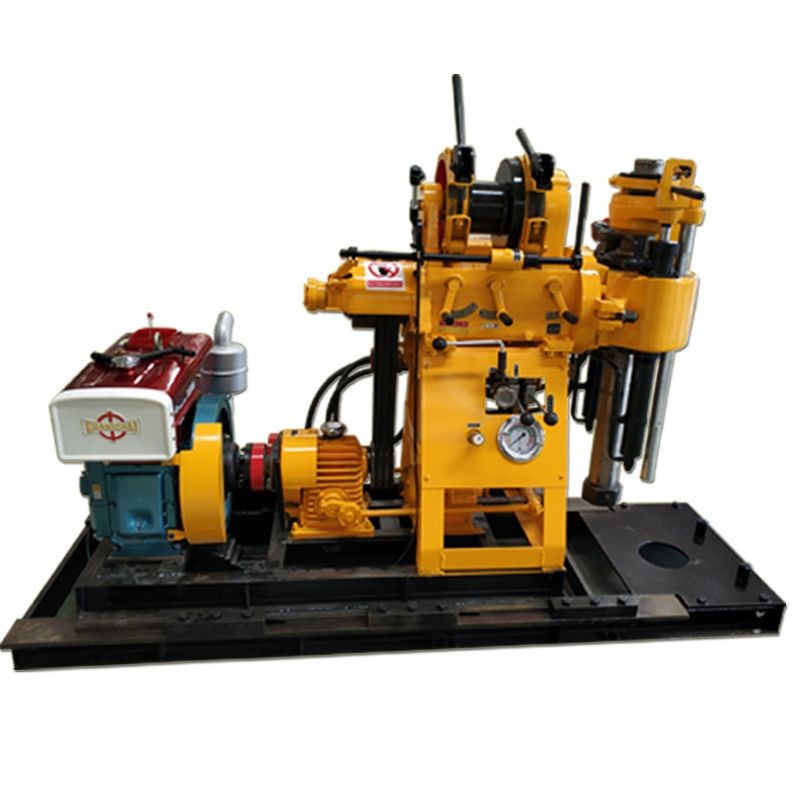

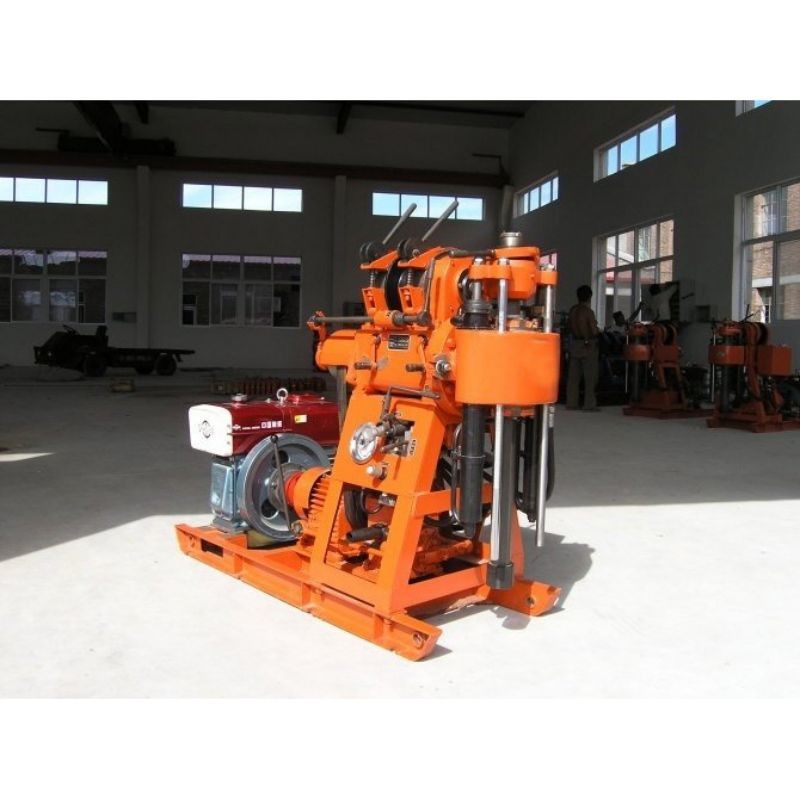

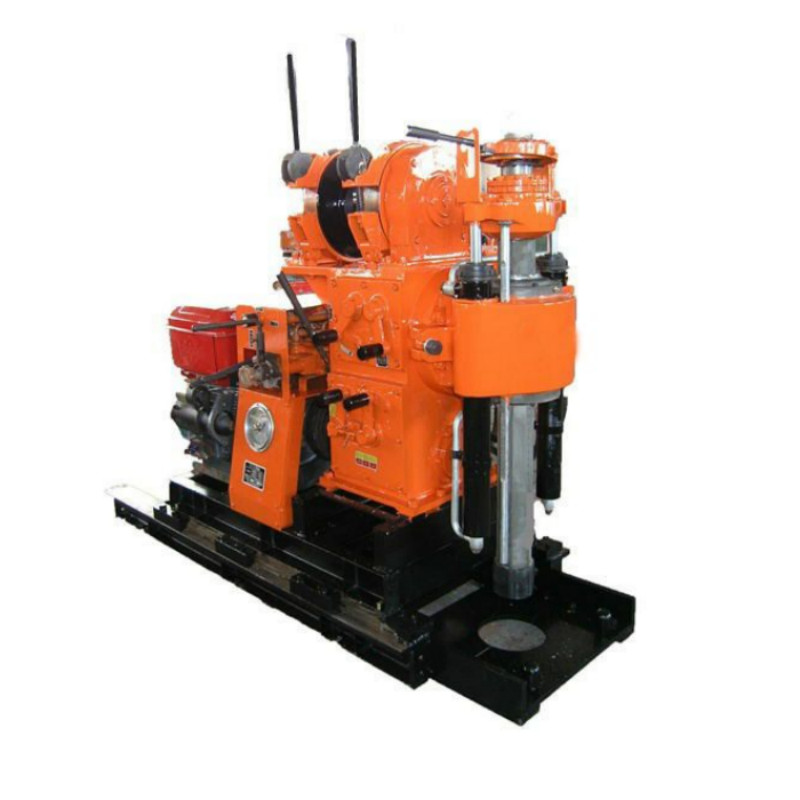

100m Mobile Core Mining Surface Exploration Drilling Rigs XY-1



Description:

XY-1 drill rig widely used in drilling family wells, drilling industry wells and drilling survey geological sampling, SPT service etc.
It can drill 100m depth.
Different layer condition will need different bits, soil or soft layer will need clay bit, or ally bit, drag bit, for hard rock will need diamond bit, tricone bit etc.
With hydraulic automatic feeding device, elevated drilling efficiency.
The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
Centralized handles, easy operation, safe and reliable.



Tehnical Parameter:



Model Specification XY-1
Drill Drilling depth 100m
Initial hole dia 110mm
Final hole dia 75mm
Drill rod dia 42mm
Angle range 75°-90°
Dimensions(L×W×H) 1640×1030×1440 (mm)
Weight(without power unit) 500kg
Swivel Head Spindle stroke 450mm
Spindle lifting capacity max 25KN
Hoist Max .lifting capacity(single rope) 10KN



100m Depth Exploration Drilling Rigs Mobile Core Mining Surface 0

Packing

100m Depth Exploration Drilling Rigs Mobile Core Mining Surface 1



Related products



100m Depth Exploration Drilling Rigs Mobile Core Mining Surface 2




Customer Visting

100m Depth Exploration Drilling Rigs Mobile Core Mining Surface 3

Company Profile

100m Depth Exploration Drilling Rigs Mobile Core Mining Surface 4

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
