Hydraulic Rotary Rock Drill Rig Crawler Type Multifunctional

1
MOQ
Negotiable
Price
Hydraulic Rotary Rock Drill Rig Crawler Type Multifunctional
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL-412 Mine Hydraulic Rotary Diesel Engine Crawler Rock Drill Rig
Keyword: Crawler Rock Drill Rig
Hole Dia.: 90-110mm
Drill Pipe: 60x2,000mm
Rotation Torque(Max.): 1,650 N.M
Rotation Speed: 70-150rpm
Feed Force: 15kN
Total Weight: 3,550kg
Transportation Dimension: 4,900x2,000x2,200mm
Highlight:

Rotary Rock Drill Rig

,

Hydraulic Rock Drill Rig

,

Crawler rotary drill rig

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE SGS
Model Number: GL-412
Payment & Shipping Terms
Packaging Details: 40HQ container
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

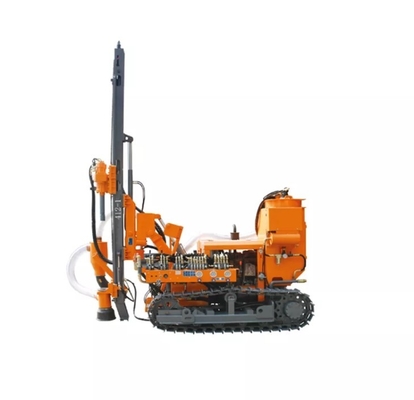

GL-412 Mine Hydraulic Rotary Diesel Engine Crawler Rock Drill Rig



Description



GL-412 drill rig operation platform , tramming components,hydraulic system, feed beam & rotary head are upgraded from the original 410F to optimize the functional capability of the drill rig.

Piston tramming motor greatly increases the work life of tramming mechanism, Upgraded operation platform can be controlled by one operator instead of two,to increase the work efficiency while lowering drilling cost.

GL-412drill equipped with double cycloidal hydraulic motor driven rotary head, large torque, fast rotation speed.

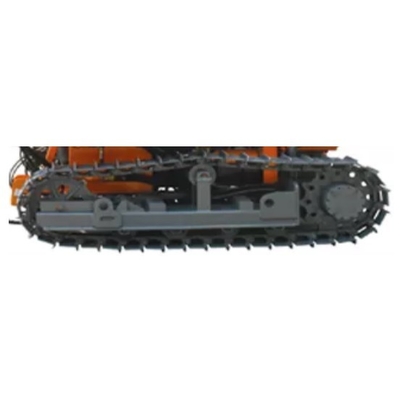

The GL-412 series standard configured with construction crawler and piston hydraulic motors driven, which contributed stronger traction force, more stable and reliable, capable to the complex geological and difficulty terrains of open-pit mines



Tehnical Parameter



Drill Pipe Sizes
φ60x2,000mm
Dril Pipe Dia.
φ90-110mm
Rotation Torque(Max.)
1,650 N.M
Rotation Speed
70-150rpm
Feed Force
15kN
Pull Up Force
25kN
Feeding Type
chain / cylinder
Tramming Speed(Max.)
2.5km/h
Gradient
25°
Total Weight
3,550kg/3,800kg
(L×W×H)Transportation Dimensions
4,900x2,000x2,200mm



Diesel Engine Specifications
Rig Model
Power
Rated Power
GL-412
Xichai 4DW91-50GBG3U
36.8 KW
GL-412-1
Yuchai YC4DK80
58 KW
(Dust collection system as standard equipment)





Company Profile

Hydraulic Rotary Rock Drill Rig Crawler Type Multifunctional 0


Glorytek Industry (Beijing) Co., Ltd. is an integrated corposration specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. Wee are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients; requirements.

Our factory covers an area of 250,000 square meters,construlction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine,testing equipments etc. over 200 sets and more than 600 employees.

Our main products are surface mining drilling rig, water well drilling rigs, core drilling rigs, hdd drilling rigs, foundation drilling rigs, downhole motor, air compressor, dth hammer, hammer bit, tricone bit, pdc drill bit, button bit, drag bit, drill pipes, shank adaptor, core bit, wireline coring tools, rock reamer, iluted reamer, barrel reamer, stabilizer, drill collar etc.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.







Packing



1. Drilling machine is bare packing.
2.The delivery time for machine normally be 15-20 days after receiving payment.
