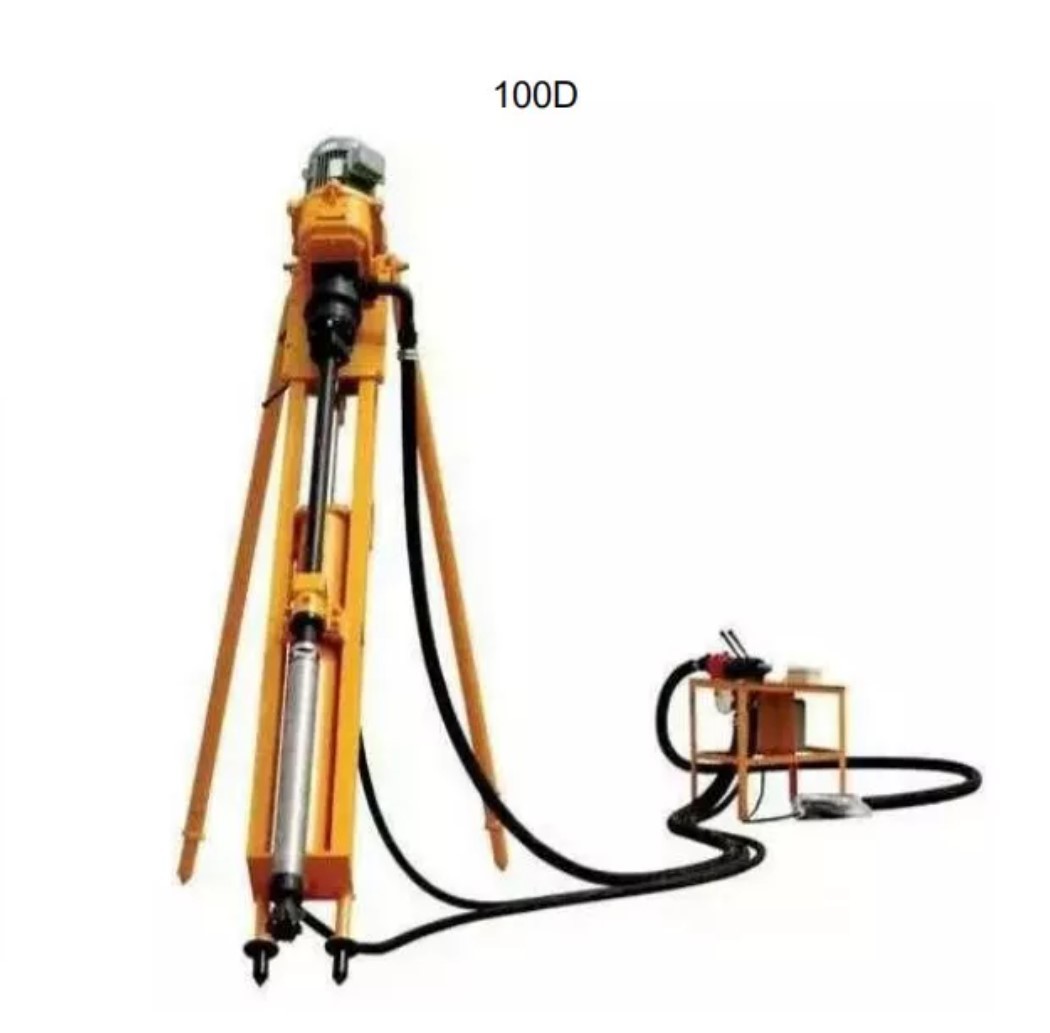

100D Mini DTH Drilling Low Pressure Rock Drill Rig for Slope Anchoring
Description:

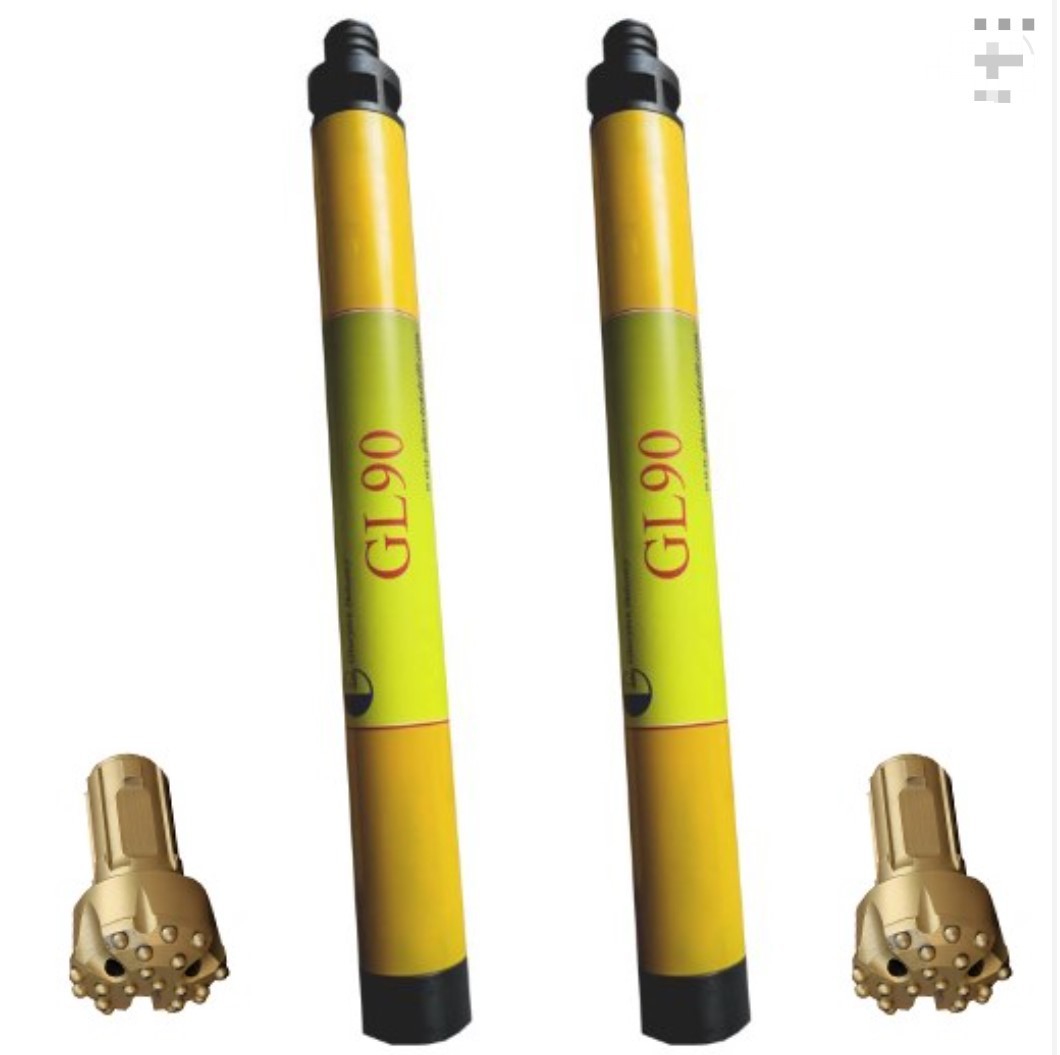

100B and 100D is a mini DTH drill rig that is lightweight and affordable. There are two models of this machine, one is pneumatic and one is electric. Both models can be used with low and medium pressure air compressors and drills. In addition to drilling rigs, we can also provide a complete set of air compressors and drilling tools.
Tehnical Parameter:
Technical Parameters
|
||
|
100B/D Low Pressure
|
100B/D Medium Pressure
|
Rock Rigidity
|
f =8-16
|
f =8-16
|
Hole Diameter
|
68-100mm
|
68-100mm
|
Hole Depth
|
20m
|
25m
|
Air Pressure
|
0.7-0.86MPa
|
1.0-1.4MPa
|
Air Consumption
|
9-12m3/min
|
9-12m3/min
|
Feed Length
|
1000mm
|
1000mm
|
Rotary Rate
|
110-160r/min
|
110-160r/min
|
Size(L x W)
|
2400 x 470mm
|
2400 x 470mm
|
Weight
|
195kg
|
195kg
|
Water Consumption and Water Pressure
|
8-12L/min,
>air pressure 0.1-0.2Mpa
|
8-12L/min,
>air pressure 0.1-0.2Mpa
|
Tunnel
|
high 2.5m~3m,width≥2.5m
|
high 2.5m~3m,width≥2.5m
|
Angle
|
any angle
|
Drilling Efficiency(m/h)
|
||||
|
Low Pressure
|
Medium Pressure
|
||
Hole Diameter(mm)
|
90
|
100
|
90
|
100
|
Air Consumption(m3/min)
|
9.8/(6.8)
|
7.4/10.4
|
9.8/(12)
|
106/(12)
|
Suitable Air Compressor
|
0.7-0.86Mpa
|
1.0-1.4Mpa
|
||
Hole Depth(m)
|
20
|
|
25
|
|
Drilling Efficiency(m/h)
|
7~9
|
5~8
|
10~15
|
9~14
|
Recommended Row Spacing(m)
|
3
|
3
|
3
|
3
|
Recommended Hole Distance(m)
|
3
|
3.5
|
3
|
3.5
|
