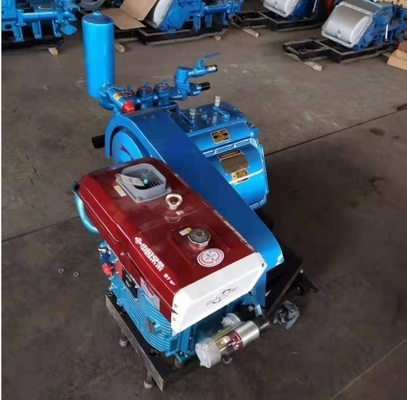

Bw250 Three Cylinder Drilling Mud Pump For Core Sample Drilling And Water Well Drilling
BW250 mud pump is mainly used to supply flushing fluid to the drilling well in core drilling or hole drilling. The pump can discharge not only clear water, but also thick mud. And for thespecialty of small external dimension, light weight, the pump is suitable for transportation in mountain.
BW250 type mud pump is a horizontal three cylinder single acting reciprocating piston pump, which has 4 bore and eight gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application,the deepest can be used with 700meters driling rig.
It is used in geological drilling to supply flushing fluid (mud or clean water) to cool drilling tools to dilute clay, mud and circulation. It is also used to supply flushing fluid when drilling downhole in coal mine tunnel drilling rigs. Cooling drill for chip removal.
| Type: BW250 | Horizontal three cylinder reciprocating single acting piston pump | ||||||||
| Cylinder Liner Dia (mm) | 80 | 65 | |||||||
| Piston Stroke (mm) | 100 | ||||||||
| Theoretical Flow Rate (L/min) | 250 | 145 | 90 | 52 | 166 | 96 | 60 | 35 | |
| Rated Pressure (MPa) | 2.5 | 4.5 | 6 | 6 | 4 | 6 | 7 | 7 | |
| Strokes Per Minute | 200 | 116 | 72 | 42 | 200 | 116 | 72 | 42 | |
| Input Power (kW) | 20( diesel engine) | ||||||||
| Overall Dimension(L×W×H) (mm) | 1000×995×650 | ||||||||
| Weight (kg) | 760 | ||||||||

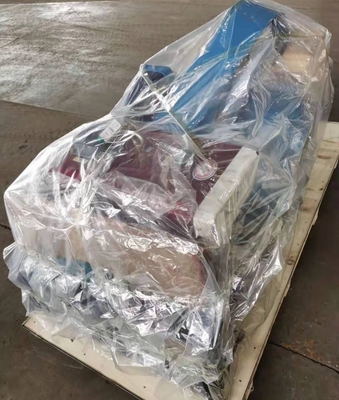

Packing: Standard Packing
Delivery: Normally 10 days after your down payment.
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order
