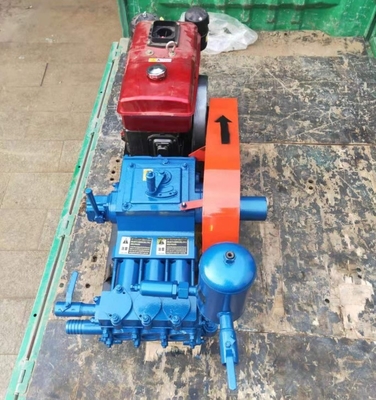

Drilling Mud Pump BW160 Three Cylinder 7.7kw Diesel Engine Driven

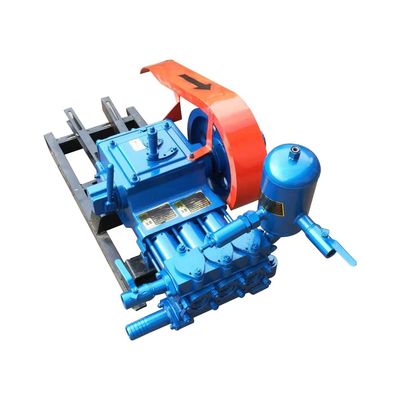

The BW160 drilling mud pump is a horizontal three- cylinder single-acting reciprocating piston pump, which is mainly used to supply flushing fluid to the borehole during drilling process.
The mud or clean water should not have corrosive chemical impurities to the pump metal and oil resistance rubber while discharging. The pump has a relatively uniform flow rate and small pressure fluctuations.
It adopts a two-speed variable speed structure to obtain two displacements and corresponding two pump pressures. The pump body is made of aluminum alloy, so the overall size is small , light weight and good decomposability, which is convenient to carry in mountain area.
Due to the continuous improvement of the mud pumps produced by our factory, the content introduced here may be slightly different from the actual situation, please pay attention to it when using it.
| BW160 Drilling Mud Pump | ||
| Type | Horizontal three cylinder reciprocating single acting piston pump | |
| Cylinder Liner Dia (mm) | 65 | |
| Piston Stroke (mm) | 70 | |
| Speed level | I | II |
| Strokes Per Minute | 245 | 190 |
| Pressure (MPa) | 1.5 | 2.0 |
| Flow Rate(L/min) | 160 | 130 |
| Power (kW) | 7.7 | |
| Suction pipe dia.(mm) | φ51 | |
| Drain pipe dia.(mm) | φ25 | |
| V-belt section | 1448mm | |
| Input speed | 754r/min | |
| Power | ||
| Type | Diesel Engine | Motor |
| Model | ChangchaiR190A ( water cooling) | Y132S-4-B3 |
| Rated power | 7.7KW | 5.5KW |
| Rotating Speed | 2300r/min | 1440r/min |
| Weight (kg) | 200kg | |
| Overall Dimension(L×W×H) (mm) | 1200x550x580 | |
Packing: Standard Packing
Delivery: Normally 10 days after your down payment.
