Water Well Drill Rod 76mm O.D 3m Per Piece With 2 3/8reg Thread
As a common downhole drilling tool, drill pipe is made of alloy steel, with joints at both ends, and friction welding is used between the joint and the pipe body. It is used to deepen the wellbore, transmit torque, and form a channel for drilling fluid circulation.
We are producing a completed series of drill rod size from 2 3-8" to 6 5-8", with the thread of 2 3-8 REG to 6 5-8 REG, 2 3-8 IF to 5 1-2 IF, NC23 to NC 77, 3 1-2FH to 6 5-8 FH, all in accordance with API SPEC 5DP or SY/T5561-2008 standard.
The pipe body steel grade are R780, E75, G105, S135, the joint steel grade are 35CrMo, 42CrMo, 4137H with thermal refining, the thread have been hardening and nitrogen treated to get the best quality.
| Size(inch) | Outside Diameter | Wall Thickness | thread | length | |
| inch | mm | mm | mm | mm | |
| 3 | 3 | 76 | 5.5 | 5.5 | 1000-6000 |
Water Well Drill Rod is mainly used in various drilling constructions such as gas drainage (mining) holes, exploration and drainage holes, and grouting holes in coal mines with good underground formation conditions. It can also be used in drilling construction in mining, geology, hydropower and other industries.
The rod has high strength and is suitable for both conventional drilling and impact rotary drilling.
1. The Water Well Drill Rod body is welded by friction welding process, the overall mechanical performance of the drill pipe is good, and the service life is long.
2. The Water Well Drill Rod joint has high thread strength and good anti-stick performance.
3. Hardness and wear resistance combined alloy stell,supplied by national top level specialsteel manufacturer
4. Joint of pipe upset forged,Better wear resistance due to increased hardness
5.Joint and pipe are friction-welded,and heat-treated the end-pieces for optimum durability.
6. pipe chemistries are matched to our quench and temper heat treatment processes achieving excellent impact values
IU:Internal upset;EU:External upset

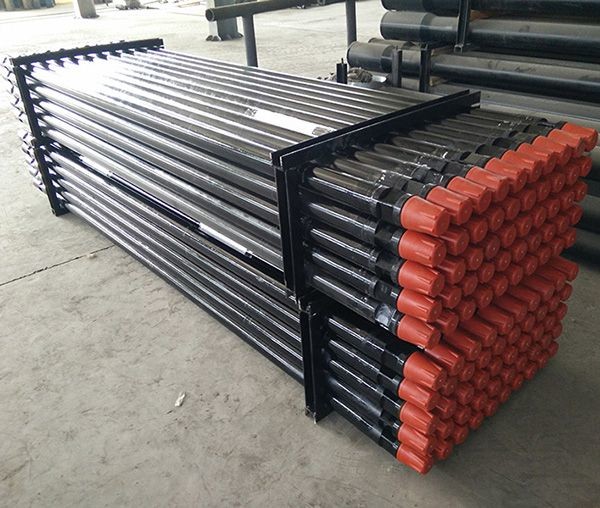

Packing: The Water Well Drill Rod is normally packed by wooden boxes, or steel frame.
Delivery: Normally 7-10 days after down payment.
Shipping method: by sea or by train.
All kinds of products are inspected according to API standard, ensure the product quality stable and reliable.
Glorytek has equipped with magenta test, ultrasonic test, thread test, right alignment test, hardness test and so on inspection and testing equipment, to guarantee each process under surveillance on paper.
Glorytek with advanced modern laboratory of materials, chemical composition analysis. Chemical properties test and metallographic analysis, so as to ensure the reliability of the physical-chemical properties of the product
Glorytek owns a professional qualifications, deepen the product quality inspection team with API standard.
