Name: Reciprocating Horizontal Mud Pump , BW 160 Mud Pump Single Acting Piston
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: BW160-10
Price: 42,250.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: BW160-10 Horizontal Three-Cylinder Reciprocating Single-Acting Piston Drilling Mud Pump For Borehole Drilling

Keyword: Three-Cylinder Drilling Mud Pump

Model Number: BW160-10

Flow Rate: 160l/min

Cylinder Liner Dia(mm): 70

Piston Stroke(mm): 70

Highlight:

Reciprocating Horizontal Mud Pump

Single Acting Horizontal Mud Pump

BW 160 Mud Pump

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Model Number: BW160-10

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

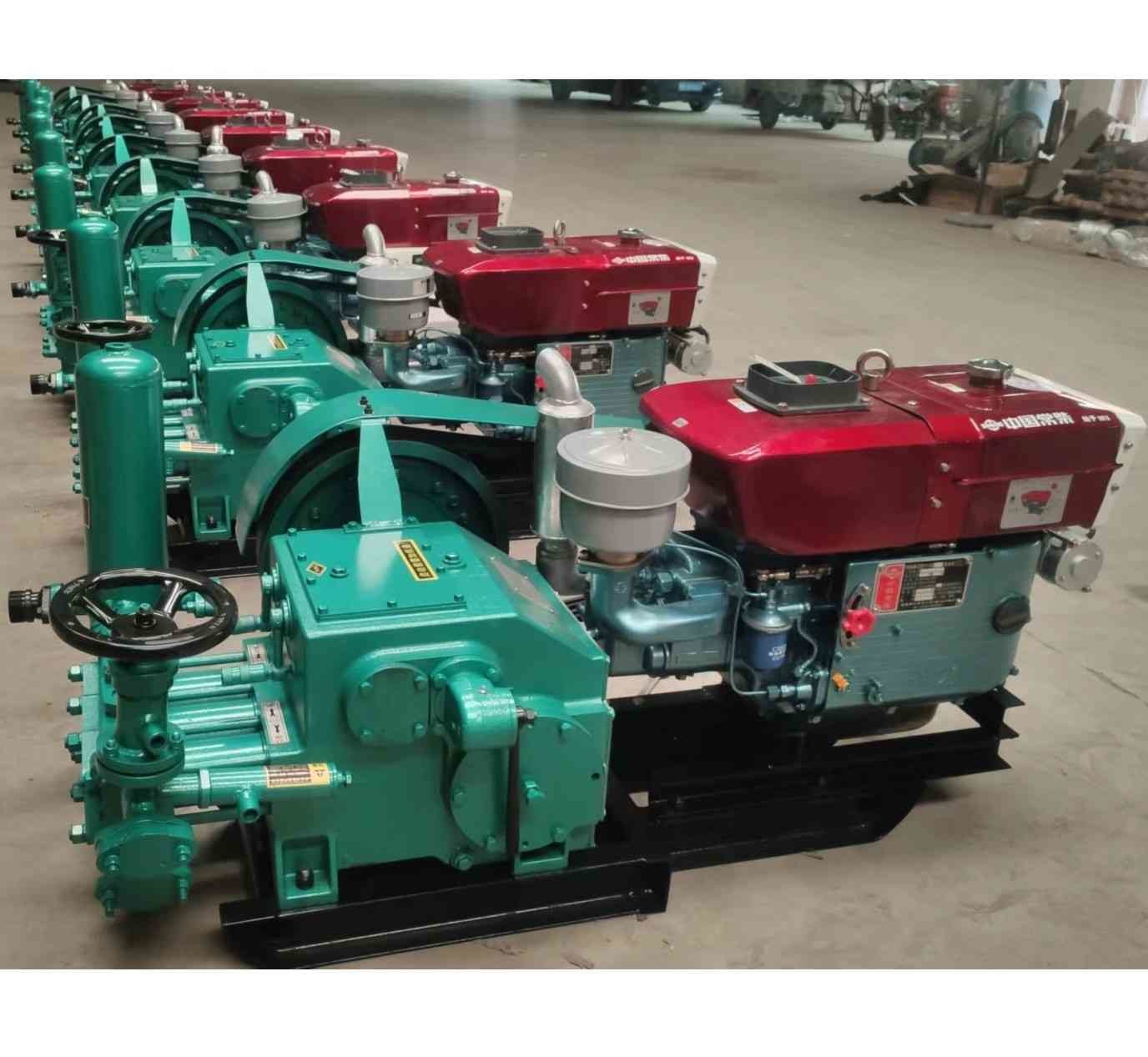

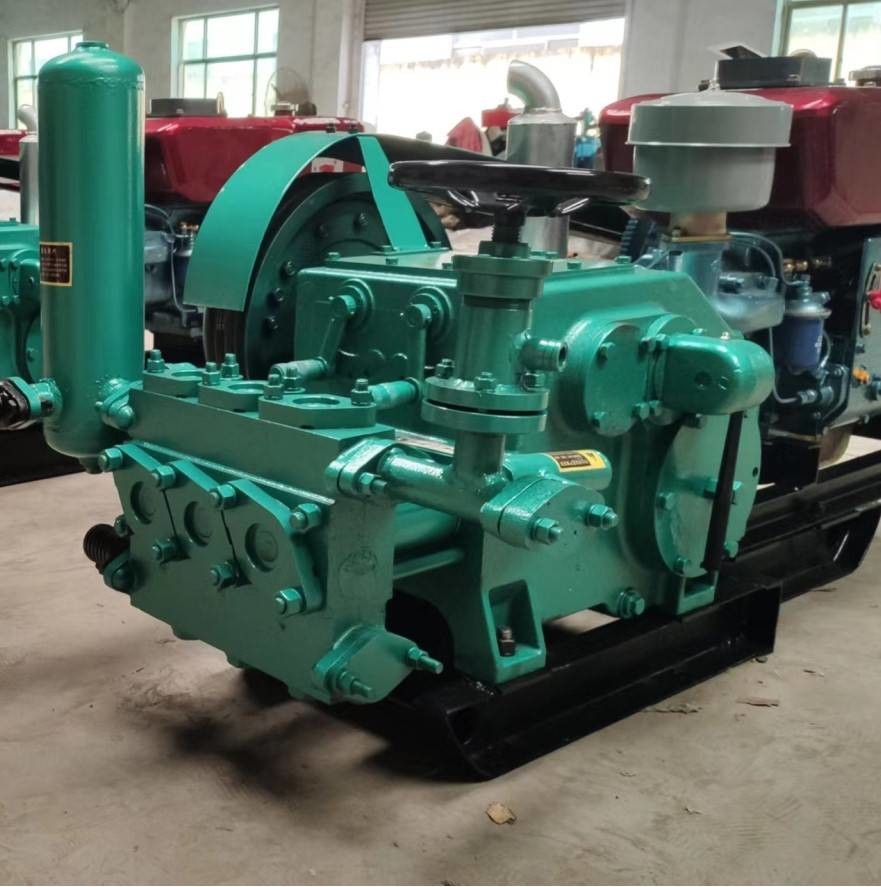

Reciprocating Horizontal Mud Pump , BW 160 Mud Pump Single Acting Piston

Product Description

BW160-10 Horizontal Three-Cylinder Reciprocating Single-Acting Piston Drilling Mud Pump For Borehole Drilling

Description

BW160-10 horizontal three-cylinder reciprocating single-acting piston pump is widely used in geological drilling and borehole drilling projects. It can also support geological engineering construction and foundation treatment of low and medium pressure.

It has 4 kinds of flow rate and pressure. You can adjust the displacement according to the drilling depth and drilling hole diameter. It can be used for a drill rig, which can drill up to 400m deep.This mud pump can be driven by hydraulic motor, electric motor or diesel engine, which we can supply as per your requirments.

Technical Parameter

Type: BW160/10	Horizontal three cylinder reciprocating single acting piston pump
Cylinder Liner Dia (mm)	70
Piston Stroke (mm)	70
Theoretical Flow Rate (L/min)	160	107	67	44
Rated Pressure (MPa)	2.5	4	6.5	10
Strokes Per Minute	200	132	83	55
Input Power (kW)	16.2(diesel engine) or 11(motor)
Overall Dimension(L×W×H) (mm)	1450×745×970
Weight (kg)	430

Features:
1. low energy consumption
2. flexible operation
3. Good durability
4. good decomposability
5. easy relocation.

Application

1.BW mud pump is widely used for grouting and mud jacking in engineering construction.
2.BW mud pump have four gear shifts.Output and drilling depth are adjustable,so it can be used to grout cement slurry or equipped with drilling machine.
3.BW mud pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration.

Packing

Packing: Standard Exporting Packing
Delivery: Normally 10-15 days after your advanced payment.
