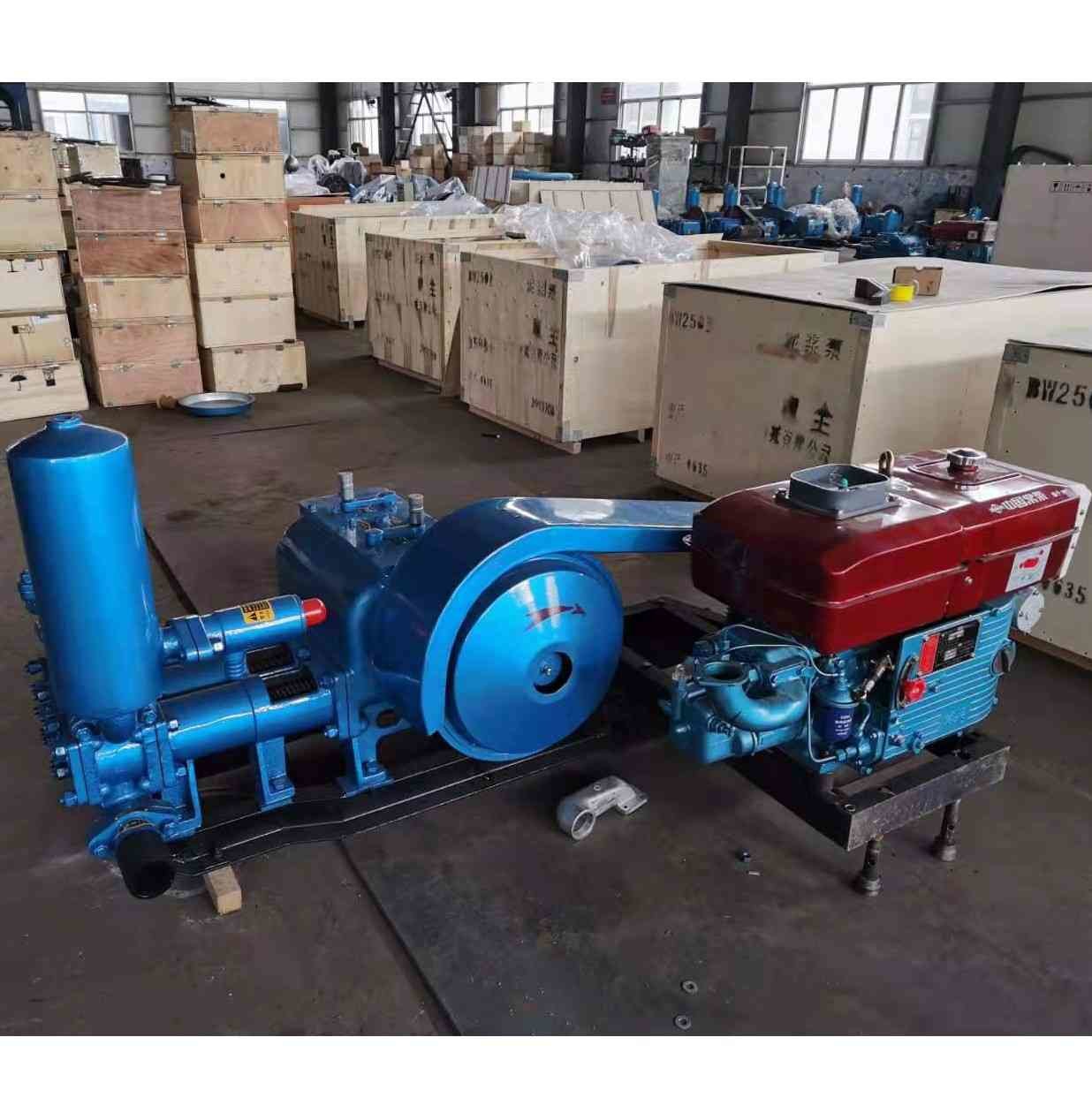

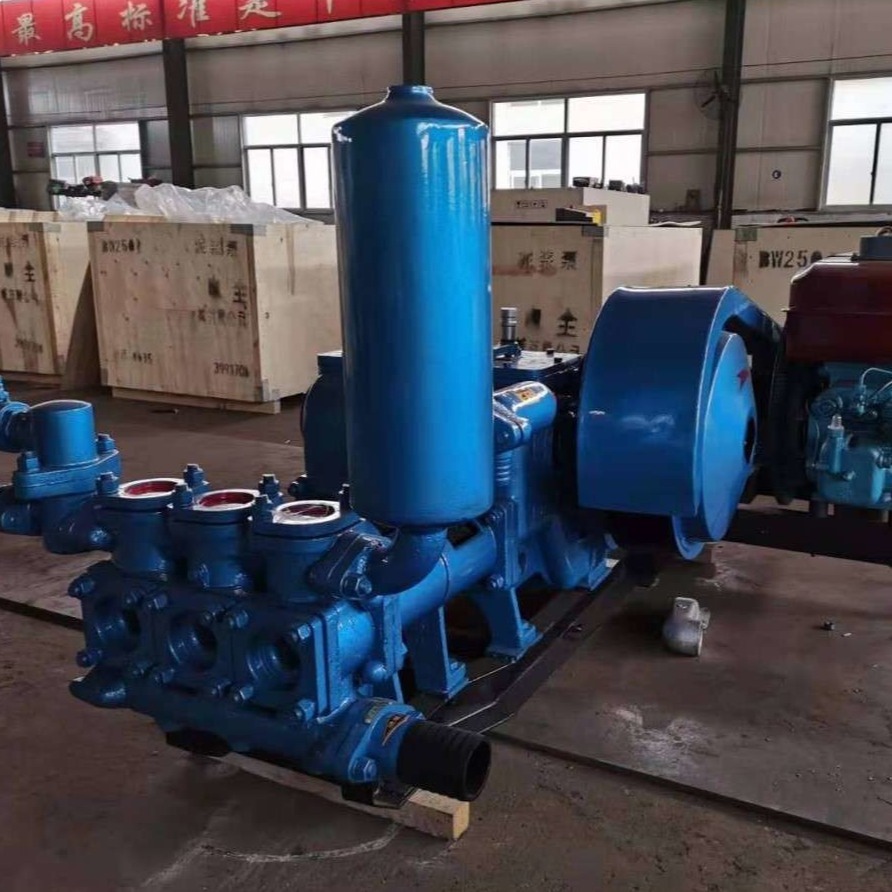

BW250 Three-Cylinder Drilling Mud Pump For Geological Exploration and Borehole Drilling
BW250 horizontal three cylinder reciprocating single acting piston pump is widely used for geological exploration, borehole drilling, grouting and mud jacking in engineering construction.
BW250 mud pump have four gear shifts. The output is adjustable, so it can be equipped for different machine to support different drilling projects.
Now we have exported BW mud pump for our worldwide clients who are specialized in projects for railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration, etc.
| Type: BW250 | Horizontal three cylinder reciprocating single acting piston pump | ||||||||
| Cylinder Liner Dia (mm) | 80 | 65 | |||||||
| Piston Stroke (mm) | 100 | ||||||||
| Theoretical Flow Rate (L/min) | 250 | 145 | 90 | 52 | 166 | 96 | 60 | 35 | |
| Rated Pressure (MPa) | 2.5 | 4.5 | 6 | 6 | 4 | 6 | 7 | 7 | |
| Strokes Per Minute | 200 | 116 | 72 | 42 | 200 | 116 | 72 | 42 | |
| Input Power (kW) | 20( diesel engine) | ||||||||
| Overall Dimension(L×W×H) (mm) | 1000×995×650 | ||||||||
| Weight (kg) | 760 | ||||||||
Features:
1. BW mud pump is horizontal triplex grout pump with high stability and high pressure.
2. Eight gear shift to adjust the flow, large output capacity, simple operation.
3. High quality pump parts, less wearing parts, long service life, low construction cost.
4. Fast suction-discharge speed, high pump efficiency.
5. Less noise and dust, environmental operation.
Packing: Standard Exporting Packing
Delivery: Normally 10-15 days after your advanced payment.
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
We believes that good quality can give us survival, thus we only provide you top products.All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment.Every machine will be strictly examined before delivery.
