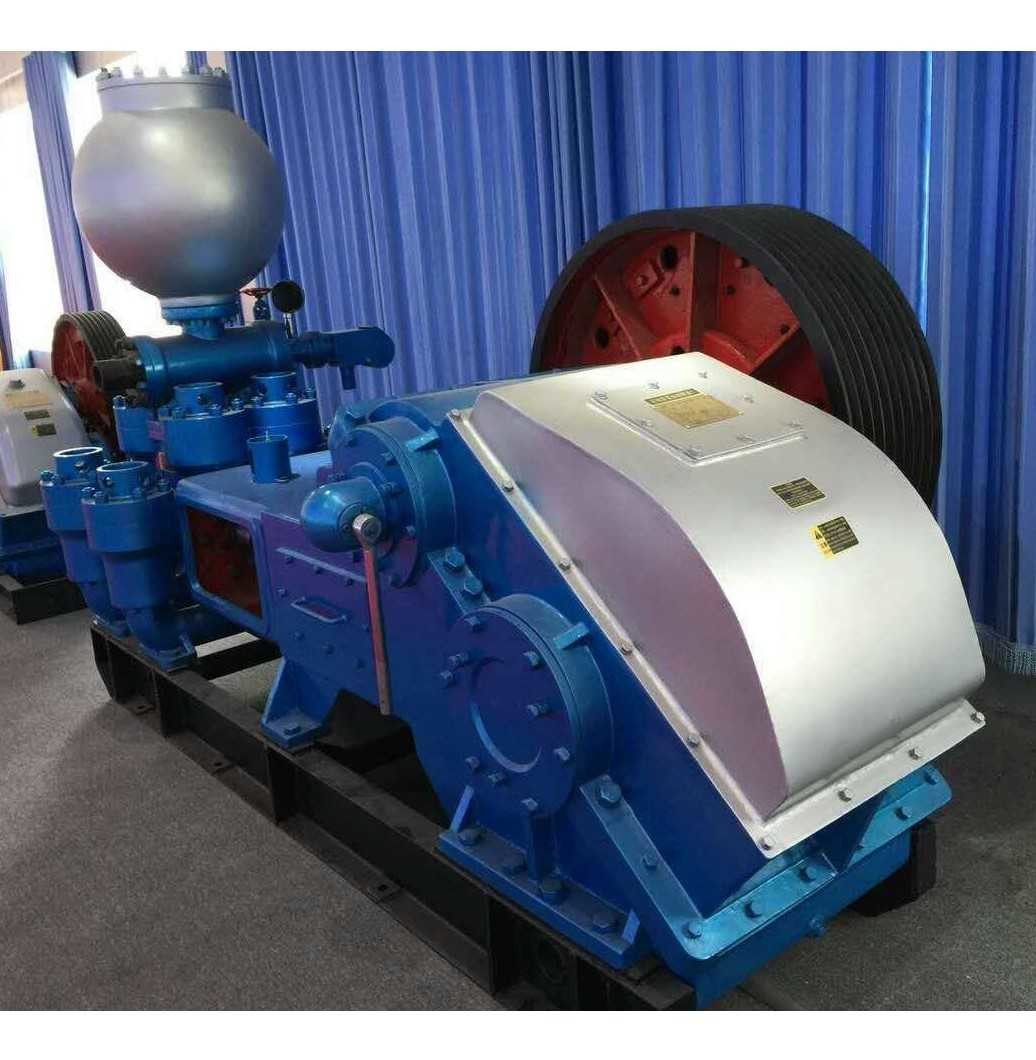

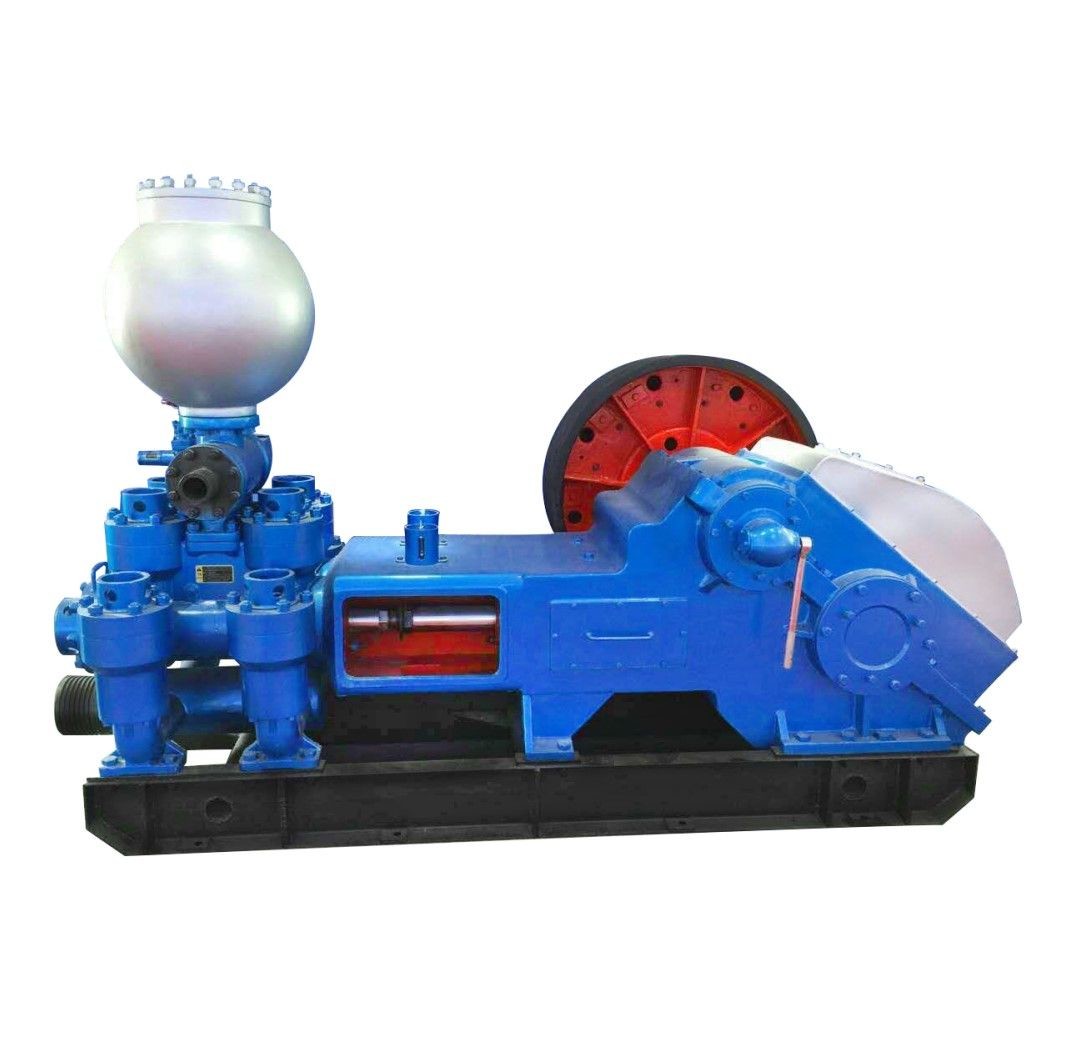

BW1200 Horizontal Reciprocating Double Action Piston Drilling Mud Pump With Double Cylinders
BW1200 Double-Cylinder Drilling Mud Pump is one model of the BW series mud pump we can supply. Besides this model, we can also supply: BW90/3, BW100/5, BW120/3, BW150/1.5, BW150/3.5, BW160/10, BW200/4, BW240/10, BW250, BW320, BW150/13, BW400/10, BW450/5, BW500/10, BW600/10, BW750, BW850/2, BW850/5, BW1200/7 Etc.
BW series mud pump is widely used in mining, drilling, coal, railway, highway, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement works. It has advantages of advanced product design, reasonable structure, high pressure, flow, multi-file variable, energy saving, light volume, efficiency, plant life, safe operation, easy maintenance.
Type: BW1200/7 | Horizontal double cylinder reciprocating double action piston pump | |
Cylinder Liner Dia (mm) | 160 | 150 |
Piston Stroke (mm) | 270 | |
Theoretical Flow Rate(L/min) | 1200 | 1000 |
Rated Pressure (MPa) | 7 | 8 |
Strokes Per Minute | 70 | |
Input Power (kW) | 185 | |
Overall Dimension(L×W×H)(mm) | 3045×1440×2420 | |
Weight (kg) | 7200 |
Features
1,Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, motor, diesel engine
2,The design on the use of new ideas, new structure, new materials, new technology;
3,Horizontal pump to improve standardization, seriation, generalization,crankshaft, connecting rod body, the cross head, the pump head and some other components related to serialization and the universal, the other components of the reduced species
4,Loss of long life, high reliability
Packing: Standard Exporting Packing for BW1200 Double-Cylinder Drilling Mud Pump
Delivery: Normally 10-15 days after your advanced payment.
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
We believes that good quality can give us survival, thus we only provide you top products.All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment.Every machine will be strictly examined before delivery.
