Home /Products/Drilling Mud Pump/F Series Horizontal 3-Cylinder Single Acting Piston Drilling Mud Pump For Oilfield Drilling projects

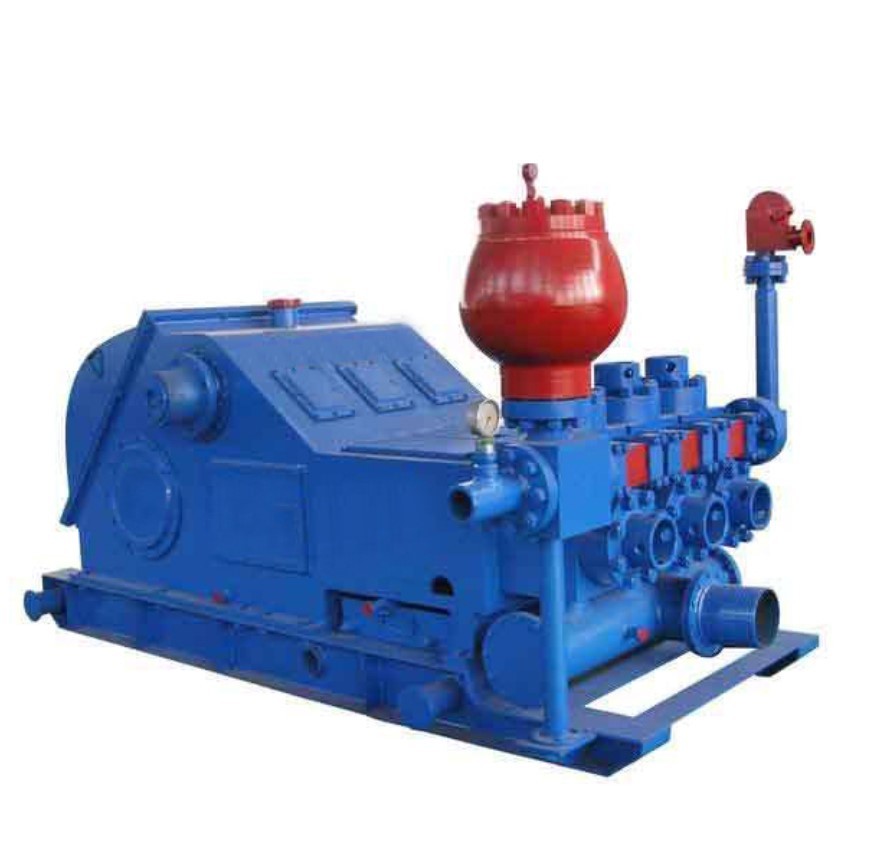

F Series Horizontal 3-Cylinder Single Acting Piston Drilling Mud Pump For Oilfield Drilling projects

1pc
MOQ
Negotiable
Price
F Series Horizontal 3-Cylinder Single Acting Piston Drilling Mud Pump For Oilfield Drilling projects
Features Gallery Product Description Request A Quote
Features
Specifications
Name: F Series Horizontal 3-Cylinder Single Acting Piston Drilling Mud Pump For Oilfield Drilling Projects
Keyword: F Series Drilling Mud Pump
Model Number: F1000
Type: Horizontal 3-cylinder Single Acting Piston Pump
Rated Input Power(kw/hp): 1193/1600
Rated Stroke (stroke/min): 120
Highlight:

Oilfield Drilling Mud Pump

,

Single Acting Piston Mud Pump

,

Single Acting Drilling Mud Pump
Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Model Number: F Series
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100sets/month
Product Description

F Series Horizontal 3-Cylinder Single Acting Piston Drilling Mud Pump For Oilfield Drilling Projects



Description



F Series Drilling Mud Pump is applicable to the requirement of high pump pressure in oil field and high displacement technology of well drilling with its solid and compact structure, small volume and outstanding operation performance.



F Series Drilling Mud Pump has long stroke maintaining operation at lower frequency resulting in enhancing the performance of giving water effectively and prolonging the lifetime of the consumable hydrokinetic parts, the air-suction kit is advanced in structure and reliable at operation to reach the optimized absorbing target of air suction into line pipe.



F Series Drilling Mud Pump powering side adopts the combined lubrication id forced and flashing lubrication featured with reliable lubrication and adding the operation lifetime of powering part.



This series pump is widely used in oil fields and other lines of industrial and mining enterprises, operation of drilling well and well repairing in oil field and other lines of industrial and mining enterprises, operation of drilling well and well repairing etc.

Technical Parameter



Type Horizontal 3-cylinder single acting piston pump Gear type Herringbone gear
Rated input power(kw/hp) 738/1000 Gear Ratio 4.207:1
Rated stroke (stroke/min) 140 Lubrication Forced and flashing
Stroke length(mm/min) 254/ 10" Valve cavity API-6#
Connection dimension of suction side 12" ( 305mm) Connection dimension of discharge side 5" Flange 5000psi
The weight of main machine
(kg/pound)		 18790/41425 Profile dimensions(LxWxH) 4120x2260.6x1778mm
163 2/8" x89" x70"
Stroke/min Liner Size (mm/inch), 170 160 150 140 130 120 110
Pressure Rating (Mpa psi)

16.6

(2140)

18.8

(2725)

21.4

(3100)

24.5

(3555)

28.4

(4125)

33.4

(4840)

34.5

(5000)
KW HP Displacement: L/S
150 799 1071 43.24(685) 38.30(607) 33.66(533) 29.33(465) 25.29(401) 21.55(341) 18.10(287)
140 746 1000 40.36(639) 35.75(566) 31.42(498) 29.37(434) 23.60(374) 20.11(318) 16.90(268)
130 692 929 37.47(594) 33.20(526) 29.13(462) 25.42(403) 21.92(347) 18.67(296) 15.69(248)
120 639 857 34.59(548) 30.64(485) 26.93(427) 23.46(372) 20.23(320) 17.24(273) 14.48(229)
110 586 786 31.71(502) 28.09(445) 24.93(391) 21.51(341) 18.54(294) 15.80(250) 13.28(210)
100 533 714 28.83(457) 25.53(404) 22.44(355) 19.55(310) 16.86(267) 14.36(227) 12.07(191)
1     0.2883(4.569) 0.2553(4.047) 0.2244 (3.557) 0.1955(3.099) 0.1686(2.672) 0.1436 (2.277) 0.1207(1.913)





Features



1. The pump has features of advanced structure, small volume, reliable operation, easy maintenance.

2. The cylinder is made of alloy steel forgings, and the three cylinders of each pump are interchangeable.

3. The suction valve and discharge valve of F1300 and F1600 are interchangeable.

4. In order to enhance its corrosion resistance, the cylinder surface is processed by chemical nickel plating.

5. The design of straight-through cylinder valve structure, reduced the volume of the hydraulic cylinder and increased the volumetric efficiency.

6. The hydraulic cylinder, cylinder liner, piston, valve body, valve seat, valve spring, seal, valve cover, cylinder head of F1300 and F1600 are interchangeable.


Packing



Packing: Standard Exporting Packing for F Series Drilling Mud Pump
Delivery: Normally 10-15 days after your advanced payment.
