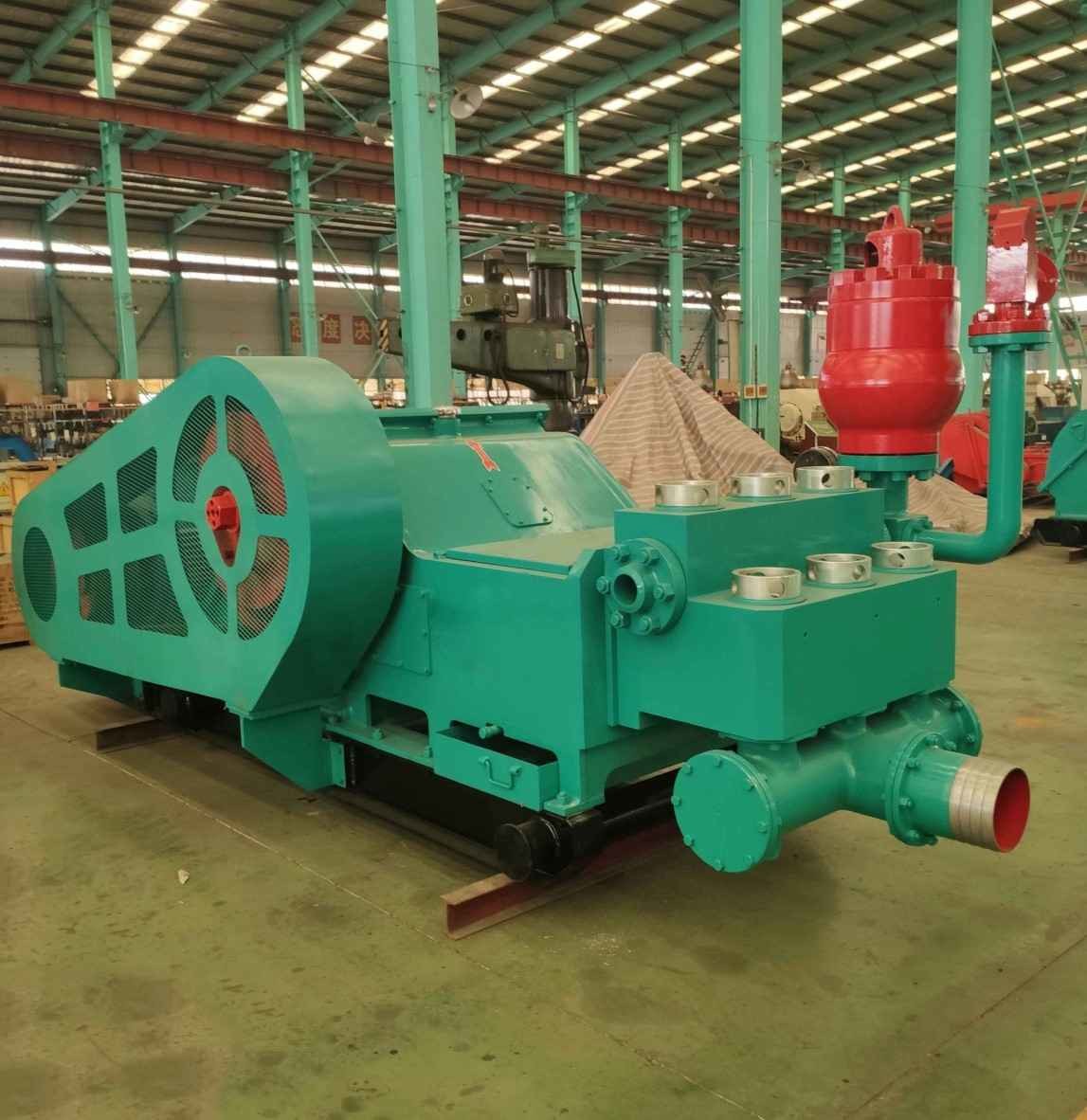

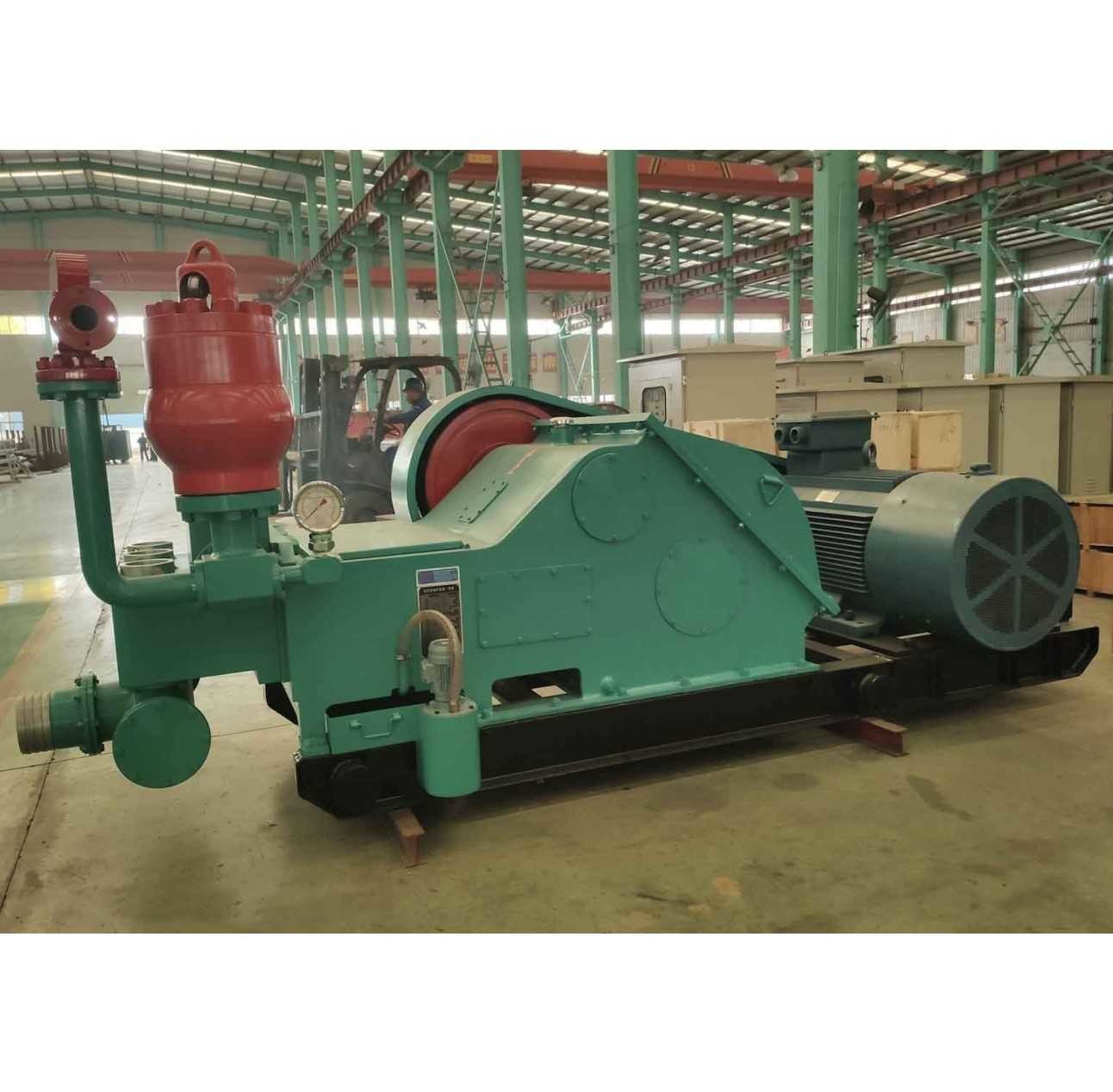

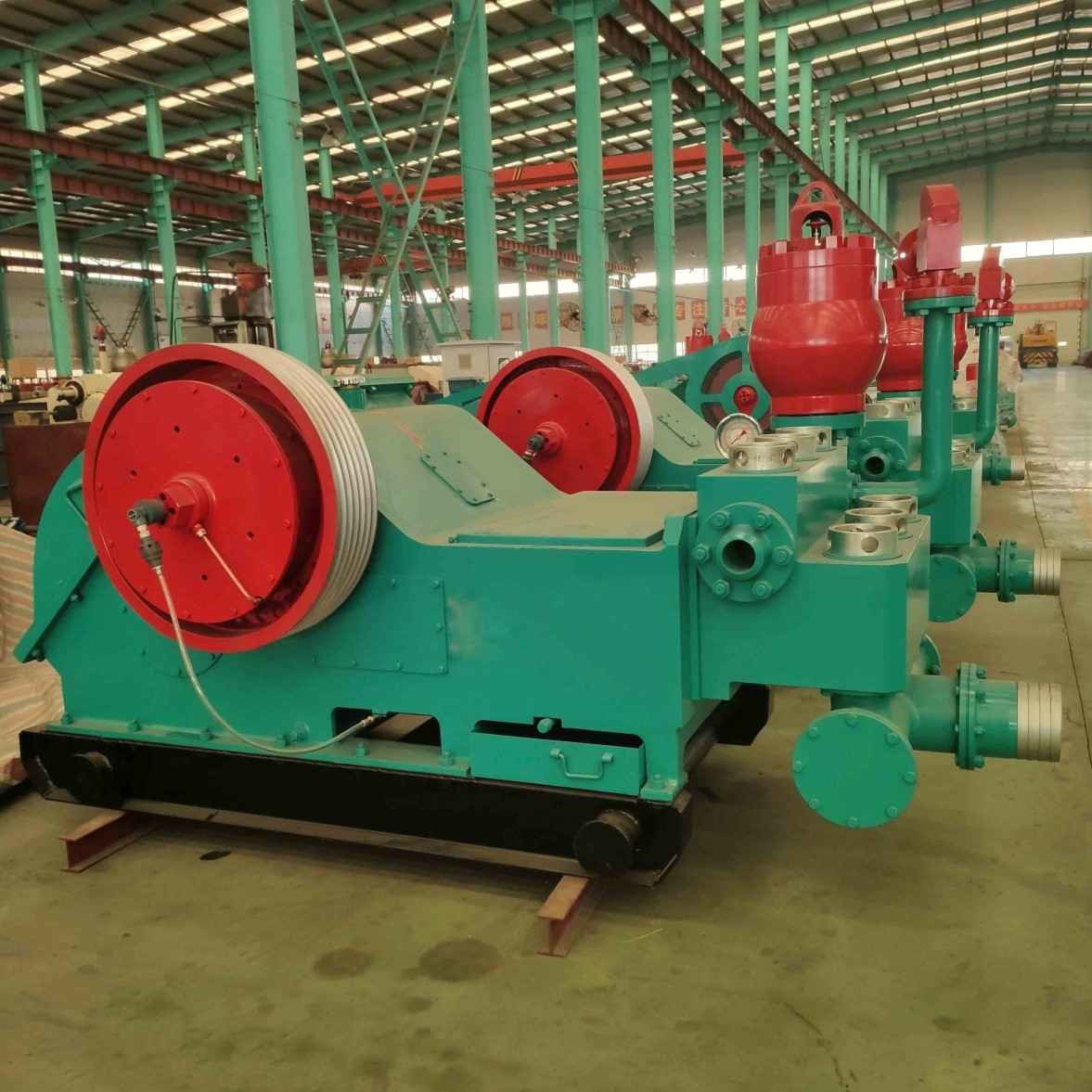

3NB-260 Single Action Triplex Back And Forth Piston Drilling Mud Pump For Borehole HDD Oilfield Projects
The 3NB-260 mud pump is designed as a horizontal triplex single acting piston pump. This series of mud pumps are widely used in drilling, cementing, workover and other operations in petroleum, water wells, geothermal, coalbed methane, shale gas, coal exploration, frozen wells and other industrial and mining enterprises.
3NB-260 mud pump assists drilling, cementing, workover and other operations by conveying mud, clay glue, mortar and other media. The characteristics of this series of mud pumps are: advanced technology, structural structure, stable performance, good suction, long service life of wearing parts, good interchangeability, easy maintenance, etc.
| Technical Specifications | |||||||
| Model | 3NB-260 | ||||||
| Piston diameter (mm) | 110 | 120 | 130 | 140 | 150 | 160 | |
| Displacement (L/S) | 11 | 13 | 15.4 | 18 | 20.5 | 23.4 | |
| Pressure (Mpa) | 15.5 | 13.1 | 11 | 9.5 | 8.3 | 7.3 | |
| Input speed (r/min) | 618 | ||||||
| Pump speed (spm) | 133 | ||||||
| Suction pump dia. | Φ203 | ||||||
| Discharge pump dia. | Φ76 | ||||||
| Piston Stroke (mm) | 175 | ||||||
| Input Power | Diesel Engine | G128LD 206KW | |||||
| Electric Motor | Y335M-6 185KW | ||||||
| Dimension (mm) | 3000*1650*1840 | ||||||
| Weight (kg) | 6000 | ||||||
Packing: Standard Exporting Packing for 3NB Series Drilling Mud Pump
Delivery: Normally 10-15 days after your advanced payment.
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
FAQ
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
