300m 6×4 Water Well Drilling Equipment Compact Structure Truck

1
MOQ
Negotiable
Price
300m 6×4 Water Well Drilling Equipment Compact Structure Truck
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 300m Compact Structure Truck Water Well Drill Rig Based On Dongfeng 6×4 Truck Chassis
Keyword: 300m Compact Structure Truck Water Well Drill Rig
Depth It Drills (m): 300 Meters
Through Hole Diameter Of Turntable (mm): 500
Turntable Speed (r/min): 8.6-142
Turntable Torque (kN.m): 38.9-2.4
Highlight:

300m water well drilling equipment

,

6×4 water well drilling equipment

,

compact structure water well drilling machine

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE, SGS, TUV
Model Number: DF300
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 20sets/month
Product Description

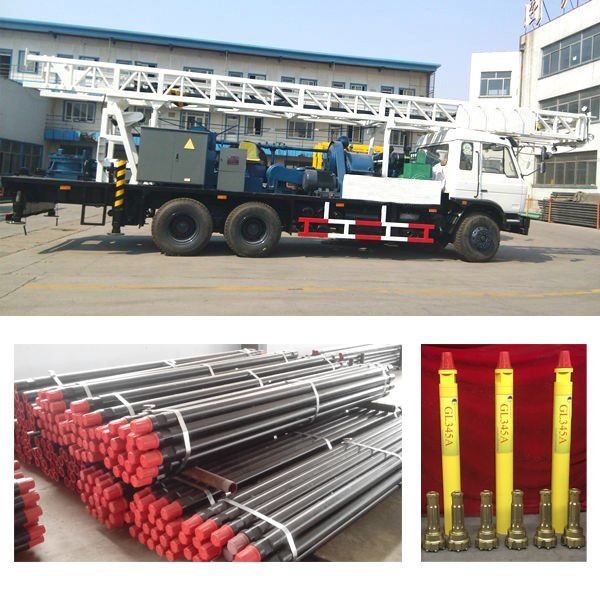

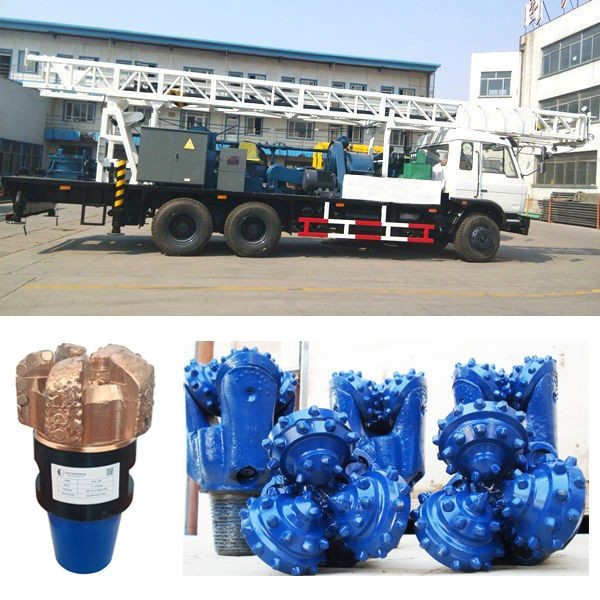

300m Compact Structure Truck Water Well Drill Rig Based on Dongfeng 6×4 Truck Chassis



Description:

300m Compact Structure Truck Water Well Drill Rig is based on Dongfeng 6×4 Truck Chassis, the model number DFS1251GL18, 132kw/2500rpm with strong power, which meets China III emission standard, and with 11.00R20 steel wire cross-country pattern tires. It has good off-road performance, which can help you drill in different formations.



Features:
1. Compact structure, based on 6×4 Truck Chassis
2. with strong power Yuchai YC6J180-33 diesel engine, emission of China III, 132kw/2500rpm.

3. The drilling rig uses an independent diesel generator set as the power when drilling, and the mechanical hoist and the turntable work at the same time through the motor drive.

4. The drilling rig is equipped with mechanical double winches. The main and auxiliary hydraulic winches have the characteristics of large lifting force and fast lifting speed, which can meet the needs of normal drilling and have the ability to deal with general accidents in the well.





Tehnical Parameter:



Nominal drilling depth (M) 300
Through hole diameter of turntable (mm) 500
Turntable speed (r/min) 8.6-142
Turntable torque (kN.m) 38.9-2.4
Single rope pulling force of main winch (kN) 30
Main hook lifting capacity (kN) 240
Single rope pulling force of auxiliary winch (kN) 30
Lifting force of secondary hook (kN) 120
Drill tower bearing capacity (kN) 240
Effective height of drilling tower (mm) 11900
Kelly rod (mm) Φ108×108×7500
Drill rod (mm) Φ88.9×9.8×5500
Power Generator model HH100/R6105AZLD-1 100kW
Main rig Y225S-4 37kW/1470rpm
Mud pump Y225S-4 37kW/1470rpm
Hydraulic pump YE2-160M-4 11kW/1470rpm



300m 6×4 Water Well Drilling Equipment Compact Structure Truck 0



Company Profile



300m 6×4 Water Well Drilling Equipment Compact Structure Truck 1

Glorytek Industry (Beijing)Co.,Ltd., mainly supply and munufacture top quality drilling equipment and drilling parts. Our company is located in Beijing, China. We have professional production department and our own exporting team to deal with orders from worldwide clients for decades. We have our mature models of drilling rigs and drilling tools, which have been supporting our clients drilling projects very well. We also welcome clients who want to customized products.


Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

300m 6×4 Water Well Drilling Equipment Compact Structure Truck 2



We have attended many exhibitions to showcase our products.



300m 6×4 Water Well Drilling Equipment Compact Structure Truck 3
