300mm 300m Water Well Drill Rig Steel Crawler With 77kw Diesel Engine

1
MOQ
Negotiable
Price
300mm 300m Water Well Drill Rig Steel Crawler With 77kw Diesel Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 300M Steel Crawler Water Well Drill Rig With 77kw Diesel Engine
Keyword: 300M Steel Crawler Water Well Drill Rig
Depth: 300m
Hole Diameter: 105-300mm
Crawler: Steel Track
Transport Size: 4.9m X 2m X 2.3m
Rig Mass: 7.8T
Power: 77KW(Yuchai)
Highlight:

300mm water well drill rig

,

77kw water well drill rig

,

diesel engine crawler drill rig

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL300S
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 20sets/month
Product Description

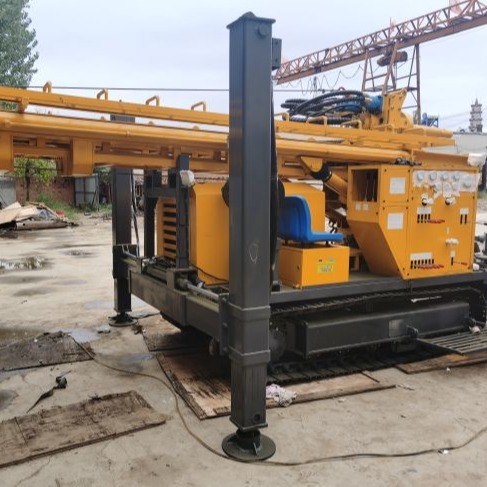

300M Steel Crawler Water Well Drill Rig With 77kw Diesel Engine



Description:



GL300S crawler water well drill rig is a light, efficient and multifunctional drilling equipment. It is mainly suitable for drilling water wells, agricultural irrigation wells, geothermal air conditioning holes and other wells, especially for water intake projects in mountainous and rock formations.

It can drill 300m deep, equipped with 77kw diesel engine.



Main Features:

1. The rotary head is large torque, long service life and fast drilling speed.

2. The structure design of the whole machine is reasonable, the stability is good, the lifting force is large, and the drilling depth is deeper.

4. Adopting special plunger pump for excavator, variable can be carried out under different working conditions, which can adapt to more complicated working conditions.

5. The steel hydraulic crawler chassis is especially superior in muddy areas.

6. With hydraulic high outriggers, it is convenient for the drilling rig to be loaded and moved, reducing the cost of hoisting. When drilling, the outriggers can also assist in leveling and stabilizing the drilling rig.





Tehnical Parameter:
Max drilling depth 330m
Drilling diameter 105-300mm
Air pressure 1.25-3.5Mpa
Air consumption 16-55m³/min
Rod length 3m/6m
Rod diameter 76/89/102mm
Main shaft pressure 6T
Lifting force 20T
Fast lifting speed 20m/min
Fast forwarding speed 40m/min
Rotary torque 8900 N.M
Rotary speed 30/170r/min
Winch lifting force 1.5T
High leg stroke 1.35-1.5m
Drilling efficiency 10-35m/h
Moving speed 2.5Km/h
Uphill angle 21°
Weight of the rig 7.8T
Dimension 4.9m x 2m x 2.3m
Working condition loose layer or bedding rock
Drilling method

Top Hammer Hydraulic Rotating and feeding,

Down the hole hammer or mud pump drilling

Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 77KW(Yuchai)

Related products

300mm 300m Water Well Drill Rig Steel Crawler With 77kw Diesel Engine 0

Customer Visting

300mm 300m Water Well Drill Rig Steel Crawler With 77kw Diesel Engine 1

Company Profile

300mm 300m Water Well Drill Rig Steel Crawler With 77kw Diesel Engine 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.



FAQ

Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
