Friction Welding Water Well Drill Rod With 60mm 76mm 89mm 102mm 114mm Diameter

1pc
MOQ
Negotiable
Price
Friction Welding Water Well Drill Rod With 60mm 76mm 89mm 102mm 114mm Diameter
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Factory Directly Provide Friction Welding Water Well Drill Rod With 60mm 76mm 89mm 102mm 114mm Diameter
Keyword: Factory Directly Provide Friction Welding Water Well Drill Rod
OD: 60mm 76mm 89mm 102mm 114mm
Length: 1/1.5/2/3/6m Long
Threads: API REG / API IF Thread, Etc.
Thickness: Regular Thickness
Highlight:

60mm Diameter Water Well Drill Rod

,

Friction Welding Water Well Drill Rod

,

76mm Diameter Well Drilling Rod

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE, SGS, TUV
Model Number: 60mm 76mm 89mm 102mm 114mm
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100sets/month
Product Description

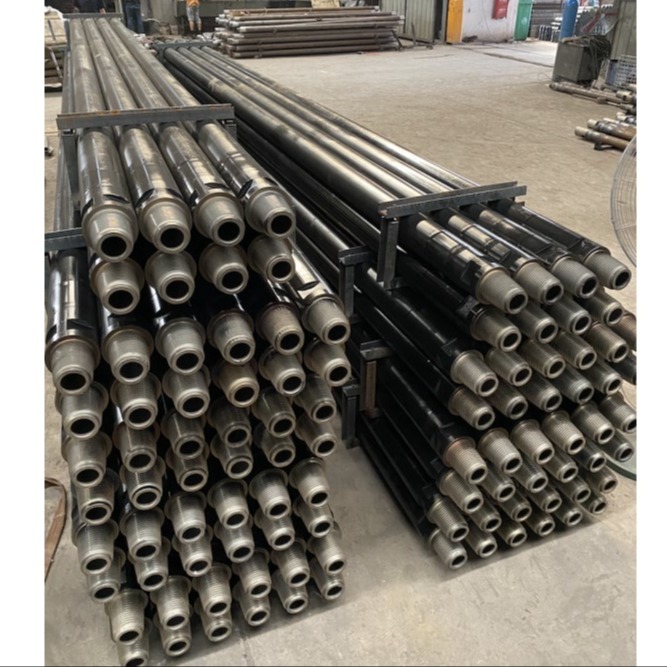

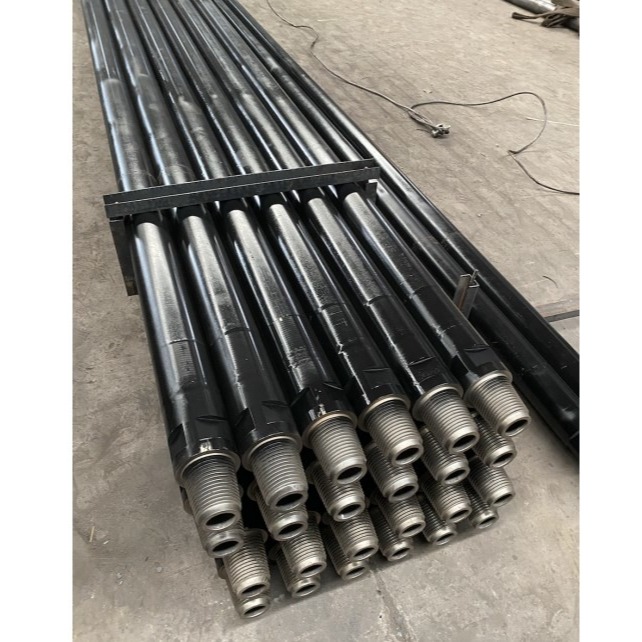

Factory Directly Provide Friction Welding Water Well Drill Rod with 60mm 76mm 89mm 102mm 114mm Diameter



Description


Glorytek provides a complete line of drill rods products, including a full range of friction welded drill pipes in nominal sizes from 2-3/8" to 6-5/8" and in a wide range of wall thicknesses. Glorytek drill pipe adopts a strict quality control regimen to ensure total quality control from initial material qualification, in-process inspection to final out- going quality inspection. We ensure that each joint of drill pipe meets your needs for reliability, durability and performance.



1, What's the diameter of drill pipe?
There are 76mm,89mm ,102mm,114mm and 127mm. But 89mm and 114mm drill pipe are the most widely used types.



2, What's the length of drill pipe?
There are 1.5m ,2m ,3m,4.5m,6m,6.1m,7.2m 9.5m etc. 1.5m, 3m, 6.1m, 7.2m are the most widely used types. We also can produce the length as your request.



3, What's the thread of drill pipe ?
There are API 2 3/8REG, 2 3/8 IF(NC26) ,2 7/8IF(NC31) ,3 1/2REG(NC38),NC40 etc thread.



4, What's the material of drill pipe body ?
E75,R780,X95,G105,S135 etc



5, What's the material of Joint?
40Cr, 45Mn2, 35CrMo, 4137H, etc.



Technical Parameter

Outside diameter Φ50 Φ60 Φ73 Φ89 Φ102 Φ114 Φ127
Outside diameter of joint (mm) Φ65 Φ75 Φ105 Φ127 Φ133.4 Φ158.8 Φ168
Thickness (mm) 6.5 7.1 9.19 9.5/10 8.38 8.56 9.19
Length (mm) 1000~4500 1000~4500 1500~9500 1500~9500 3000~9500 1500~9500 5000~9500

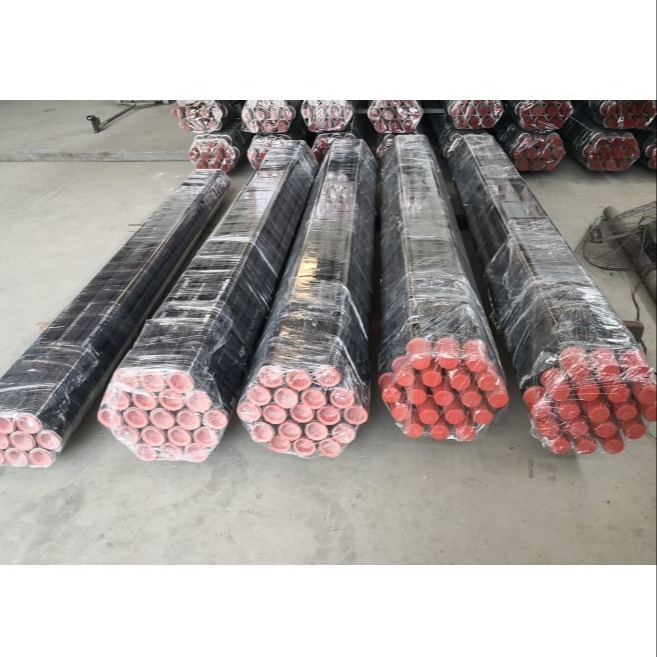

Packing of Water Well Drill Rod



Packing: Standard Exporting Packing for Water Well Drill Rod
Delivery: Normally 10-15 days after your advanced payment.



Company Profile



Friction Welding Water Well Drill Rod With 60mm 76mm 89mm 102mm 114mm Diameter 0

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.



Our company has advanced friction welding, drill pipe thickening equipment and a variety of molding technology and processing equipment. According to the customer's requirements, we can produce various specifications of the drill pipe and connecting parts of the United States standards. At the same time, we are also equipped with a set of physical and chemical testing machine on the hydraulic pressure, heat treatment, no damage, etc. to ensure the quality of products. At the beginning of the establishment, we passed the certification of CQC and ISO9001.



Through years of manufacturing experience and customer's use of reflection, the application, safety and reliability of the domestic industry of our products have reached a leading level. We adhere to the "quality first, reputation first" business philosophy. We do our best to meet the customers' need .We are very pleased to establish a long-term business relationship with you on the basis of mutual benefit. We believe that we will be your best partner in China.







FAQ:


Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.



Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.



Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
