Gl300at 6x4 Water Well Drill Rig Borehole Truck Mounted Dth With Air Compressor

1
MOQ
Negotiable
Price
Gl300at 6x4 Water Well Drill Rig Borehole Truck Mounted Dth With Air Compressor
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL300AT Borehole Truck Mounted DTH Water Well Drill Rig With Air Compressor
Keyword: Water Well Drill Rig With Air Compressor
Depth: 300m
Hole Diameter: 110-325mm
Mud Pump: BW250 Or BW450
Drill Rod Dia.: 89mm/102mm/114mm
Drive Type: 6x4
Highlight:

glorytek water well drill rig

,

dth borehole water well drill rig

,

6x4 water well drilling equipment

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE, SGS, TUV
Model Number: GL300AT
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 20sets/month
Product Description

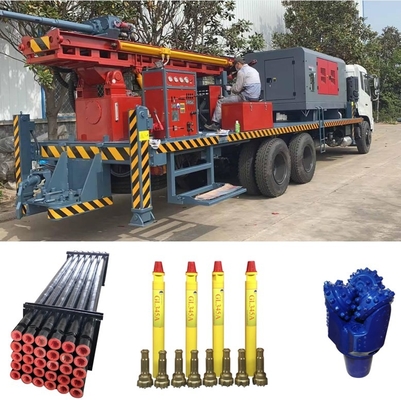

GL300AT Borehole Truck Mounted DTH Water Well Drill Rig With Air Compressor

Description:



Multi function truck mounted water well riling rig is a new type, high efficiency and multi-function full hydraulic driig
rig, which ismainly used for dirilig water wells, monitoring wells, geothermal alr-conditioning holes, grouting holes for
hydropower cofferdams,anti-seepagegrouting holes for dams, groutig holes for foundation reinforcement, open-pit mining, anchoring etc.



GL300AT air compressor integrated truck mounted drill rig is equipped with Sinotruk HOWO 6x4 truck chassis.

The drill rig can drill max. 300m depth.

Our truck mounted drilling rig is equipped with a high-pressure screw air compressor and a mud pump at the same time, which can be switched for different geological environments, and it is suitable for all kinds of drilling projects.

The size of the mud pump can be customized according to customer needs

The drilling rig can use air DTH Hammer drilling and mud drilling.

Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.



Tehnical Parameter:



Drill Rig Spec.
Max. drilling depth 300m
borehole dia. 105-325mm
recommended working pressure 1.2-3.5Mpa
Recommended air consumption 16-55m3/min
Drill rod length 6m/3m
Drill rod dia. 89mm/102mm/114mm
Feeding efficiency 10-40m/h
Winch lifting force 1.1T (optional)
DTH hammer Medium and high pressure type
Truck Chassis Specification
Brand Sinotruk HOWO 6x4
Cab T5G-W
Diesel Engine Model MC09.35B-60(Displacement:9.0L, 6-cylinder)
Diesel Engine Power 350HP
Drive Type 6x4
Wheelbase 5700+1350
Tire specifications 12.00R20
Front axle HF7 self-adjusting arm front axle
rear axle ST16 self-adjusting arm double rear axle,Speed ratio 4.8
gearbox HW16709XST
other configuration frame:8+5/300, 300L Aluminum alloy oil tank
Air Compressor Specification
Brand Glorytek
Air pressure 22bar
Air output 24m³/min
Diesel engine Yuchai YC6L310-H300
Diesel engine power 228Kw
Dimensions 3560*1830*2050mm
Weight 3560kgs
Delivery valve G1 1 /2, G2



Related products



Gl300at 6x4 Water Well Drill Rig Borehole Truck Mounted Dth With Air Compressor 0

Customer Visting

Gl300at 6x4 Water Well Drill Rig Borehole Truck Mounted Dth With Air Compressor 1

Company Profile

Gl300at 6x4 Water Well Drill Rig Borehole Truck Mounted Dth With Air Compressor 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ

Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
