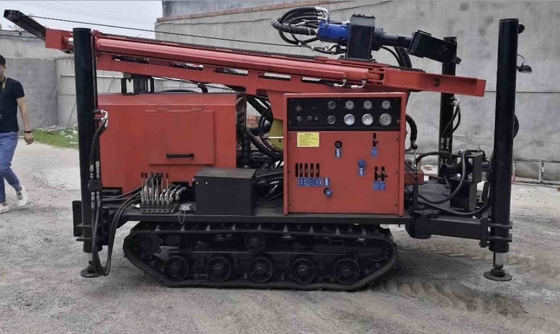

The manufacturer's direct selling steel crawler hydraulic water well drill rig, GL-180R water well drill rig, it adopts 65kw power, four cylinder diesel engine, and equips with rubber crawler chassis.
High outrigger design, which is convenient for loading and unloading operations.
Composite boom design is safe and stable.
This drill rig is simple to operate and fast speed.
It is specially used to drill wells in rock layers with air compressor.
The drilling rig is of excellent quality and has a comprehensive after-sales support team to solve customers' worries.
Crawler water well drilling rig has the advantages of low gravity center of the whole vehicle, stable and safe climbing, strong adaptability, large rotating torque, stable and fast propulsion and lifting, centralized control of the operating handle of the control wheel, simple operation, and improved the operation safety factor.
Item | Specification |
Weight of the rig(T) | 5 |
Drilling diameter(mm) | 138-219 |
Drilling depth (m) | 200 |
Feeding stroke(m) | 3.5 |
Climbing ability(°) | 30 |
Diesel engine(kw) | 65 |
Air pressure (mpa) | 1.8-2.5 |
Air consumption(m³/min) | 18-30 |
Rod diameter(mm) | Φ76 φ89 |
Rod length (m) | 1.5 3.0 |
Rotary torque(N.m) | 4500 |
Supporting legs (height*width)(mm) | 1200*2400 |
Rig dimensions(length*width*height)(mm) | 3500*1600*2200 |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
