Crawler Hydraulic Borehole Deep Water Well Drilling Machines Driller

1
MOQ
Negotiable
Price

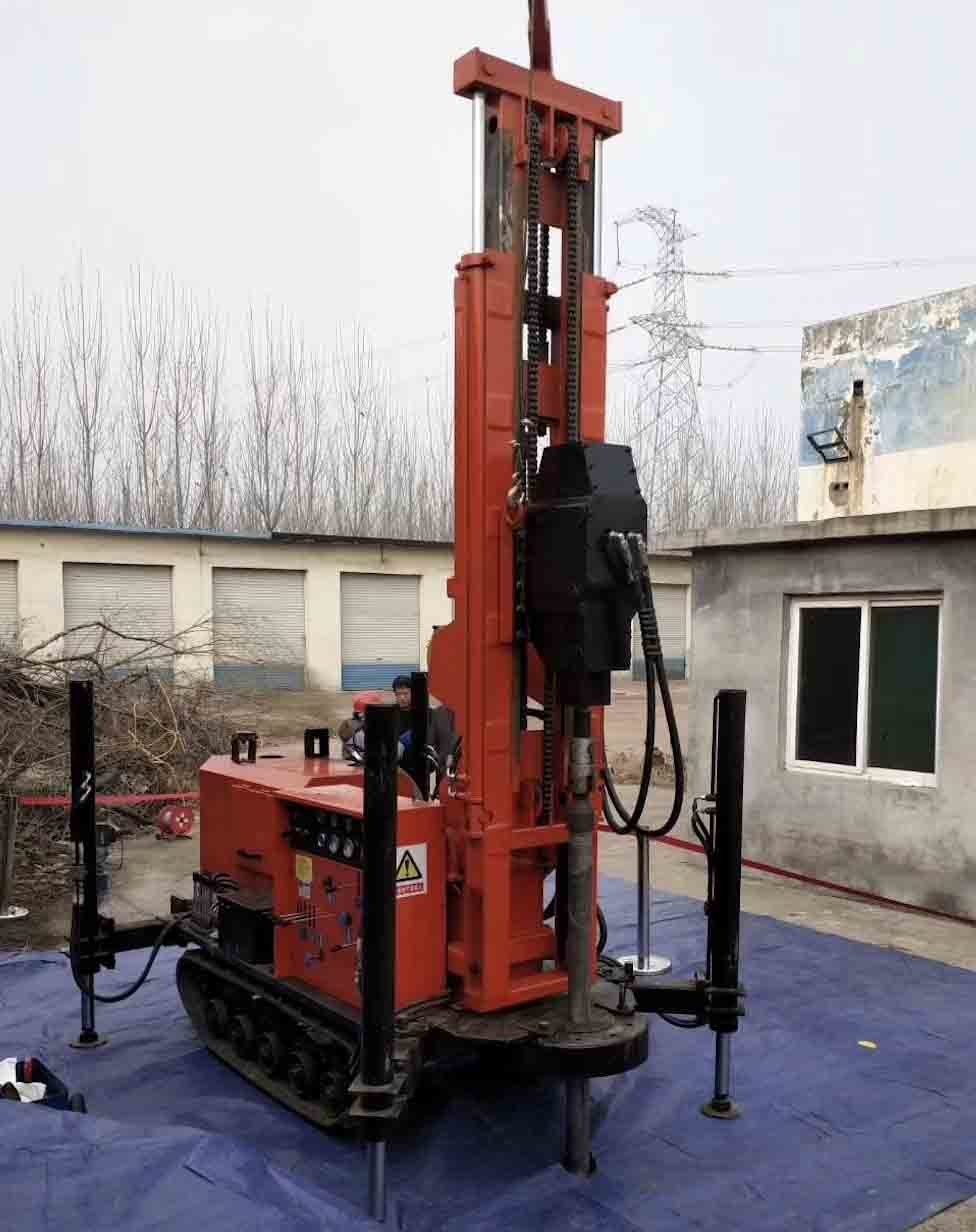

Crawler Hydraulic Borehole Deep Water Well Drilling Machines Driller
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Crawler Hydraulic Drilling Rig Deep Borehole Water Well Driller Water Well Drill Rig
Keyword: Crawler Hydraulic Drilling Rig
Depth: 200M
Hole Diameter: 135-219mm
Crawler: Rubber Track
Transport Size: 3500*1600*2200mm
Rig Mass: 5000kg
Power: 65kw Diesel Engine
Highlight:

crawler deep water well drilling machines

,

hydraulic deep water well drilling machines

,

borehole deep water well drilling rigs

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL-180R
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 20sets/month
Product Description

Crawler Hydraulic Drilling Rig Deep Borehole Water Well Driller Water Well Drill Rig

Description:



Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.

GL-180R is simple structure in linear type ,easy in installation and maintation.
It is adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
It has the advantages of advanced structure, convenient use, high work efficiency, high reliability and good durability.
It is widely used in wellbore applications such as drilling wells, agricultural irrigation wells, geothermal air conditioning wells, etc. It is especially suitable for mountain and rock formation water intake projects.




Tehnical Parameter:

Item Specification
Weight of the rig(T) 5
Drilling diameter(mm) 138-219
Drilling depth (m) 200
Feeding stroke(m) 3.5
Climbing ability(°) 30
Diesel engine(kw) 65
Air pressure (mpa) 1.8-2.5
Air consumption(m³/min) 18-30
Rod diameter(mm) Φ76 φ89
Rod length (m) 1.5 3.0
Rotary torque(N.m) 4500
Supporting legs (height*width)(mm) 1200*2400
Rig dimensions(length*width*height)(mm) 3500*1600*2200






Customer Visting

Crawler Hydraulic Borehole Deep Water Well Drilling Machines Driller 0

Company Profile

Crawler Hydraulic Borehole Deep Water Well Drilling Machines Driller 1

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ

Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
