Small Courtyard Crawler Pneumatic Deep Well Drilling Machine 300 Meters

1
MOQ
Negotiable
Price
Small Courtyard Crawler Pneumatic Deep Well Drilling Machine 300 Meters
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Small Courtyard Crawler Pneumatic Well Drilling Machine 300 Meters Deep Well Drill Rig
Keyword: Small Courtyard Crawler Pneumatic Well Drilling Machine
Depth: 300m
Hole Diameter: 70-180mm
Crawler: Rubber Crawler
Transport Size: 3300*1200*1300mm
Rig Mass: 1.8T
Power (hp): Yuchai 50HP
Highlight:

courtyard deep well drilling machine

,

crawler pneumatic deep well drilling machine

,

300 meters deep well drilling rig

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL-50D
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 20sets/month
Product Description

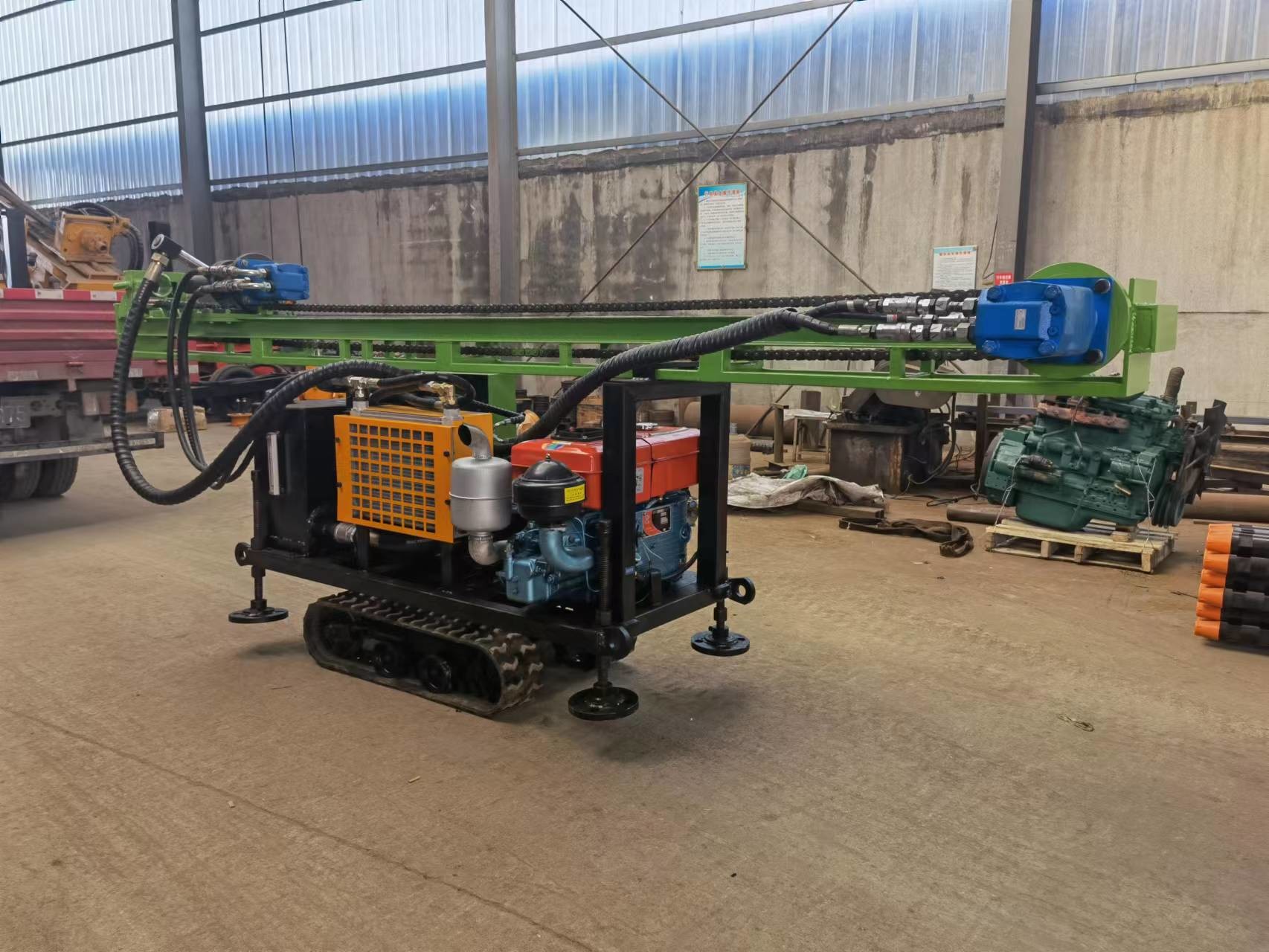

Small Courtyard Crawler Pneumatic Well Drilling Machine 300 Meters Deep Well Drill Rig



Description:



GL-50D Full hydraulic drilling rig mainly used to drilling wells,irrigation wells,ground source heating pump wells and boreholes for other purposes,especially for mountain and rock formation well projects.



The total weight is 1.8ton, very light weight.

The total dimension is small, It is suitable for narrow place drilling, it can easily enter into yard and garden.

This drill rig is impact desin, it can work with air compressor, the max drilling depth is 300m.

It is equipped with rubber track, which will not crash the road.

Drill pipe length can be 2m or 3m.





Tehnical Parameter:



Model GL-50D
The weight (T) 1.8
Tower weight (removable) (kgs) 220
The hole diameter (mm) 70-180
Drilling depth (m) 300m at 90mm hole
Feeding distance (m) 2.3m/3.3m
Drilling angle horizontal or vertical
Power (hp) Yuchai 50HP (electric start diesel engine)
Drill pipe diameter (mm) 76/89
Drill pipe length (m) 2.0/3.0
Rig lifting force (T) 6
Chassis rubber crawler
Rotation torque (N.m) 1700
Dimension(walking state) (mm) 3300*1200*1300
Drilling method Down the hole hammer



Small Courtyard Crawler Pneumatic Deep Well Drilling Machine 300 Meters 0






Customer Visting

Small Courtyard Crawler Pneumatic Deep Well Drilling Machine 300 Meters 1

Company Profile

Small Courtyard Crawler Pneumatic Deep Well Drilling Machine 300 Meters 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ


Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
