Name: Bw Series Bw160 High Pressure Mud Pumps Mine Diesel Engine Easy Operate
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: BW160
Price: 42,250.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Easy To Operate BW Series BW160 Mine Diesel Engine High-Pressure Mud Pump

Keyword: BW160 Mine Diesel Engine High-Pressure Mud Pump

Model: BW160

Flow: 160l/min

Power: 7.7kw

Highlight:

bw series high pressure mud pumps

diesel engine high pressure mud pumps

high pressure bw 160 mud pump

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: CE

Model Number: BW160

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

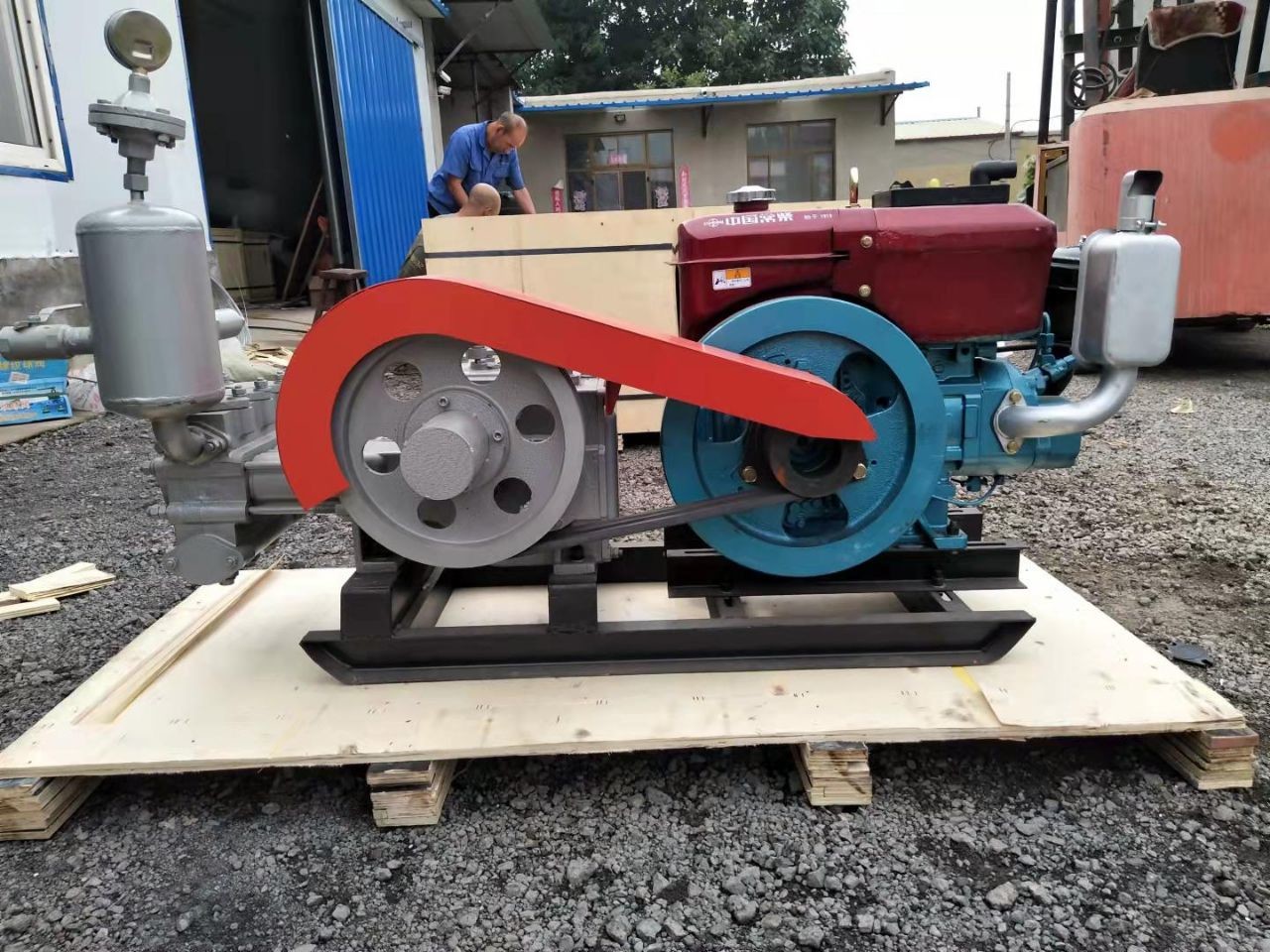

Bw Series Bw160 High Pressure Mud Pumps Mine Diesel Engine Easy Operate

Product Description

Easy To Operate BW Series BW160 Mine Diesel Engine High-Pressure Mud Pump

Description

BW Series mud pump is one of the principal equipment for drilling.

It delivers enough volume circulating mud water of desired characteristics under pressure into the well to bring the rock clastic up to the ground, cool the drill bit lubricate the drill tool, and protect the wall of the well.

The BW160 drilling mud pump is a horizontal three- cylinder single-acting reciprocating piston pump, which is mainly used to supply flushing fluid to the borehole during drilling process.

BW Series mud pumps can be driven by an electric motor, diesel engine, or hydraulic motor according to the client's requirement.

Technical Parameter

BW160 Drilling Mud Pump
Type	Horizontal three cylinder reciprocating single acting piston pump
Cylinder Liner Dia (mm)	65
Piston Stroke (mm)	70
Speed level	I	II
Strokes Per Minute	245	190
Pressure (MPa)	1.5	2.0
Flow Rate(L/min)	160	130
Power (kW)	7.7
Suction pipe dia.(mm)	φ51
Drain pipe dia.(mm)	φ25
V-belt section	1448mm
Input speed	754r/min
Power
Type	Diesel Engine	Motor
Model	ChangchaiR190A ( water cooling)	Y132S-4-B3
Rated power	7.7KW	5.5KW
Rotating Speed	2300r/min	1440r/min
Weight (kg)	200kg
Overall Dimension(L×W×H) (mm)	1200x550x580

Packing

Packing: Standard Packing
Delivery: Normally 10 days after your down payment.

Bw Series Bw160 High Pressure Mud Pumps Mine Diesel Engine Easy Operate 0

Certificate

Bw Series Bw160 High Pressure Mud Pumps Mine Diesel Engine Easy Operate 1

Company Profile

Bw Series Bw160 High Pressure Mud Pumps Mine Diesel Engine Easy Operate 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

FAQ

Q: Are you a factory or a trading company ?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?

A: We can accept T/T,L/C.

Q:.What is your MOQ?

A: No requirement for testing and trial order

After-sale Service:

Delivery Time: Based on order quantity, normally it takes 20 days for production.Only 2 or 3 days if we have stock on your request size.

Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.

Technical Support will be available in any time. We could provide the professional suggestion for you.
Online support to help solve the problem.
Shipping spare parts immediately if requested,
