Name: High Performance BW160 Drilling Mud Pump Three Cylinder With 160L/Min Flow Rate
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: BW160
Price: 42,250.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: High Performance BW160 Three Cylinder Mud Pump With 160L/Min Flow Rate

Keyword: High Performance BW160 Three Cylinder Mud Pump

Model: BW160

Flow: 160l/min

Power: 7.7kw

Highlight:

bw 160 drilling mud pump

three cylinder drilling mud pump

high performance bw 160 mud pump

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: CE

Model Number: BW160

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

High Performance BW160 Drilling Mud Pump Three Cylinder With 160L/Min Flow Rate

Product Description

High Performance BW160 Three Cylinder Mud Pump With 160L/Min Flow Rate

Description

BW Series mud pump is one of the principal equipment for all kinds of drilling.

BW160 Mud pump is a horizontal three-cylinder reciprocating single-acting piston pump.

It is mainly used for core drilling rig supporting transportation slurry,also can be used for other aspects of grouting,mine drainage and long-distance water supply and other uses.

The pump has low energy consumption,flexible operation,high quality and durability,good decomposability ad easy relocation.Drilling cycle water power source.

It has the advantage of multi-speed shift gears for variable displacement, construction, light weight, readily movable and easy to operate.

BW Series mud pumps can be driven by an electric motor, diesel engine, or hydraulic motor according to the client's requirement.

Technical Parameter

BW160 Drilling Mud Pump
Type	Horizontal three cylinder reciprocating single acting piston pump
Cylinder Liner Dia (mm)	65
Piston Stroke (mm)	70
Speed level	I	II
Strokes Per Minute	245	190
Pressure (MPa)	1.5	2.0
Flow Rate(L/min)	160	130
Power (kW)	7.7
Suction pipe dia.(mm)	φ51
Drain pipe dia.(mm)	φ25
V-belt section	1448mm
Input speed	754r/min
Power
Type	Diesel Engine	Motor
Model	ChangchaiR190A ( water cooling)	Y132S-4-B3
Rated power	7.7KW	5.5KW
Rotating Speed	2300r/min	1440r/min
Weight (kg)	200kg
Overall Dimension(L×W×H) (mm)	1200x550x580

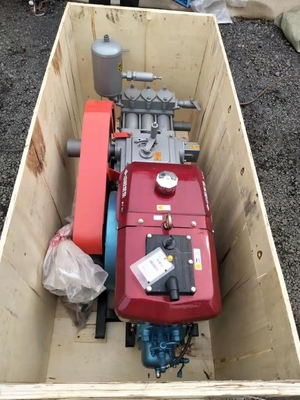

Packing

Packing: Standard Packing
Delivery: Normally 10 days after your down payment.

High Performance BW160 Drilling Mud Pump Three Cylinder With 160L/Min Flow Rate 0

Certificate

High Performance BW160 Drilling Mud Pump Three Cylinder With 160L/Min Flow Rate 1

Company Profile

High Performance BW160 Drilling Mud Pump Three Cylinder With 160L/Min Flow Rate 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

FAQ

Q: Are you a factory or a trading company ?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?

A: We can accept T/T,L/C.

Q:.What is your MOQ?

A: No requirement for testing and trial order

After-sale Service:

Delivery Time: Based on order quantity, normally it takes 20 days for production.Only 2 or 3 days if we have stock on your request size.

Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.

Technical Support will be available in any time. We could provide the professional suggestion for you.
Online support to help solve the problem.
Shipping spare parts immediately if requested,
