Small Borehole GL-II Water Drilling Machine With Trailer Type 200m Depth

1 sets
MOQ
To be negotiated
Price
Small Borehole GL-II Water Drilling Machine With Trailer Type 200m Depth
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Trailer
Power Type: Diesel
Certification: CE,SGS,TUV
Name: Small GL-II Water Drilling Machine With Trailer Type 200m Depth
Highlight:

borehole water drilling machine

,

200m depth water drilling machine

,

borehole small water drilling machine

Basic Infomation
Place of Origin: Beijing
Brand Name: GLORYTEK
Certification: CE
Model Number: GL-II
Payment & Shipping Terms
Packaging Details: bare packing
Delivery Time: 20 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description

Water well drilling machine GL - II With Truck Mounted Drill Rock Rig 200m


1,Description:

>>A water well drilling rig is a specialized piece of equipment used to drill boreholes or wells into the ground to access underground water sources, such as aquifers.
>>These drilling rigs come in various sizes and configurations, depending on the specific requirements of the drilling project, such as depth, soil type, and environmental conditions.
>>Water well drilling rigalso called water well drilling equipment, are mainly used to develop groundwater resources, including domestic, agricultural, and industrial water drilling work. It is also suitable for hydrogeological exploration, construction engineering, and bridge foundation drilling. Water well drilling rigs are divided into small water well drilling rigs and crawler water well drilling rigs.
>>In summary it is basically just a machine to drill down to the level where there is possibly water to extract that water for consumption
. Drilling through rock, mud, dirt, etc.
2,Applications:

Drilling is suitable for industrial and agricultural and geothermal water well.
It has the advantages of large diameter of drilling hole,deep drilling, fast footage, flexible movement and wide application.


3,Specifications:

Hole diameter(mm): 90--1200 Dimensions(mm)(L-W-H)Working conditions :4910×2020×6650
Hole depth(m): 250M Transport status(mm): 6700×2020×2750
Run Of Rod(m): 3-6 Supporting Form: Mechanical Screw
Drill rod diameter(mm): φ60 φ73 φ89 φ95 Mask Up-Down: Hydraulic Drive
Drilling Technology: Rig mass(Kg): 3400
Normal and Reverse Circulation for both Mud and Air
Down-The-Hole hammers:Middle-High-Pressure Air Chassis: Trailer with two wheels
Drill Head Inside Diameter :φ35 φ60 φ81 φ120 Power Unit: Diesel Engine
Drill Head Lifting Speed(m/s): 0.25 0.15 Power(kW): 40
Drill Head lifting Force(T): 15 Pump :LBN-20 Normal and Reverse circulation pump group
Drill Head Spin Speed: A(Forward:13-22-48,Reverse (r/min): 10-17-36 Flow(m3/h): 80
Main Hoist Lifting Force(kN): 2.5T
B(Forward:48-84-184,Reverse (r/min): 37-65-142 Feed Thrust(kN): 2T






4,Feature Advantage:

- Move easily & good mobility
- Simple operation & high efficiency
- Commercial Price.
5,Product Details

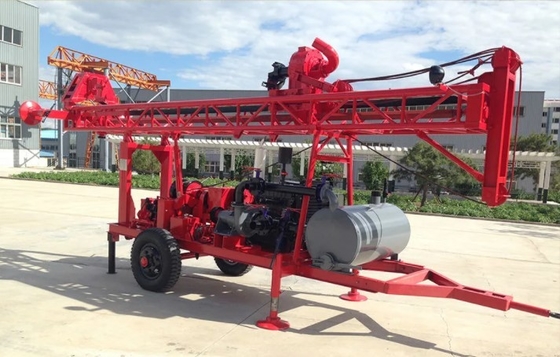

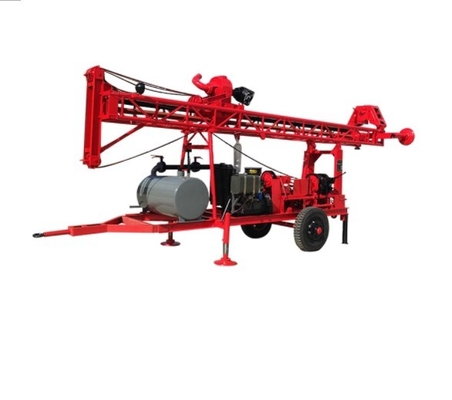

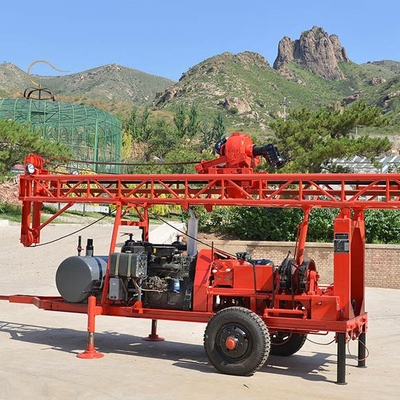

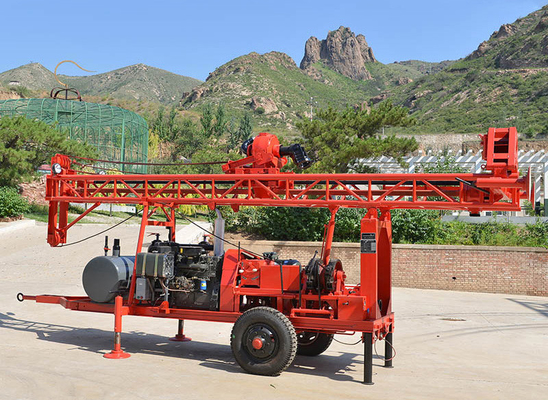

Small Borehole GL-II Water Drilling Machine With Trailer Type 200m Depth 0Small Borehole GL-II Water Drilling Machine With Trailer Type 200m Depth 1Small Borehole GL-II Water Drilling Machine With Trailer Type 200m Depth 2Small Borehole GL-II Water Drilling Machine With Trailer Type 200m Depth 3
