CE GL300S 77KW 330m Depth Geothermal Drilling Rig

GL300S Geothermal Drilling Deep Water Well Drill Rig 77KW 330m Depth

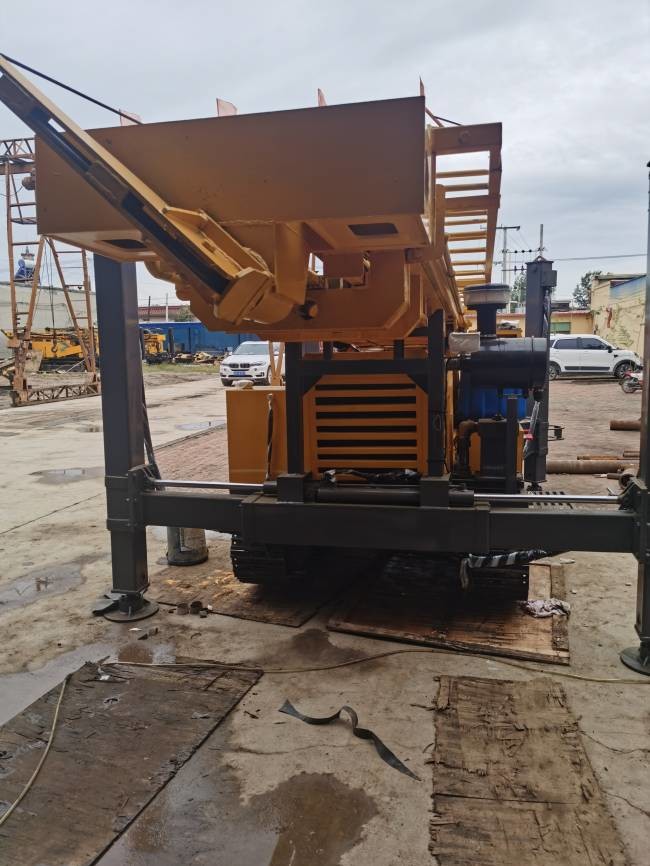

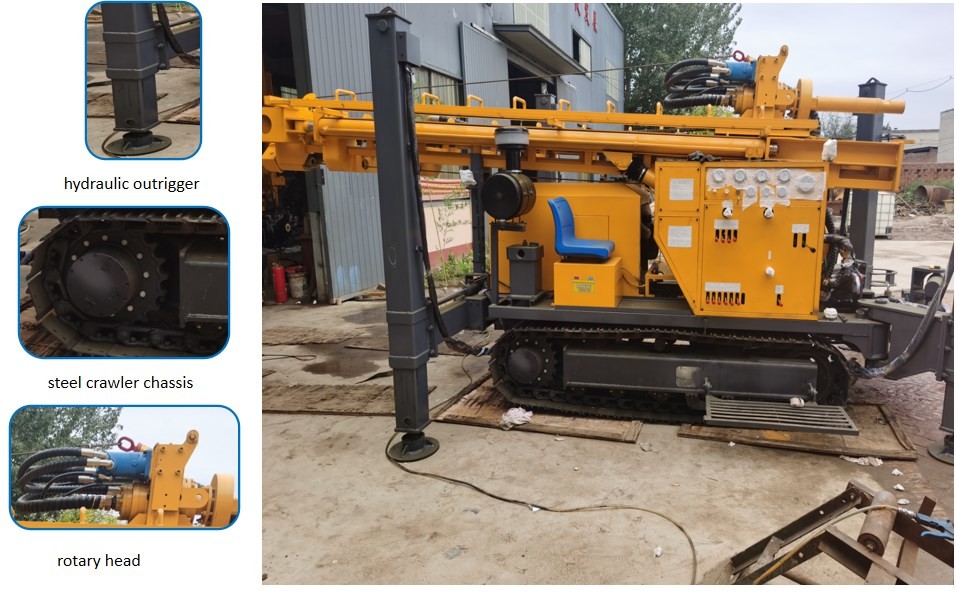

GL300S is a 300m crawler water well drilling rig. This crawler water well drilling rig is capable of drilling boreholes up to a depth of 330m with a drilling diameter of 105-300mm.

It can operate in loose layer or bedding rock conditions and can use either Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling method.

The rig is equipped with a diesel engine with 77KW power and has a weight of 7.8T.

It has a fast lifting speed of 20m/min and a fast forwarding speed of 40m/min.

The rotary torque is 8900 N.M with a rotary speed of 30/170r/min. The rig has a lifting force of 20T and a winch lifting force of 1.5T.

It has a high leg stroke of 1.35-1.5m and can operate at an uphill angle of 21°. The drilling efficiency is 10-35m/h, and it has a moving speed of 2.5Km/h.

Optional accessories include a mud pump, centrifugal pump, generator, and foam pump.

Max drilling depth: 330m - This means that this drilling rig is capable of drilling boreholes up to a depth of 330 meters, making it suitable for a wide range of water well drilling applications.

Drilling diameter: 105-300mm - The rig can drill boreholes with a diameter ranging from 105mm to 300mm, allowing it to be used for a variety of water well drilling projects.

Air pressure: 1.25-3.5Mpa - The rig is equipped with an air compressor that can provide air pressure between 1.25 to 3.5 megapascals (Mpa). This air pressure is used to power various drilling tools and equipment.

Air consumption: 16-55m³/min - The rig's air consumption ranges from 16 to 55 cubic meters per minute (m³/min), depending on the drilling conditions and the type of drilling tools being used.

Rod length: 3m/6m - The rig can use drill rods with lengths of either 3 meters or 6 meters, depending on the drilling depth and the specific drilling requirements.
