140mm Well Drilling Pipe For Building Construction Engineering Holes

Water Well Drill Rod for Building Construction & Engineering Holes



1.Description:
-Water Well Drill Rod used for Geological Exploration & Building Constructiondrill pipes is mainly used in the drilling blasting hole, guardrail hole, mountain reinforcment, anchoring and other engineering holes in mines, quarris, high ways, railways and so on.It has a long service life.and they're also subjected to high bending stress,transferring the percussion energy from rock drill to drilling bit and then into the rock.
-Drill pipe/drill rod is a steel pipe with a thread at the end, which is used to connect the surface equipment of the drilling rig and the drilling and grinding equipment or bottom hole device at the bottom of the well.

-The purpose of the drill pipe is to transport the drilling mud to the drill bit and together with the drill bit raise, lower or rotate the bottom hole device. Drill pipe must be able to withstand enormous internal and external pressure, twisting, bending and vibration.

-Water well drill pipe is a consumable drilling tool used in the process of water well drilling. Conventional diameters are 76mm, 89mm, 114mm, 127mm, 140mm, etc

2.Applications:
-Water Well drill rods are widely used in geological exploration, coal mining, water conservancy & hydropower, highway, railway, bridge, building construction etc.
-Used in holedrilling works, such as mining blasting,water welldrilling,geothermal welldrilling,pipe roofsupport,coalandnon-ferrous metalminingprojects.
3.Specifications:


4.Feature Advantage:
1. Application hard, very hard,and medium soft rock formation.
2. Reliable quality, long service life, rare abnormal breakage during service life
3. Good flushing effect to ensure high drilling rate
4. Strict quality warranty and compensation rules
5. Pipe body : cold draw seamless pipe . so the pipe have the accurate size , good centralizer.
6. Thread connector :Heat and Nitrogen treatment , so the pipe is more durable and easier to load and unload .
7. Friction welding.

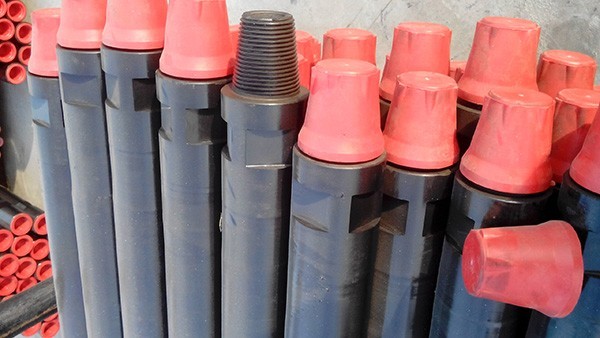

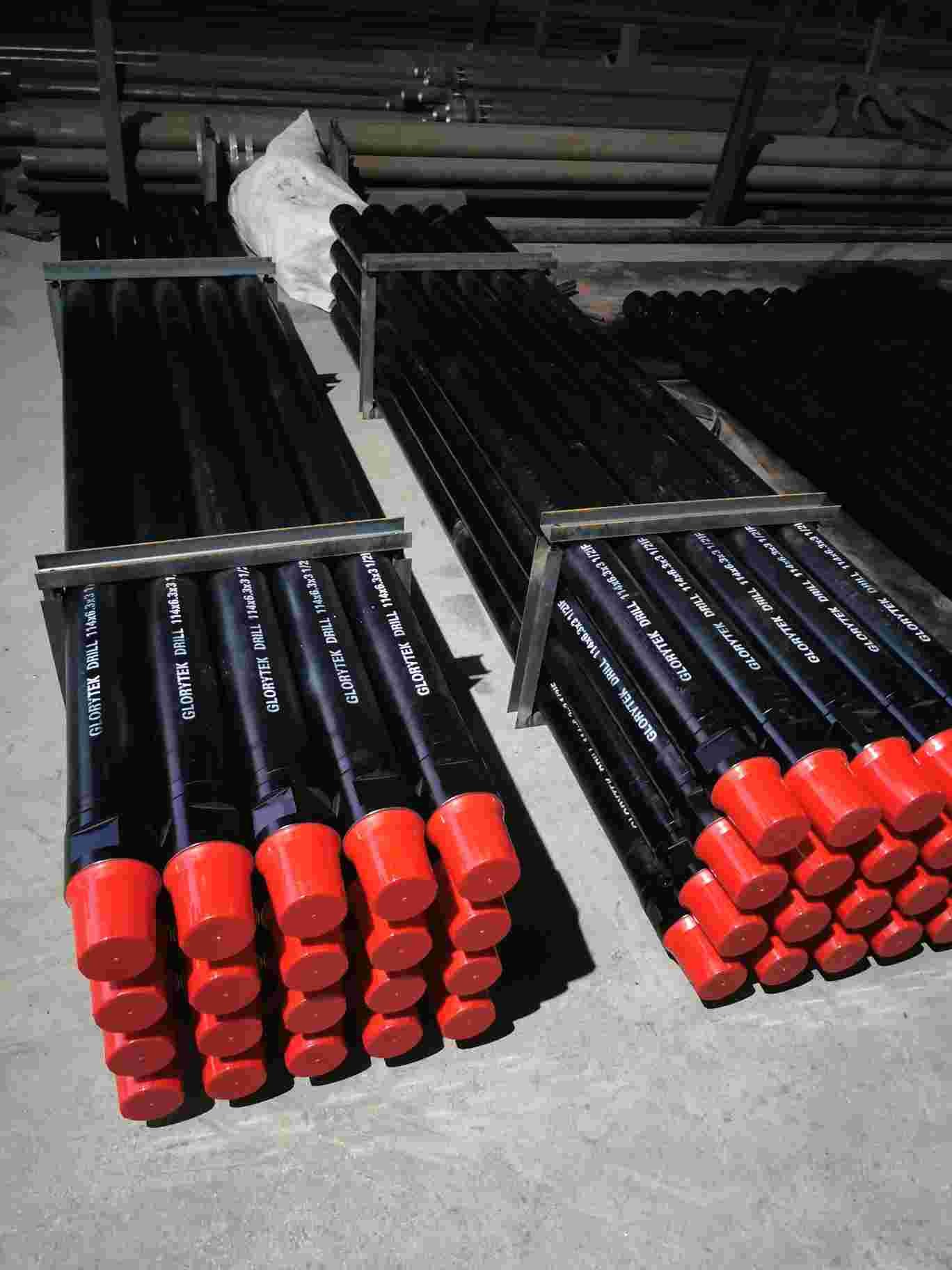

5.The Photo of products



Company Profile

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

Certificate
