portable hydraulic trailer type drilling rig 130m deep water well drilling machine
1.Description:
>>The walking speed is 30km/h using brand diesel engines and equipped with electric starting, which is convenient to start and reduces the labor intensity of the operator
>>Sustainable and efficient work
The drilling rig adopts hydraulic working principle and is equipped with a radiator, ensuring sustainable and efficient operation of the drilling rig
>> Easy to remove drill pipe
High power hydraulic motor with reversible power head
>>Good slag removal effect
Equipped with water pump, reasonable structure and compact layout
>>Easy to move
Equipped with traction bars and wheeled walking mechanisms, the drilling rig is easy to move
2.Applications:
We can provide custom rotary drilling rig according to customer requirements Such as depth, color, etc.
Currently, we has advanced production technology and advanced product testing equipment, scientific and sound corporate management.
3.Specifications:
| The hole diameter (mm) |
100-219 |
| Drilling depth (m) |
130 |
| Drill pipe diameter (mm) |
φ76, φ89 |
| Drill pipe length(m) |
1.5m, 2.0m |
| One-time stroke (m) |
2.3 |
| Walking speed(km/h) |
3 |
| Climbing angles(Max.) |
30 |
| Air pressure(MPA) |
1.45-2.5 |
| Air consumption (m3 /min) |
15-29 |
| Rotating speed(rpm) |
40-65 |
| Rig lifting force(T) |
6 |
| Rapid rise speed(m/min) |
15 |
| Fast feeding speed(m/min) |
23 |
| High leg stroke(m) |
0.6 |
| The feeding efficiency(m/h) |
10-35 |
| Diesel engine Brand |
Changchai |
| Power(HP) |
32 |
| Rotating torque(N.m) |
2200-3000 |
| Dimension(mm) |
3850x1560x2050 |
| The weight (T) |
3 |
|

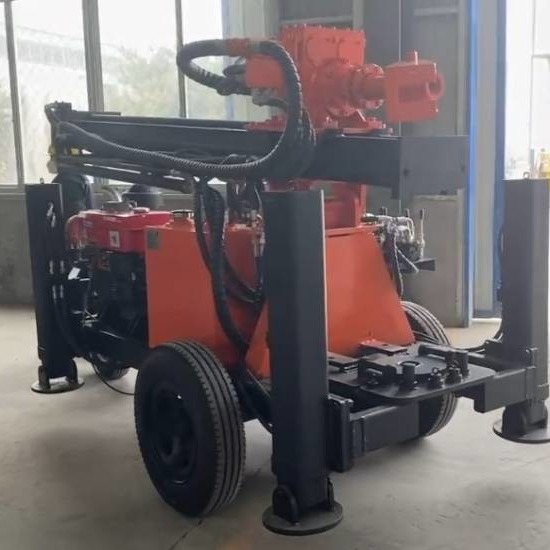

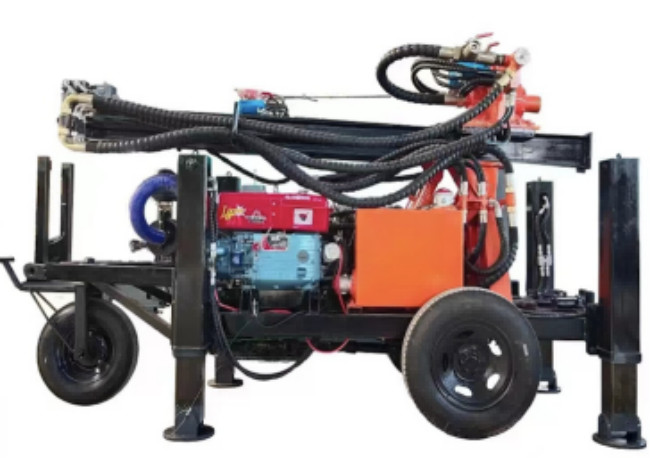

The Photo of products
Related Product
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ:
Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome to our factory.
