Full Hydraulic Crawler Pneumatic Water Bore Well Drilling Rig

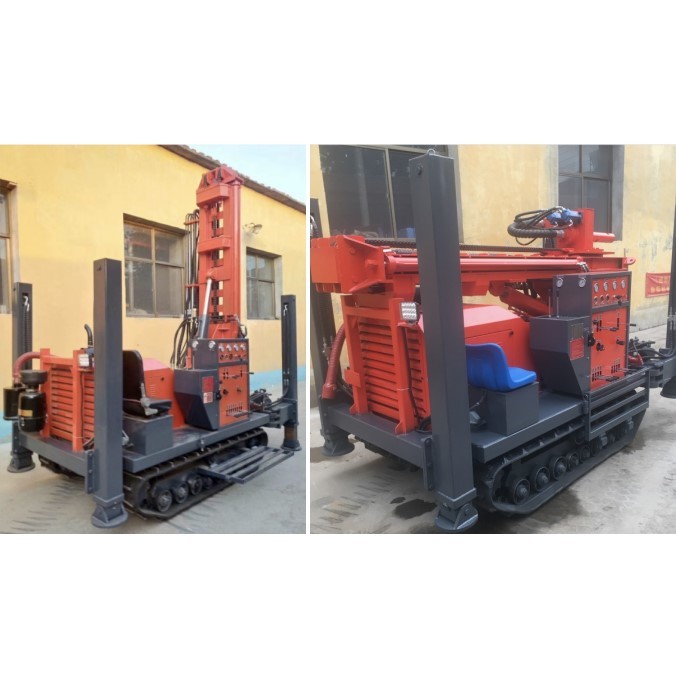

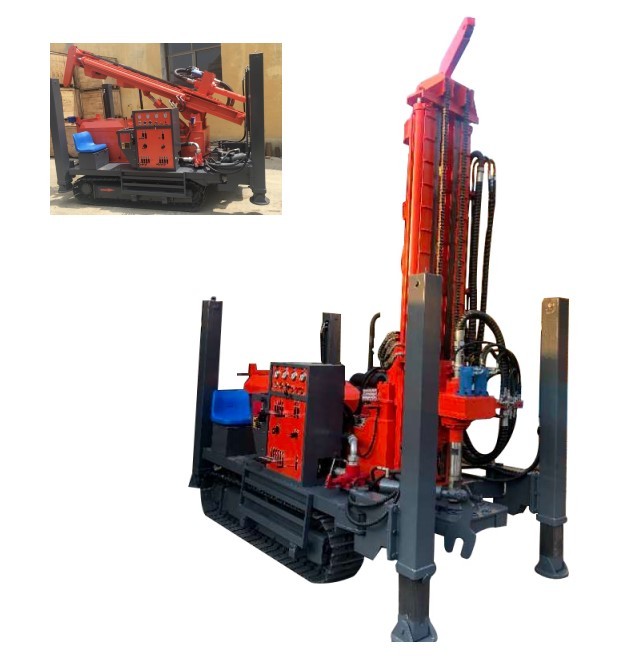

Drilling Rig Show:
Application:
Widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.
Description of GL-200S:
● Max. Drilling Depth:200m.
●With automatic oil supply mechanism, improving drilling efficiency, reducing labor intensity.
●Drilling Efficiency is 10-35 M/h, can achieve non-stop inverted bar, be easy to operate, safe and reliable.
●Keywords: Deep Water Well Drilling Rigs, Borehole Drilling Rig, Water Well Drilling Machine, Drilling Equipment, Bore Hole Drilling, Drilling Rig, Drilling Machine, Crawler Mounted, Water Well Drilling Rig, Machine.
Specifications:
(For reference,more details please contact us)
| Technical Parameter |
| Max. Drilling Depth |
200m |
| Drilling Hole Dia. |
90-315mm |
| Working Pressure |
1.7-3.0Mpa |
| Air Consumption |
17-35m3/min |
| Drill Pipe Length |
3m |
| Drill Pipe Dia. |
76mm/89mm |
| Axial Pressure |
4T |
| Lifting Force |
14T |
| Lifting Speed |
2.5m/min |
| Push Speed |
0.5-5m/min |
| Fast lifting Speed |
35m/min |
| Max.Rotation Torque |
4500-6500Nm |
| Rotation Speed |
50-70r/min |
| Working Hoist Lifting Force |
1.5T |
| Mud Pump Flow Rate |
20L/min (optional) |
| High Pressure Hydraulic Legs Stroke |
1.5m |
| Drilling Efficiency |
10-35m/h |
| Travel Speed |
2Km/h |
| Grade ability |
30° |
| Weight |
5.4T |
| Dimension |
3.9x1.7x2.15m |
| Diesel Engine |
77KW(Yuchai ) |
| Application formation |
loose layer or bedding rock |
| Drilling Method |
Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
|
|
Packaging & Shipping
1.We Send the machine picture which you order .
2.Then packing it with standard export wooden box after you confirm machine is ok .
3.Different machines package will be different . we supply export wooden box ,carton box package . if big machine and production line machine it will be loaded in the container directly .
Related Product
Support air drilling or mud drilling equipment and drilling tools.
