High Efficiency 400m Deep Crawler Water Well Drilling Rig bore well drilling machine
1.Description:
-GL400S water well drill rig with steel tracks.This model can drill max. 400m deepth.
-Our water well drilling rig is multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method. The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose. The theory designed drilling depth is 100 - 600 meters.
-They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock information connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
2.Applications:
Drilling wells for urban and rural life
Drilling wells for agricultural irrigation and industries
Drilling for geotechnical survey
Drilling construction engineering holes
Drilling geothermal pump wells
3.Specifications:
(For reference,more details please contact us)
| Technical Parameter |
| Max drilling depth |
400m |
| Drilling diameter |
105-350mm |
| Air pressure |
1.25-3.5Mpa |
| Air consumption |
16-55m³/min |
| Rod length |
3m/6m |
| Rod diameter |
76/89/102/114mm |
| Main shaft pressure |
6T |
| Lifting force |
28T |
| Fast lifting speed |
24m/min |
| Fast forwarding speed |
50m/min |
| Rotary torque |
10000 N.M |
| Rotary speed |
30/170r/min |
| Winch lifting force |
3T |
| High leg stroke |
1.5m |
| Drilling efficiency |
10-35m/h |
| Moving speed |
2.5Km/h |
| Uphill angle |
21° |
| Weight of the rig |
9.2T |
| Dimension |
5.4m x 1.7m x 2.35m |
| Working condition |
loose layer or bedding rock |
| Drilling method |
Top Hammer Hydraulic Rotating and feeding, |
| Down the hole hammer or mud pump drilling |
| Suitable hammer |
Medium and high pressure DTH hammer |
| Optional accessories |
Mud pump, centrifugal pump, generator, foam pump |
| Diesel Engine |
90KW-6 Cylinders |
|
|

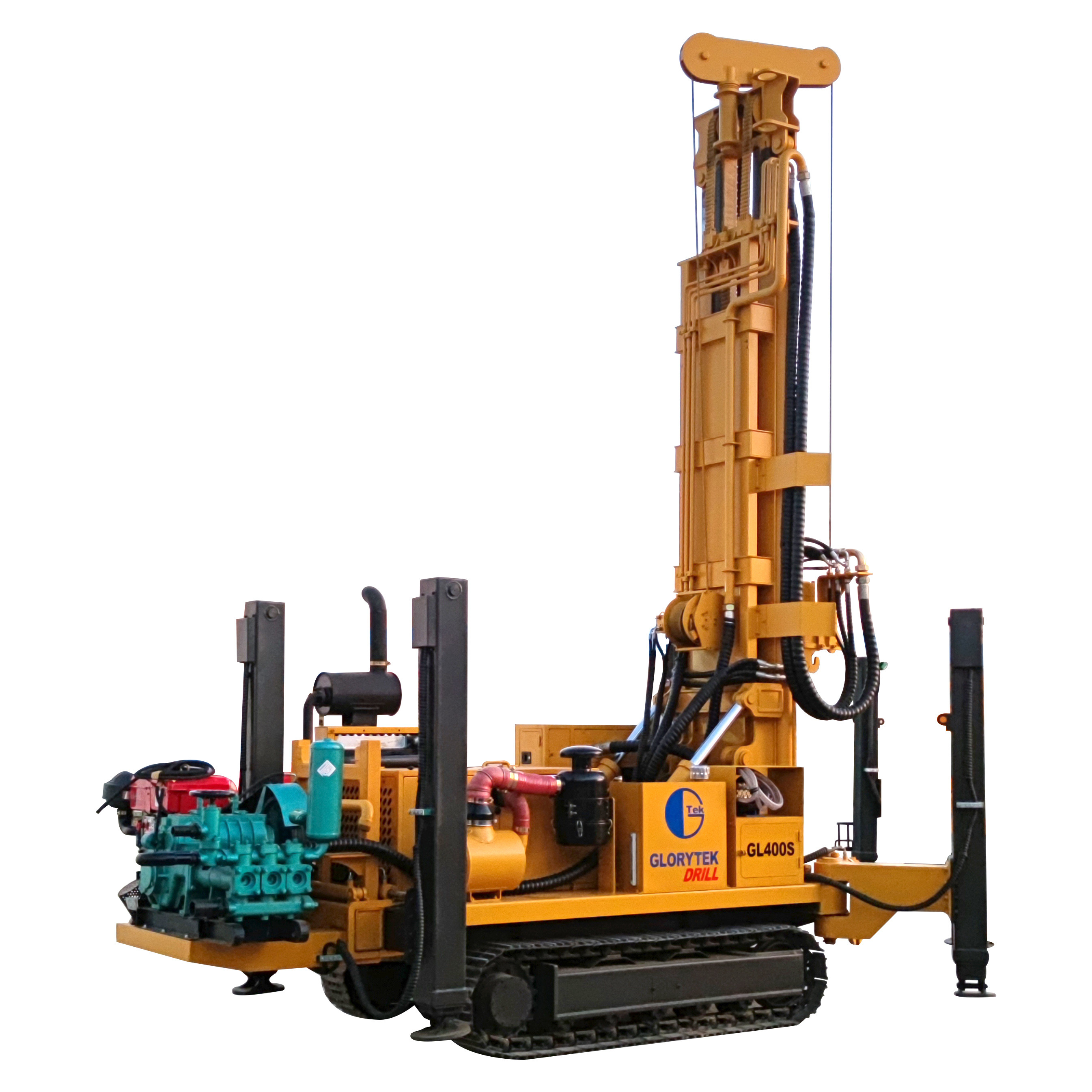

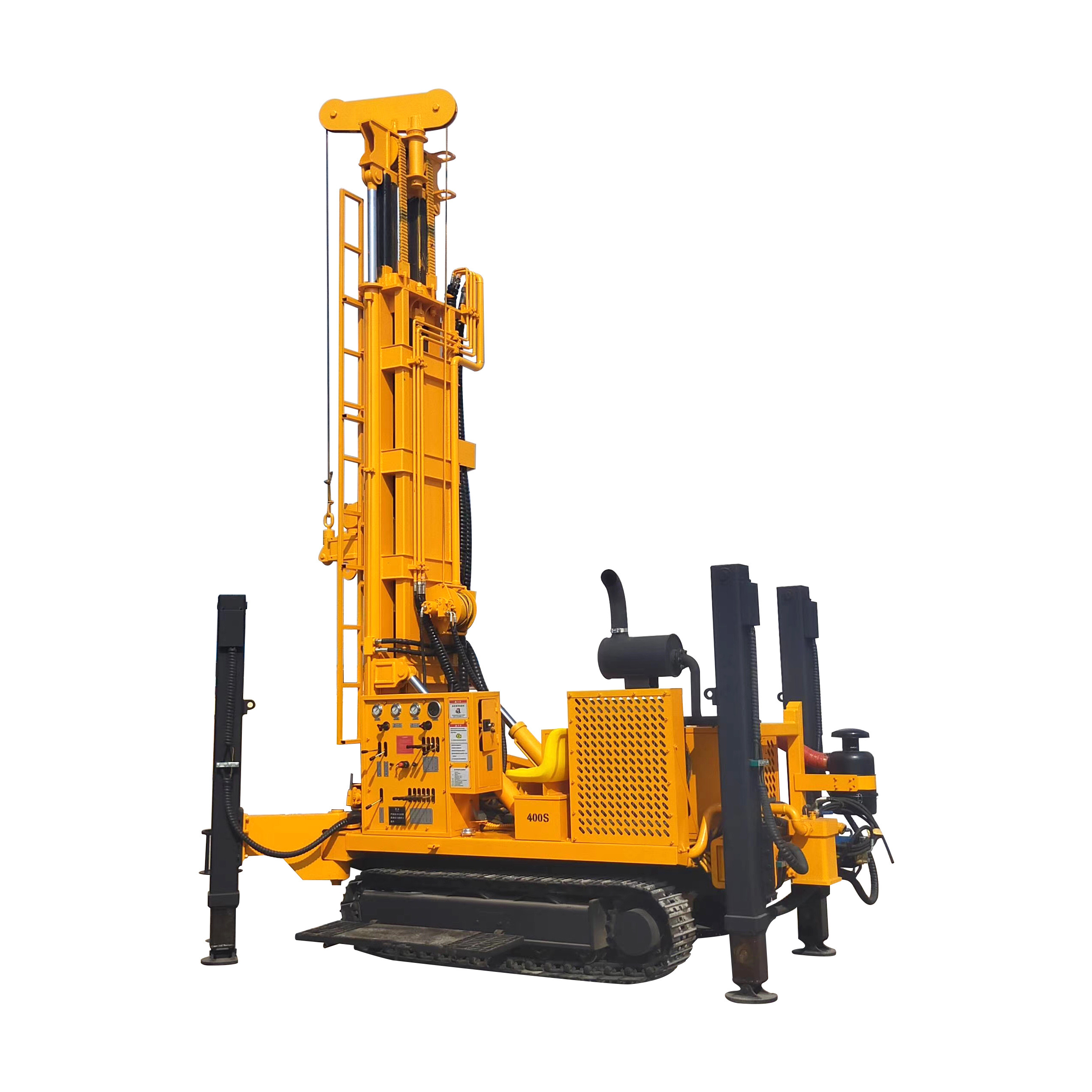

The Photo of products
Related Product
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
