Crawler water well drilling rig for sale 500m depth GL500S Diesel engine well water drilling rigs
1.Description:
-GL-50D mini water well drill rig with diesel engine.This model can drill max. 300m deepth.
-Our water well drilling rig is multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method. The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose. It adopts China famous brand 50H Pdiesel engine, which features strong power and ability to meet the working require-ment of various operation environment.
-They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock information connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
2.Applications:
Drilling wells for urban and rural life
Drilling wells for agricultural irrigation and industries
Drilling for geotechnical survey
Drilling construction engineering holes
Drilling geothermal pump wells
3.Specifications:
(For reference,more details please contact us)
| Technical Specification |
| Model |
GL-50D |
| The weight (T) |
1.8 |
| Tower weight (removable) (kgs) |
220 |
| The hole diameter (mm) |
70-180 |
| Drilling depth (m) |
300m at 90mm hole |
| Feeding distance (m) |
2.3m/3.3m |
| Drilling angle |
horizontal or vertical |
| Power (hp) |
Yuchai 50HP (electric start diesel engine) |
| Drill pipe diameter (mm) |
76/89 |
| Drill pipe length (m) |
2.0/3.0 |
| Rig lifting force (T) |
6 |
| Chassis |
rubber crawler |
| Rotation torque (N.m) |
1700 |
| Dimension(walking state) (mm) |
3300*1200*1300 |
| Drilling method |
Down the hole hammer |
|
|

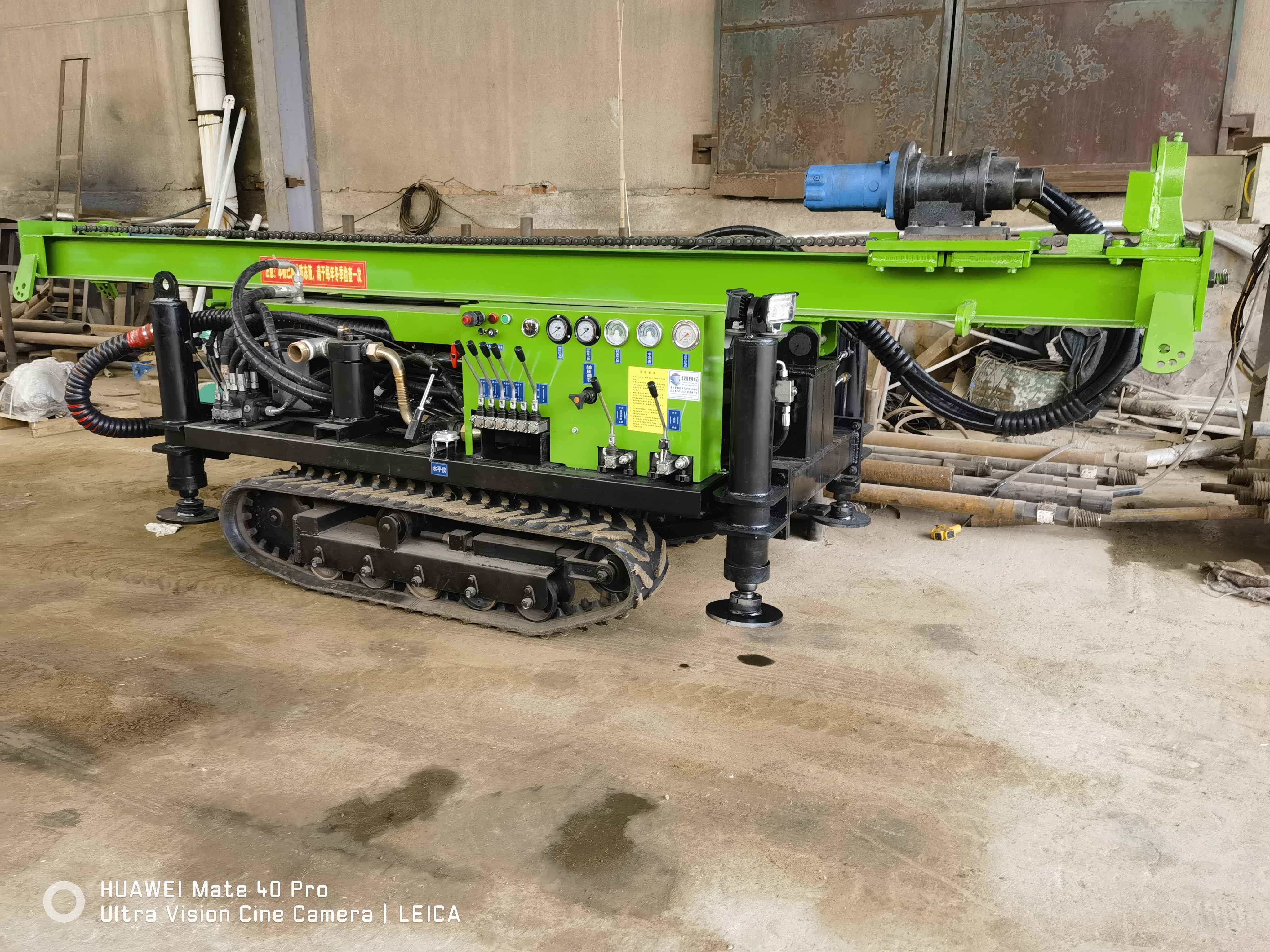

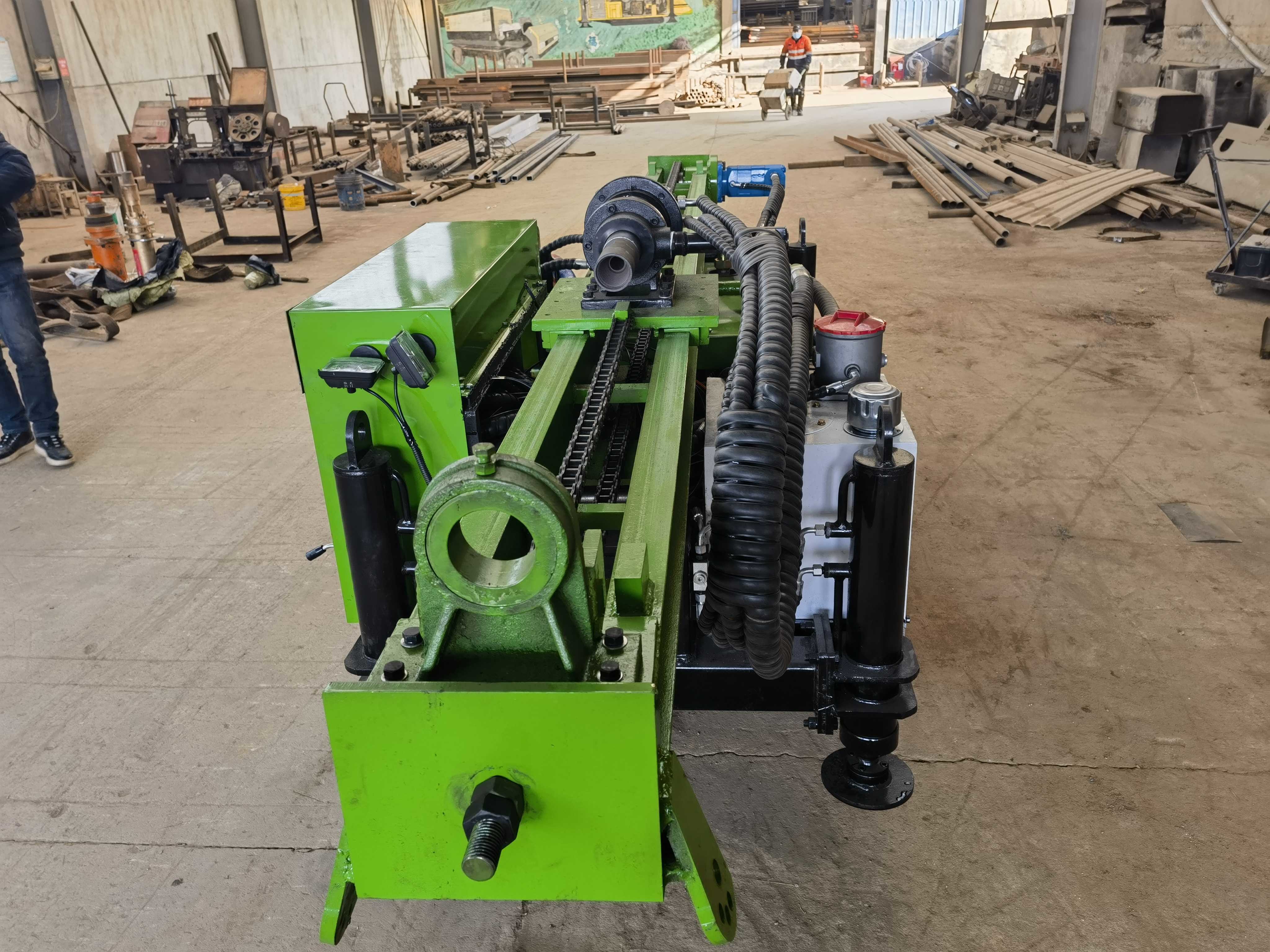

The Photo of products
Related Product
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
