GL-IIA 300m depth Truck Mounted Water Well Drilling Drill Rig for Hard rocks
1.Description:
-GL-IIAuses truck chassis, drilling rig and mud pump are installed on the chassis, Reasonable and compact layout, easy to operate.
-GL-IIA uses mechanical power head
-Configuring BW-320 mud pump, high pressure, big flow, it ensures drill depth and diameter.
-Drilling rig self-equipped with mobile devices, drilling rig can be achieved move back and forth, and it is convenient for
wellhead operation.
-Drilling rig tower hydraulic up and down and automatic telescopic drilling tower, safe and convenient operation.
2.Applications:
It is suitable for geological survey exploration, basic exploration of roads and high-rise buildings, and various concrete structure inspection hole, river embankments, subgrade grouting hole and direct grouting, civil water wells and ground temperature central air conditioning.
3.Specifications:
(For reference,more details please contact us)
| GL-IIA Drill Rig |
| Engine power |
Yuchai YC6A210D 155KW |
| Feed force/pull back force |
320/320KN |
| Rated torque |
1300N·m |
| Main Shaft Rotating Speed |
0-48,0-96r/min |
| Feeding Stroke |
3300mm |
| Guide hole diameter |
Φ150(185)mm |
| Penetration Angle |
8-20° |
| Hydraulic system pressure |
20Mpa |
| Travelling Speed |
2-2.6Km/h |
| Structure |
Rubber track, mud pump all-in-one machine |
| Dimensions |
2.85(L)×2.25(W)×2.4(H)m |
| weight |
8.4T |
| Mud pump |
| Model |
BW-320 |
| Max. Flow Rate |
320L/min |
| Max. pressure |
7Mpa(10Mpa) |
| Pulping system |
| Engine parameters |
4KW diesel engine |
| Pulping pump parameters |
30m3/h |
| Slurry tank capacity |
2m3 |
| Volume |
6m3/h |
| Drilling Tools |
| Drill Rod |
Φ73×3000mm |
| Pilot bit |
Φ130(150)mm |
| Fluted Backreamer |
Φ325 Φ400 Φ500 Φ600 Φ720Φ830 |
| Measurement and control instrument |
Optional |
|
|

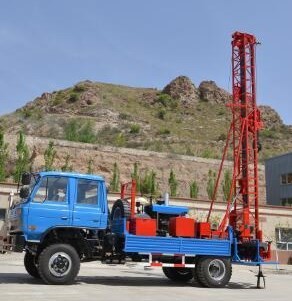

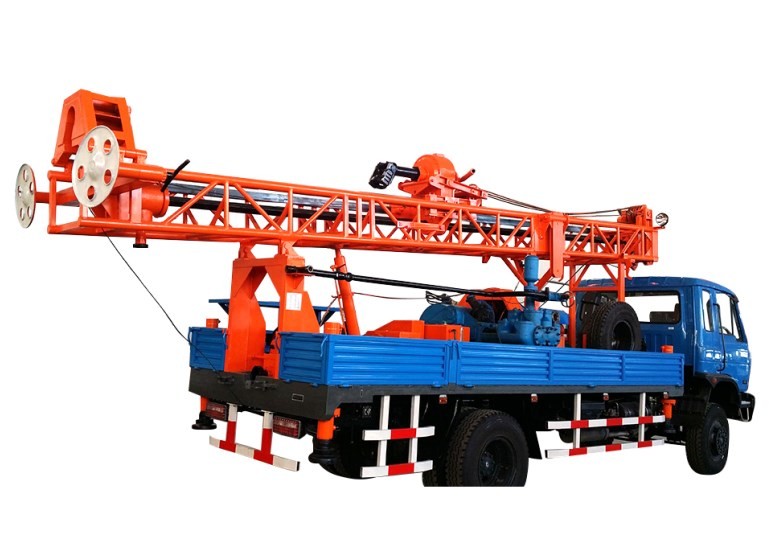

The Photo of products
