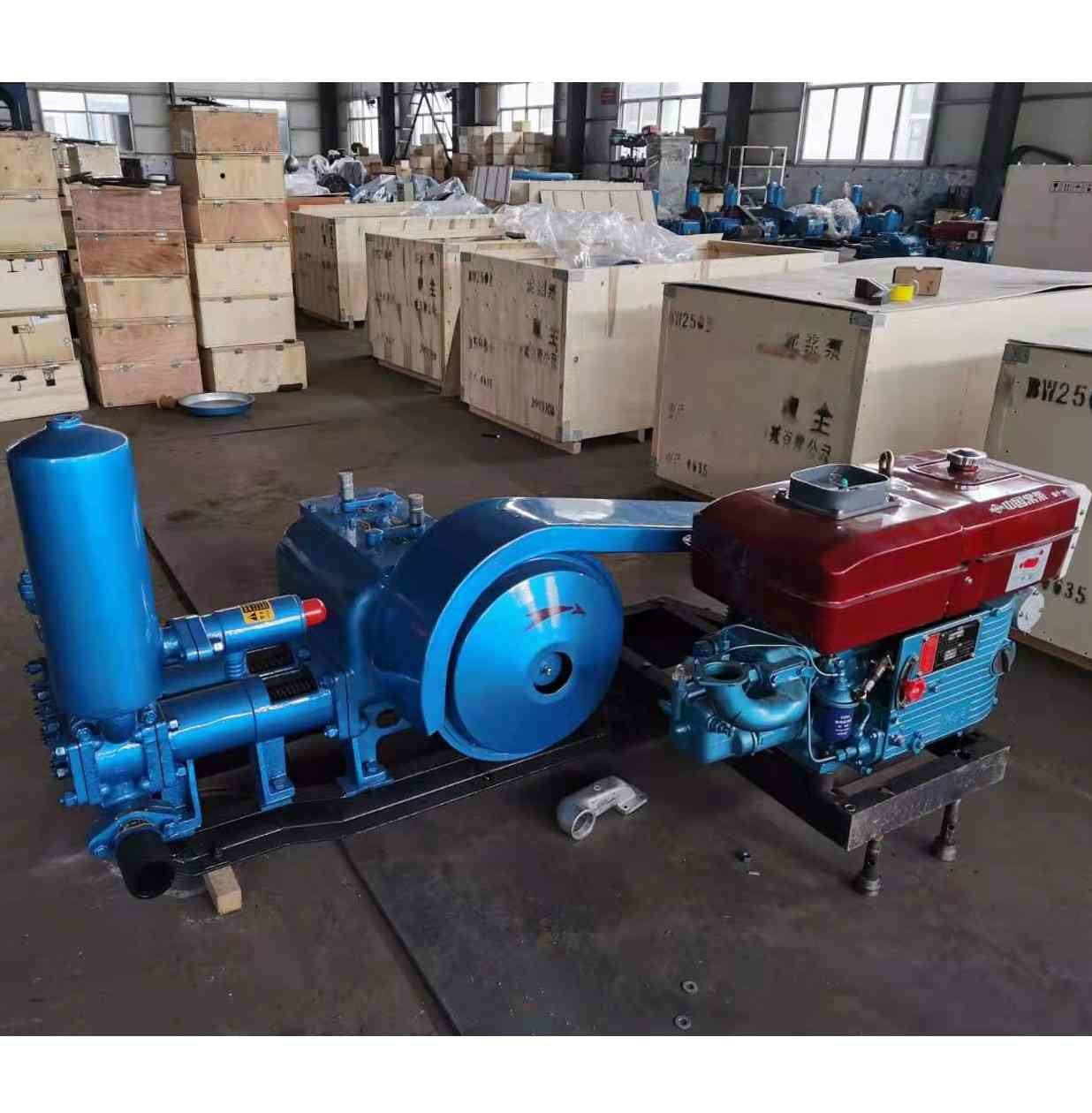

BW Series Petroleum Drilling Mud Equipment mining mud pump
1.Description:
Mainly used for 200-600 meters depth big hole drilling for water and geologic well mud pumping service, may speed up the drilling speed.
2.Application Industry:
BW series mud pump is widely used in mining, drilling, coal, railway, highway, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement works.
3.Structure Features
a.Horizontal double cylinder & three cylinder, single-acting&double-acting reciprocating piston pump.
b.Simple and compact structure, light weight, long service life of wearing parts, easy operation.
c.Extending service life of pump greatly by using bi-metal liner.
4.Specifications:
|
Type:BW250
|
Horizontal double cylinder reciprocating single acting piston pump
|
|
Cylinder Liner Dia(mm)
|
80
|
65
|
|
Piston Stroke(mm)
|
100
|
|
Theoretical Flow Rate(L/min)
|
250
|
145
|
90
|
52
|
166
|
96
|
60
|
|
|
Rated Pressure(MPa)
|
2.5
|
4.5
|
6
|
6
|
4
|
6
|
7
|
|
|
Storkes Per Minute
|
200
|
116
|
72
|
42
|
200
|
116
|
72
|
|
|
Input Power(kW)
|
15
|
|
Overrall Dimension(L×W×H) (mm)
|
1000×995×650
|
|
Weight(kg )
|
760
|
|
|

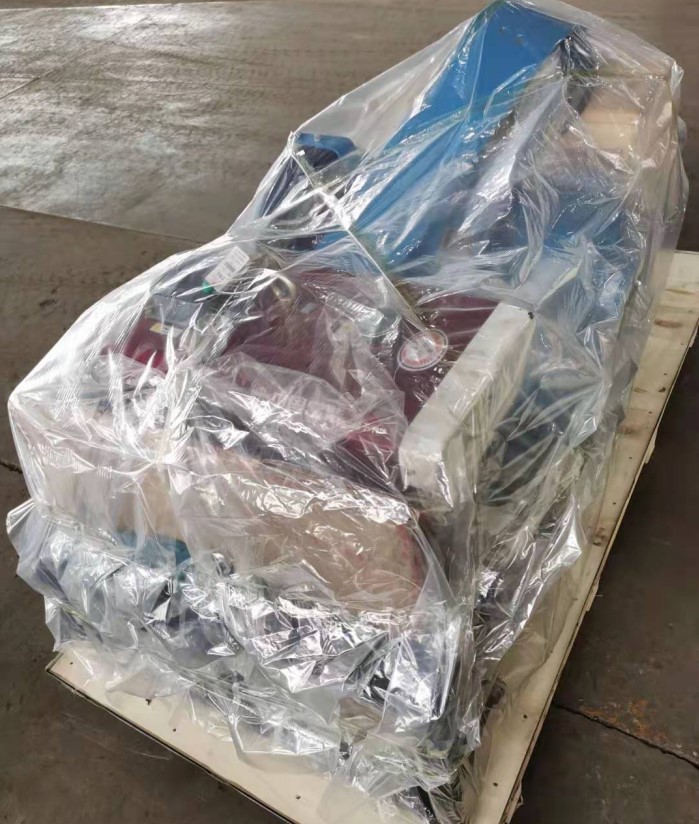

5.Packing and Shipping
6.Related Product:
drilling tools:drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit etc.
7.Company Profile
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before
shipping out.
