Name: GL260T Trailer Well Digging Equipment 260m Depth 140-305mm Hole Diameter
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL260T
Price: 23,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

The Hole Diameter: 140-305mm

Drilling Depth: 260m

Drill Pipe Diameter: φ76 ,φP89

Drill Pipe Length: 1.5m, 2.0m, 3.0m

Highlight:

260m depth well digging equipment

305mm hole diameter well digging equipment

geothermal water well rotary drilling machine

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: GL260T

Payment & Shipping Terms

Packaging Details: seaworthy packing

Delivery Time: 15-25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500 sets per year

Gallery

GL260T Trailer Well Digging Equipment 260m Depth 140-305mm Hole Diameter

Product Description

GL260T Trailer Water Well Drill Rig

Main Application

◆ Drilling wells for urban and rural life
◆ Drilling wells for agricultural irrigation and industries
◆ Drilling for geotechnical survey
◆ Drilling construction engineering holes

◆ Drilling geothermal pump wells

Product Parameter

The hole diameter (mm)	140-305
Drilling depth (m)	260
Drill pipe diameter (mm)	φ76 ,φP89
Drill pipe length(m)	1.5m, 2.0m, 3.0m
One-time stroke (m)	3.3
Walking speed(km/h)	2.5
Climbing angles(Max.)	30
Air pressure(MPA)	1.7-3.0
Air consumption (m3 /min)	17-31
Rotating speed(rpm)	45-70
Rig lifting force(T)	15
Rapid rise speed(m/min)	24
Fast feeding speed(m/min)	28
Hoisting force of winch (T)	1.5
High leg stroke(m)	1.4
The feeding efficiency(m/h)	10-35
Diesel engine Brand	Xichai
Power(kw)	70
Rotating torque(N.m)	4000-5300
Dimension(mm)	4000x1850x2300
Width of loading(m)	2.73
The weight (T)	6.5
Equipped with hammer	Medium and high air pressure series

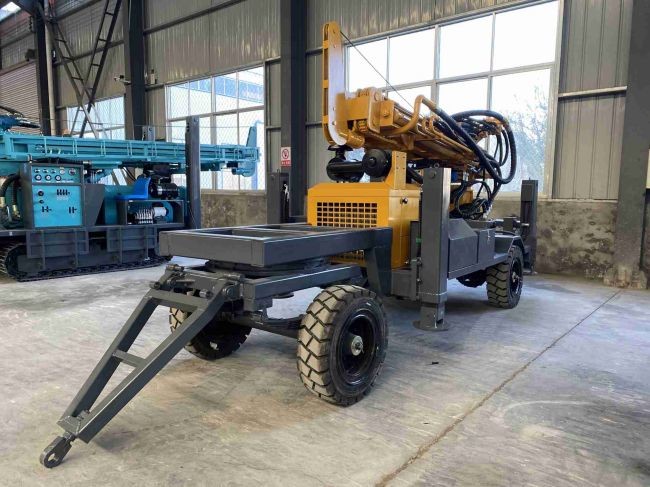

Product Picture

GL260T Trailer Well Digging Equipment 260m Depth 140-305mm Hole Diameter 0

Company Profile

Glorytek Industry (Beijing) Co., Ltd.

Glorytek Industry (Beijing) Co., Ltd. Is a professional manufacturer and supplier of top quality drilling equipment and drilling parts with over 20 years experience. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per specified requirements from our clients.
Our products are widely used in the scope of water well drilling project, geological exploration and SPT, anchor grouting project, side slope protection engineering, oil and gas engineering, rock drilling and blasting operations, hdd( horizontal directional drilling) for city construction pipeline laying project etc.
Our factory covers an area of 250,00 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. Over 200 sets and more than 600 employees.
