Name: Geotechnical Survey Well Drilling Rig Truck Mounted For 150mm Hole Diameter
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL-ⅡA
Price: 72,500.00 USD
Availability: InStock

Geotechnical Survey Well Drilling Rig Truck Mounted For 150mm Hole Diameter

1 set

MOQ

USD60000-85000 per set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

The Hole Diameter: 150mm

Engine Power: 155KW

Guide Hole Diameter: Φ150(185)mm

Weight: 8.4T

Dimensions: 2.85(L)×2.25(W)×2.4(H)m

Highlight:

geotechnical survey well drilling rig

150mm hole diameter well drilling rig

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: GL-ⅡA

Payment & Shipping Terms

Packaging Details: Seaworthy packing

Delivery Time: 15-25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500 sets per year

Gallery

Geotechnical Survey Well Drilling Rig Truck Mounted For 150mm Hole Diameter

Product Description

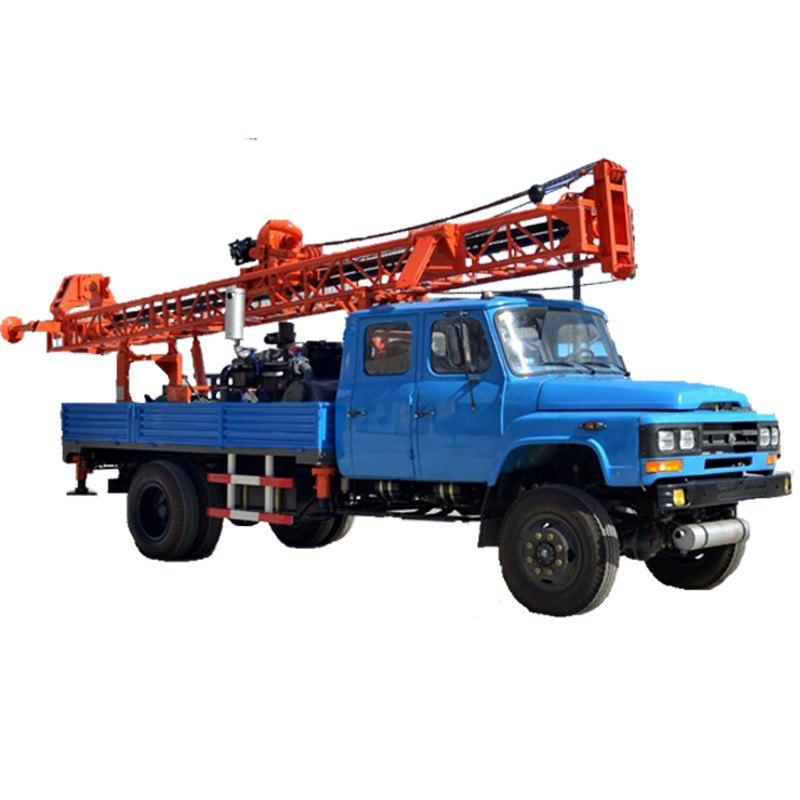

GL-IIA Truck Mounted Drilling Rig

Description

◆Drilling wells for urban and rural life
◆Drilling wells for agricultural irrigation and industries
◆Drilling for geotechnical survey
◆Drilling construction engineering holes
◆Drilling geothermal pump wells

Technical Date

Drill Rig
Engine power	Yuchai YC6A210D 155KW
Feed force/pull back force	320/320KN
Rated torque	1300N·m
Main Shaft Rotating Speed	0-48,0-96r/min
Feeding Stroke	3300mm
Guide hole diameter	Φ150(185)mm
Penetration Angle	8-20°
Hydraulic system pressure	20Mpa
Travelling Speed	2-2.6Km/h
Structure	Rubber track, mud pump all-in-one machine
Dimensions	2.85(L)×2.25(W)×2.4(H)m
weight	8.4T
Mud pump
Model	BW-320
Max. Flow Rate	320L/min
Max. pressure	7Mpa(10Mpa)
Pulping system
Engine parameters	4KW diesel engine
Pulping pump parameters	30m³/h
Slurry tank capacity	2m³
Volume	6m³/h
Drilling Tools
Drill Rod	Φ73×3000mm
Pilot bit	Φ130(150)mm
Fluted Backreamer	Φ325 Φ400 Φ500 Φ600 Φ720Φ830
Measurement and control instrument	Optional

Product Picture

Geotechnical Survey Well Drilling Rig Truck Mounted For 150mm Hole Diameter 0

Company Profile

Glorytek Industry (Beijing) Co., Ltd.

Glorytek Industry (Beijing) Co., Ltd. is a renowned manufacturer and supplier of exceptional drilling equipment and drilling parts, boasting an extensive track record of over two decades. Our distinguished R&D team and engineers, with their vast expertise, provide invaluable support and assistance, guaranteeing the successful completion of every project, meticulously tailored to meet our clients' specific requirements.

Our cutting-edge products find wide-ranging applications in water well drilling projects, geological explorations and SPT (Standard Penetration Test), anchor grouting projects, side slope protection engineering, oil and gas engineering, rock drilling, and precise blasting operations, as well as hdd (horizontal directional drilling) for city construction pipeline laying projects, among others.

Geotechnical Survey Well Drilling Rig Truck Mounted For 150mm Hole Diameter 2

Geotechnical Survey Well Drilling Rig Truck Mounted For 150mm Hole Diameter 3
