Name: Urban GL-III 400m Depth Water Well Drill Rig 120-1500mm Hole Diameter
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL-III
Price: 383,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

The Hole Diameter: 120-1500mm

Dilling Depth: 400m

ERun Of Rod: 3、4(m)

Drill Rod Diameter: φ73 φ89 φ95 φ133(mm)

Drill Head Inside Diameter: φ80 φ120

Dimensions: （L-W-H) Working Conditions 9600×2950×7900(mm)

Transport Status:: （L-W-H） 10200×2470×3300(mm)

Rig Mass: 12500(Kg)

Power: 84(kW)

Highlight:

400m depth water well drill rig

1500mm dia water well drill rig

urban truck mounted borehole drilling rig

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: GL-III

Payment & Shipping Terms

Packaging Details: Seaworthy packing

Delivery Time: 15-25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500 sets per year

Gallery

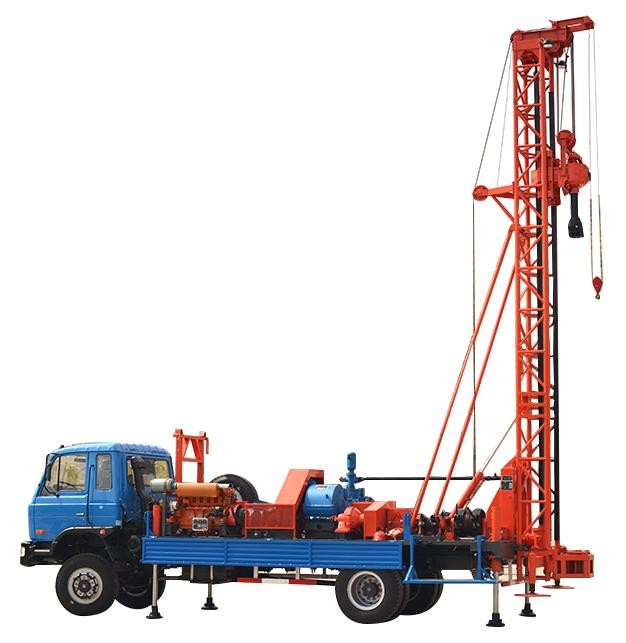

Urban GL-III 400m Depth Water Well Drill Rig 120-1500mm Hole Diameter

Product Description

GL-III Truck Mounted Drilling Rig

Description

◆Drilling wells for urban and rural life

◆Drilling wells for agricultural irrigation and industries

◆Drilling for geotechnical survey

◆Drilling construction engineering holes

◆Drilling geothermal pump wells

Technical Date

Drilling Parameter
Hole diameter:	120--1500(mm)
Hole depth:	400(m)
Run Of Rod:	3,4(m)
Drill rod diameter:	φ73 φ89 φ95 φ133(mm)
Drilling Technology:	Normaland Reverse Circulation for both Mud and Air
Down-The-Hole hammers:	Middle-High-Pressure Air
Performance parameter
Drill Head Inside Diameter:	φ80 φ120
Drill Head lifting Force(kN):	130
Drill Head Spin Speed:	A(Forward:20-33-73,Reverse:13-23-47r/min)
	B(Forward:41-66-146,Reverse:26-43-94r/min)
	B(Forward:36-58-127,Reverse:23-37-80r/min)
Shape Parameters
Dimensions:	(L-W-H) Working conditions 9600×2950×7900(mm)
Transport status:	(L-W-H) 10200×2470×3300(mm)
Supporting Form:	Hydraulic Unit
Mast Up-Down:	Hydraulic Unit
Rig mass:	12500(Kg)
Chassis:	Dongfeng EQ 1141/JiefangCA1127 (four-wheel drive)
Power Unit:	Diesel Engine
Power:	84(kW)
Pump:	BW600/30 Mud Pump
Flow(m³/h):	720 513 335
Pressure(MP):	3 4 5
Main Hoist Lifting Force:	25(kN)
Auxiliary Hoist Lifting Force:	8(kN)
Notes: Drill head spin speed can be selected, A is normal

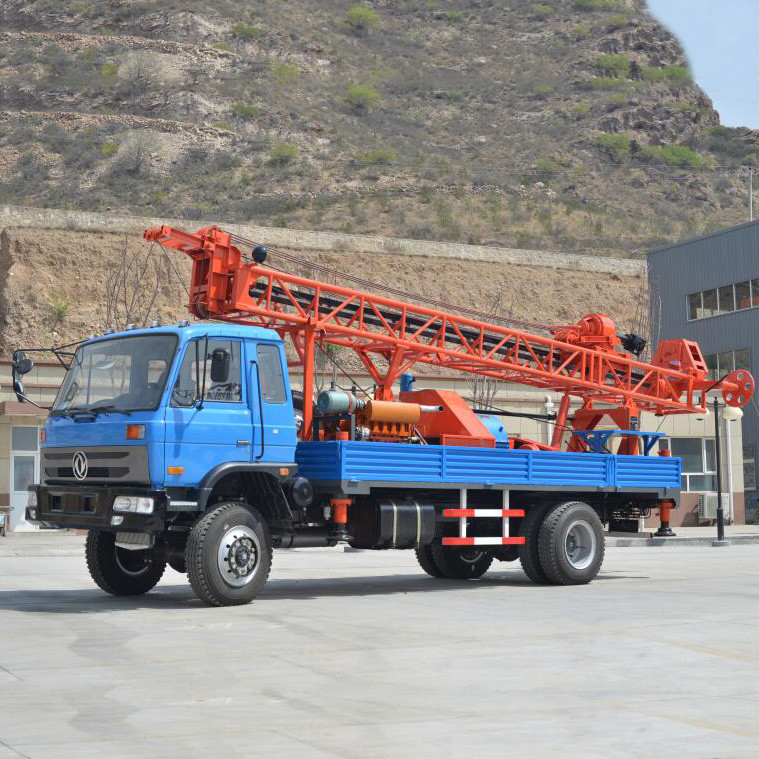

Product Picture

Urban GL-III 400m Depth Water Well Drill Rig 120-1500mm Hole Diameter 0

Company Profile

Glorytek Industry (Beijing) Co., Ltd.

Glorytek Industry (Beijing) Co., Ltd. is a renowned manufacturer and supplier of exceptional drilling equipment and drilling parts, boasting an extensive track record of over two decades. Our distinguished R&D team and engineers, with their vast expertise, provide invaluable support and assistance, guaranteeing the successful completion of every project, meticulously tailored to meet our clients' specific requirements.

Our cutting-edge products find wide-ranging applications in water well drilling projects, geological explorations and SPT (Standard Penetration Test), anchor grouting projects, side slope protection engineering, oil and gas engineering, rock drilling, and precise blasting operations, as well as hdd (horizontal directional drilling) for city construction pipeline laying projects, among others.

Urban GL-III 400m Depth Water Well Drill Rig 120-1500mm Hole Diameter 2

Urban GL-III 400m Depth Water Well Drill Rig 120-1500mm Hole Diameter 3
