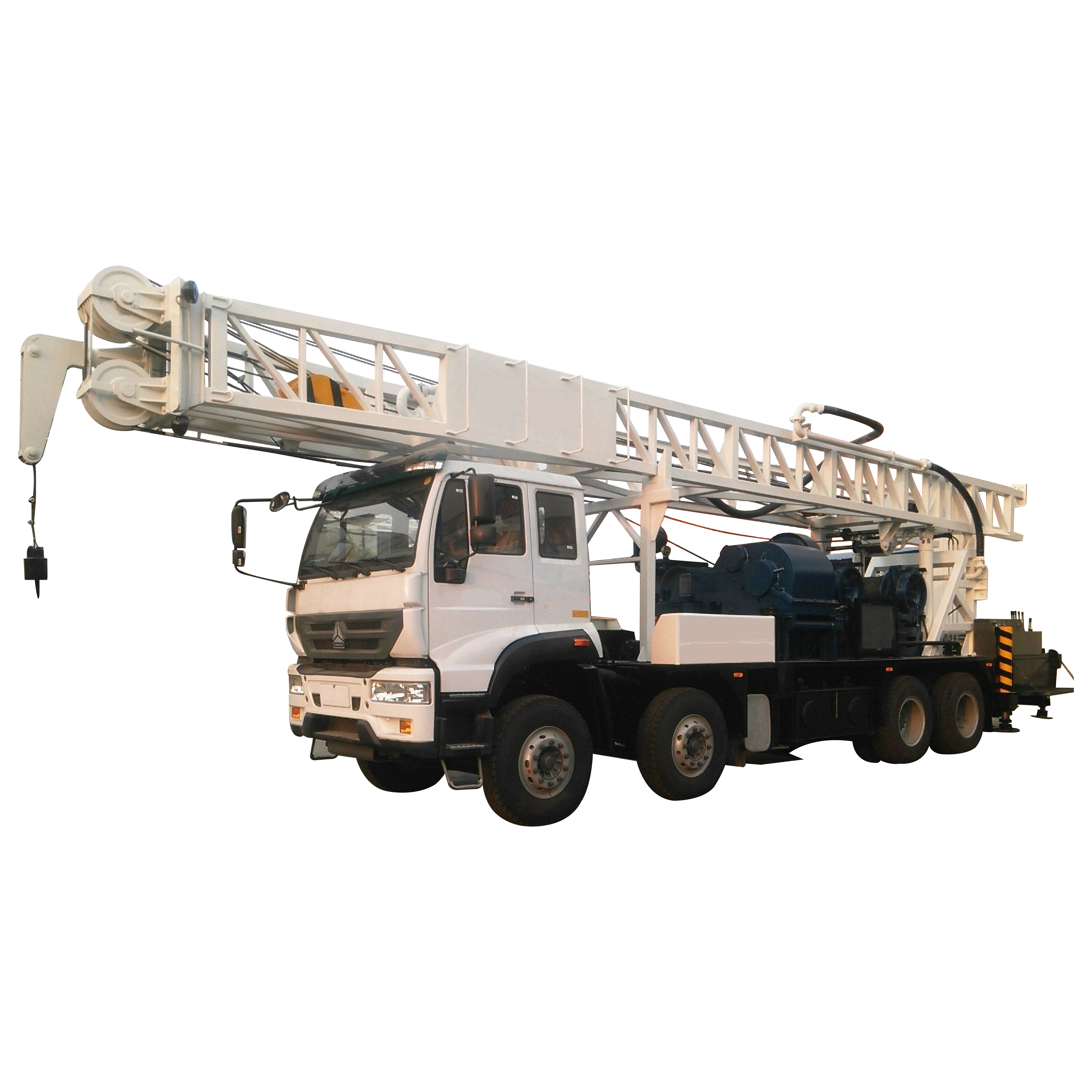

1. C600HW truck mounted drilling rig is a rotary table drilling rig.
2. The truck chassis adopts the special crane chassis of brand HOWO 6*4 TRUCK and the main drive system, the transfer case, gearbox, double-hydraulic winch unit, mud pump, rotary table, drilling tower, are set up on the chassis.
3. This rig is a rotary drilling rig with directional circulation. It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
4. There is a independent diesel power: Cummins 132Kw;
5. The main drive of rig is mechanical and the four hydraulic leveling legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated. 6. The rig can carry out down-the-hole hammer drilling if add Compressor(There is no enough room for compressor on the chassis).
6. The appearance of rig is pretty. It is high efficiency because of having a larger torque of the rotary table and is mainly used for water well in industry and agriculture, national defense building foundation, and geothermic well and other foundation working, it is popular at home and abroad.
