Home /Products/Water Well Drill Rig/Diesel Engine GL260S Crawler Mounted Drill Rig 260m Max Depth

Diesel Engine GL260S Crawler Mounted Drill Rig 260m Max Depth

1 set
MOQ
USD25000-27500 per set
Price
Diesel Engine GL260S Crawler Mounted Drill Rig 260m Max Depth
Features Gallery Product Description Request A Quote
Features
Specifications
Max Drilling Depth: 260m
Drilling Diameter: 105-273mm
Air Pressure: 1.2-3.5mpa
Rod Length: 3m
Rod Diameter: 76-89mm
The Engine: 76kw
Overall Dimensions: 2000*1250*1950mm
Highlight:

diesel engine crawler mounted drill rig

,

260m depth crawler mounted drill rig

,

260m crawler water well drilling rig
Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL260S
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets per year
Product Description

GL260S Crawler Water Well Drilling Rig






Main features

◆Drilling wells for urban and rural life

◆Drilling wells for agricultural irrigation and industries
◆Drilling for geotechnical survey
◆Drilling construction engineering holes
◆Drilling geothermal pump wells





Technical Date





Main Parameter
Max drilling depth M 260
Drilling diameter MM 105-273
Air pressure Mpa 1.2-3.5
Rod length m 3
Rod diameter mm 76-89
Main shaft pressure T 5
Lifting force T 18
Total swing stroke M 3.6
Max rotary torque Nm 8000
Max rotary speed r/min 100
Secondary winch lifting force T 2
Jacks stroke m 1.4
Moving speed km/h 2.5
Uphill angle ° 21°
Weight of the rig T 5
The engine KW 76
Overall dimensions mm 2000*1250*1950
Working condition Loose bed and bedrock





Product Picture

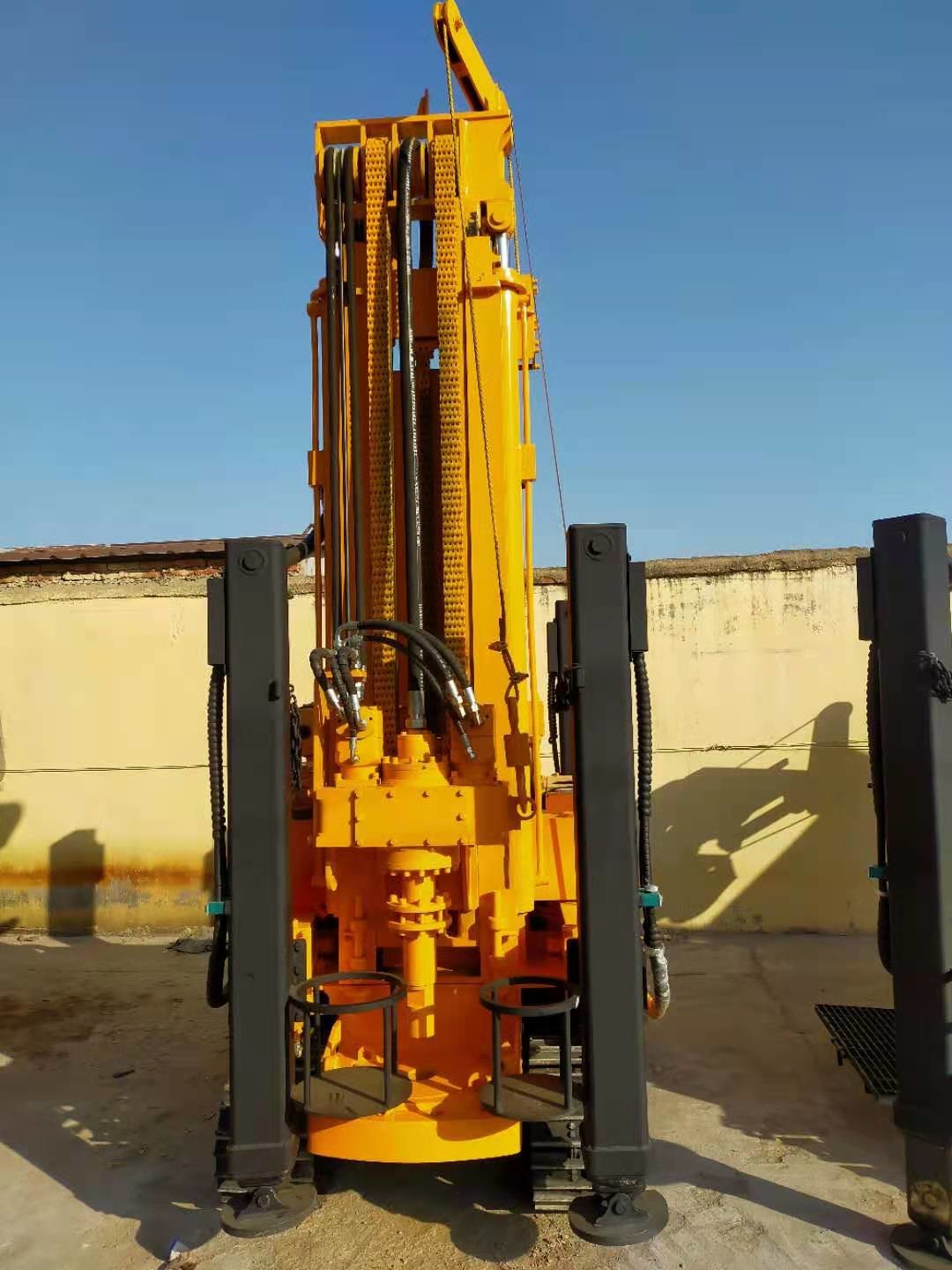

Diesel Engine GL260S Crawler Mounted Drill Rig 260m Max Depth 0



Other important infomation

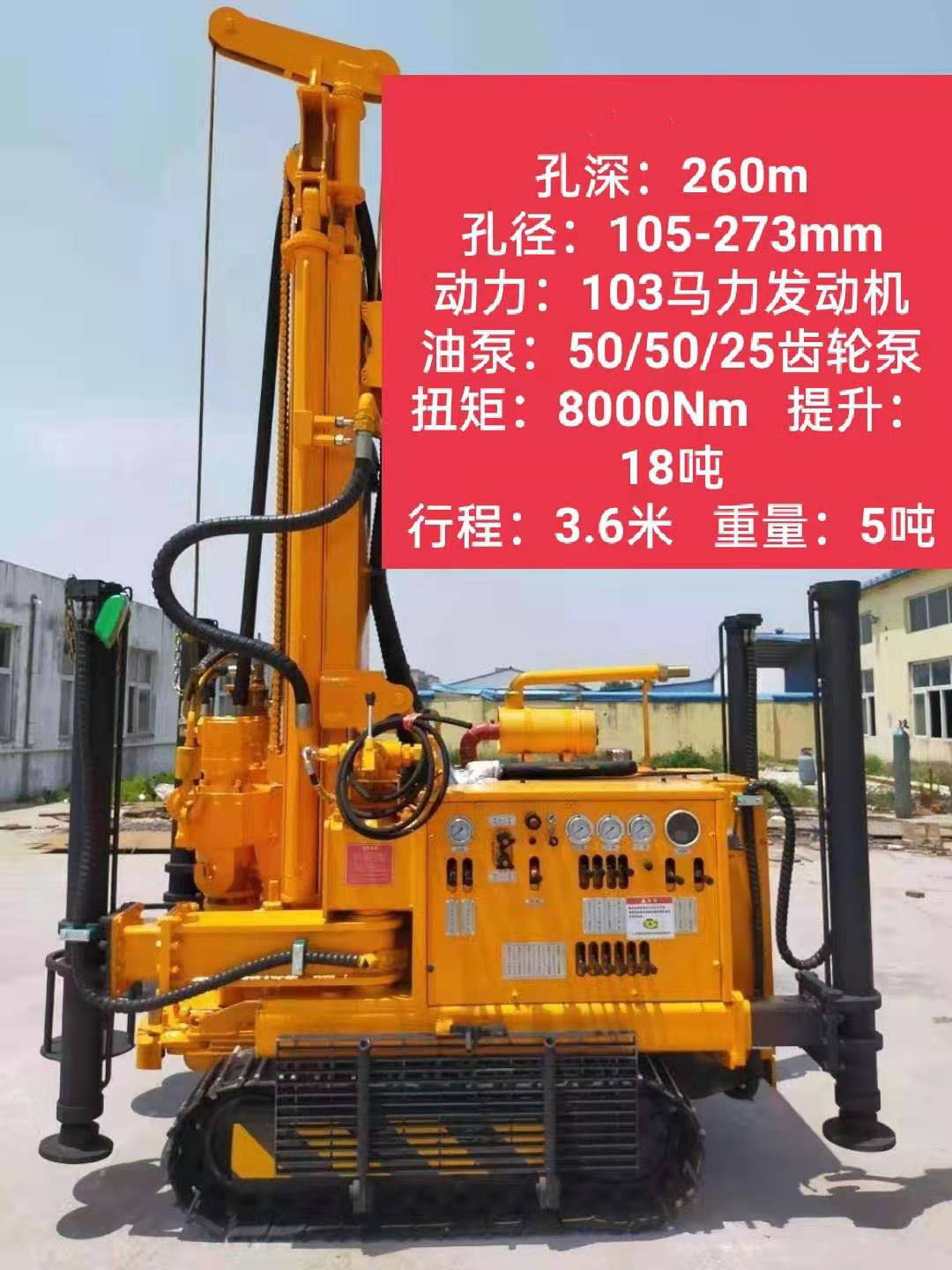

Diesel Engine GL260S Crawler Mounted Drill Rig 260m Max Depth 1

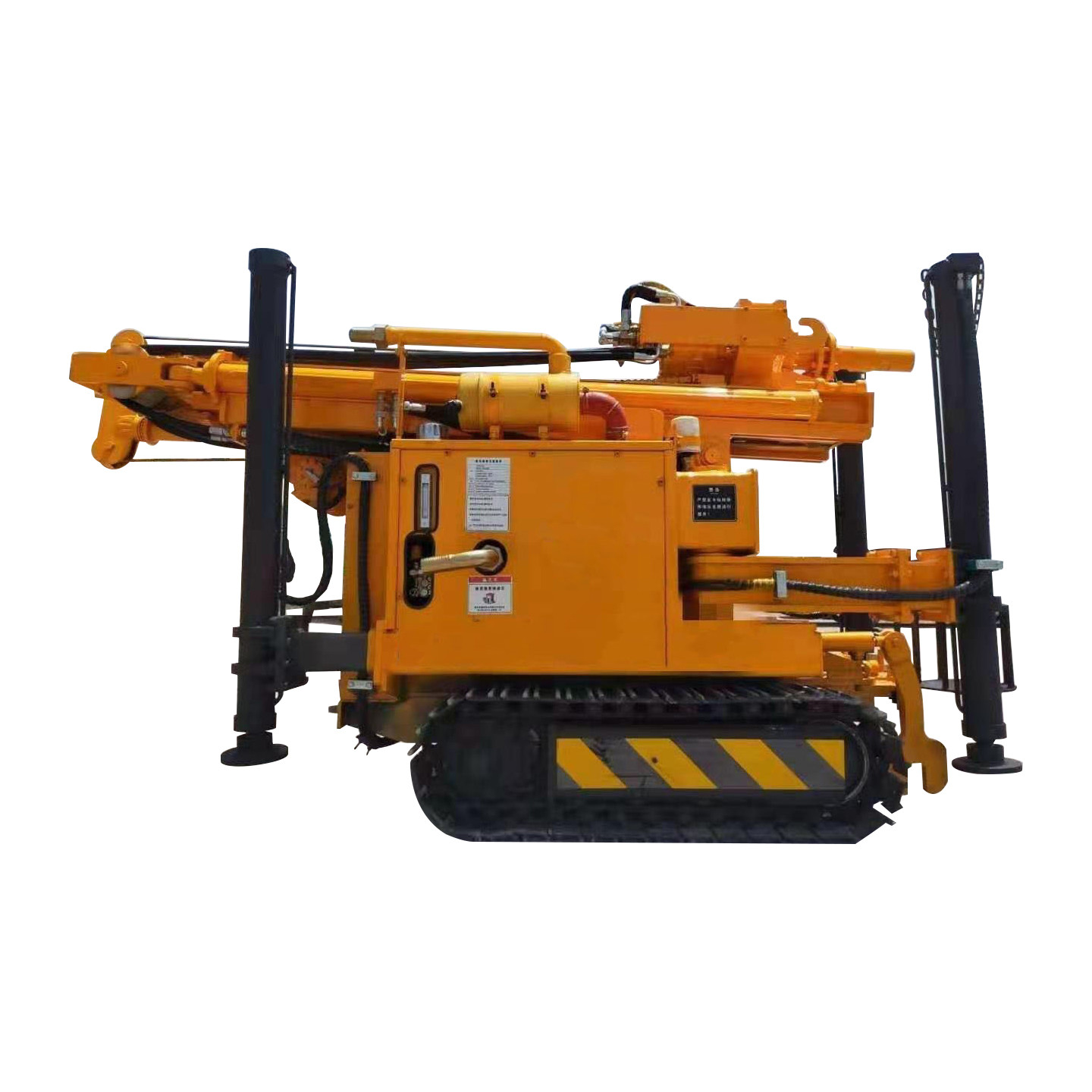

Diesel Engine GL260S Crawler Mounted Drill Rig 260m Max Depth 2

Diesel Engine GL260S Crawler Mounted Drill Rig 260m Max Depth 3

Tag:

Truck Mounted water well rig

Crawler Water Well Drill Rig

Water Well Drill Rig Mini
