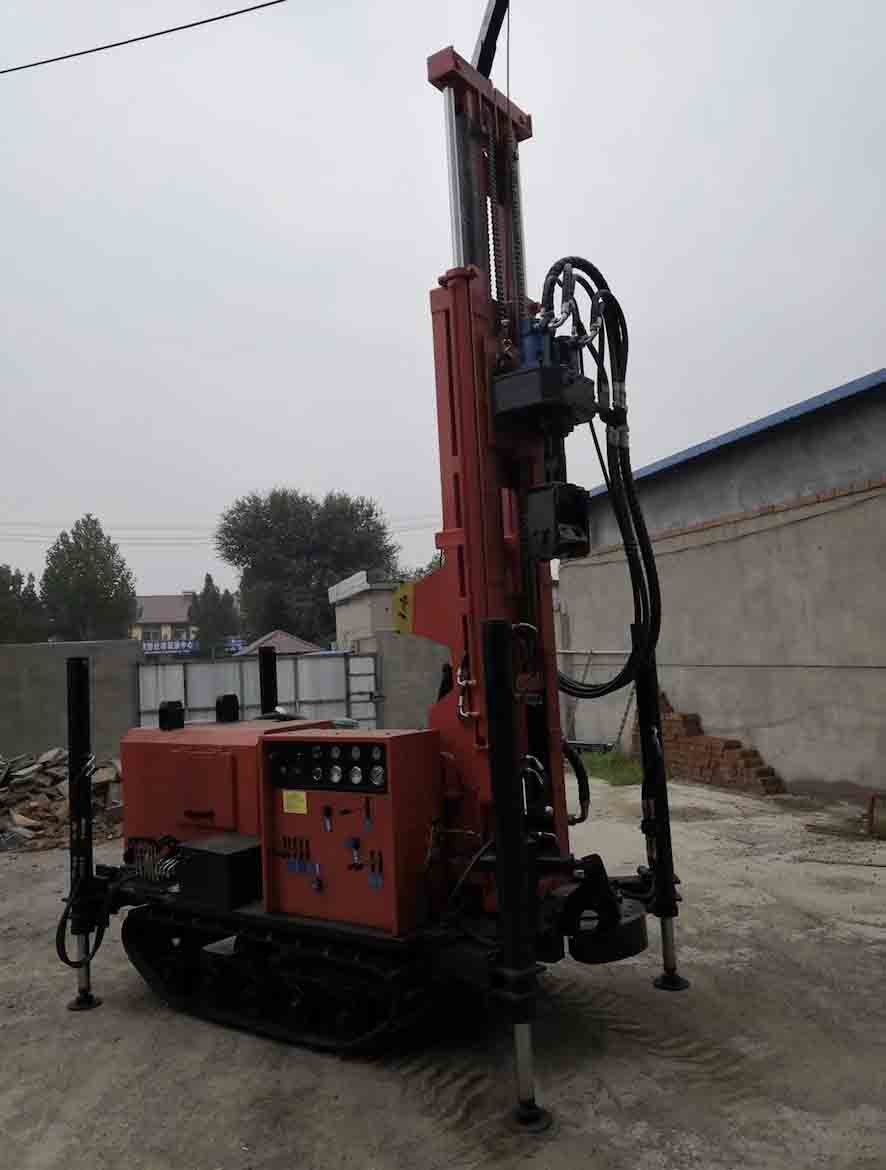

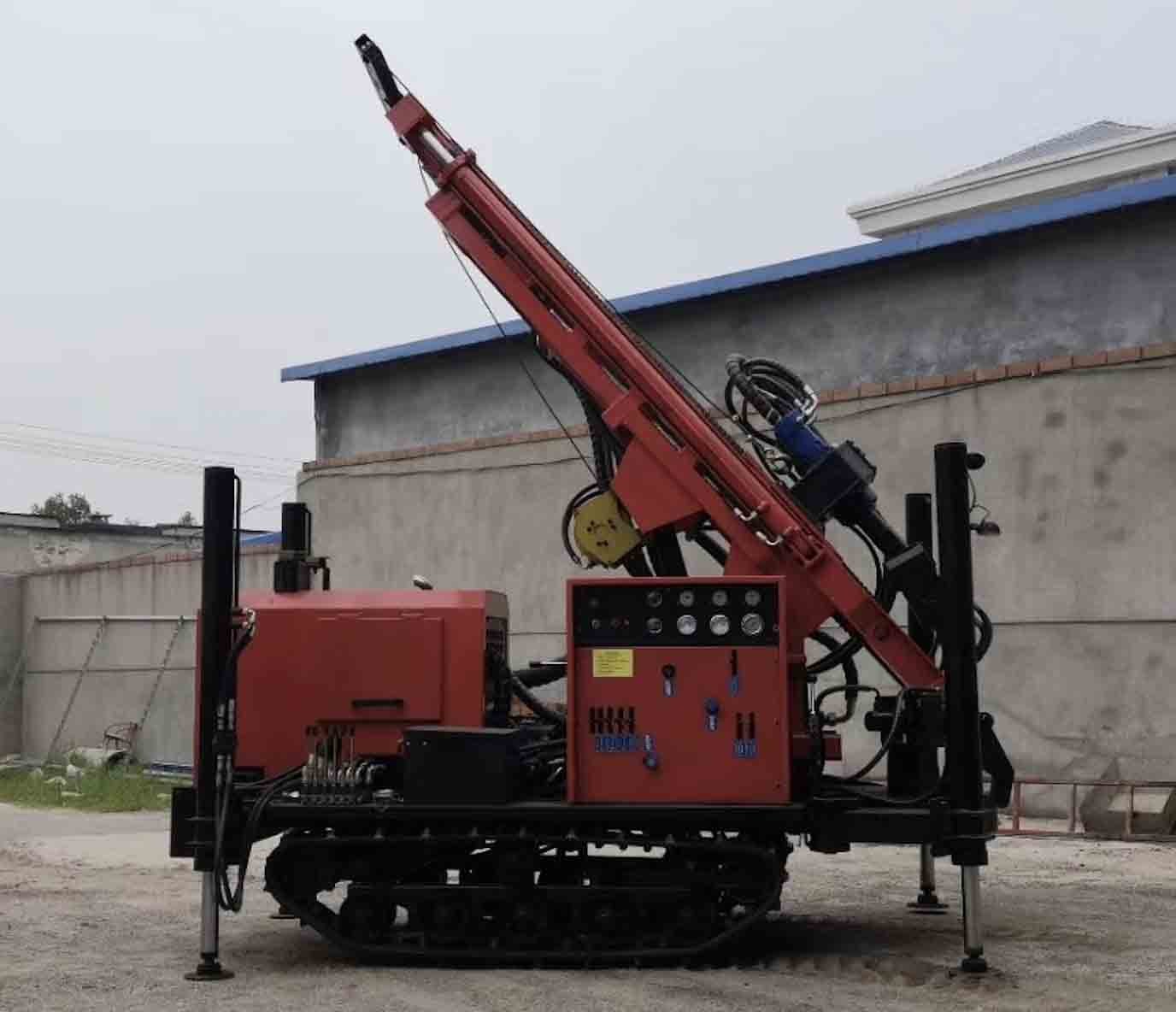

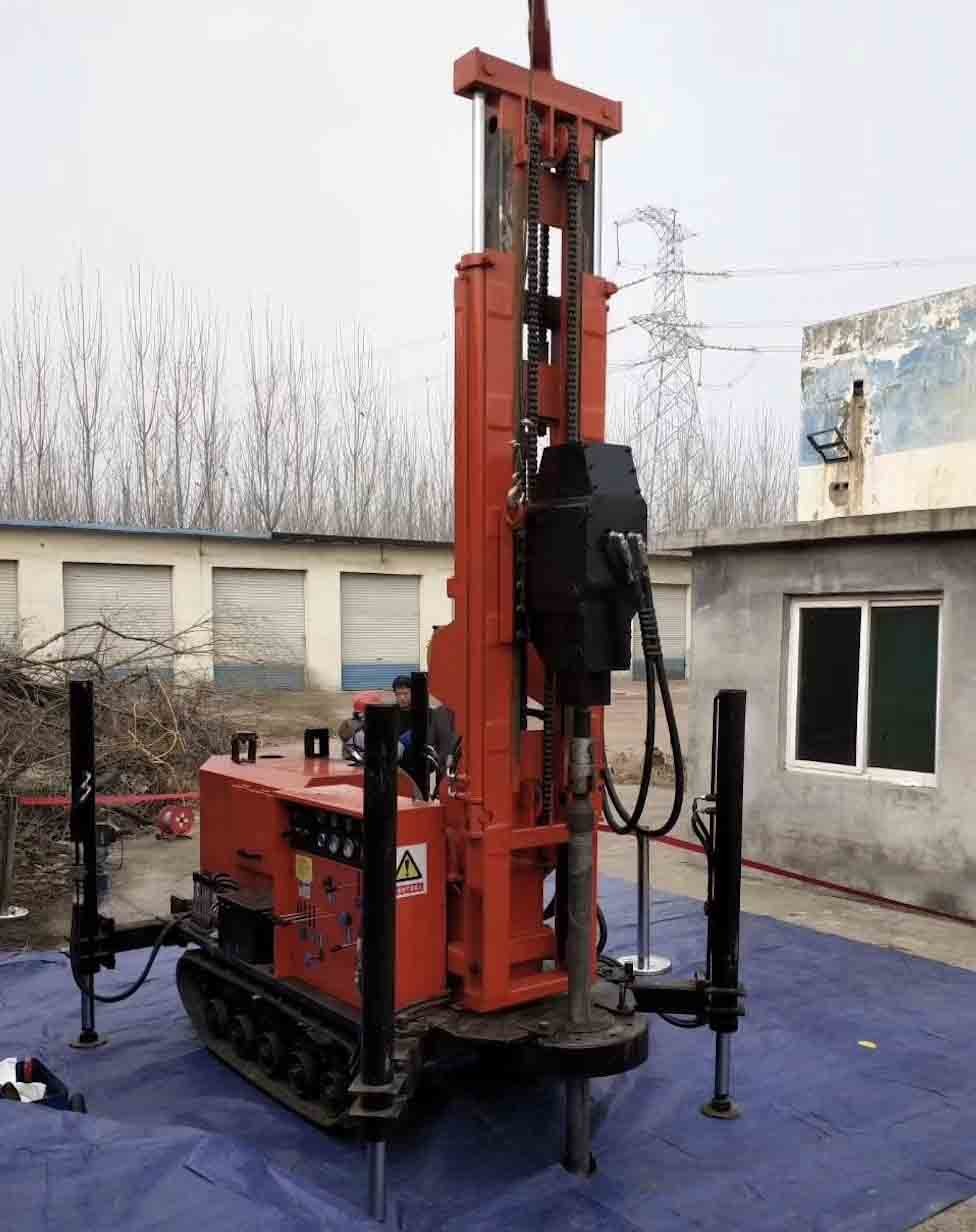

The drilling rig is a versatile and efficient piece of equipment designed for various drilling applications. With a weight of 3.6 tons, it strikes a balance between portability and stability. The drilling diameter ranges from 138 to 203 mm, allowing for a wide range of hole sizes. It has a drilling depth capacity of 180 meters, making it suitable for medium-depth drilling projects.
The rig features a feeding stroke of 3.5 meters, enabling efficient drilling operations. With a moving speed of 2.5 km/h, it offers swift mobility between different drilling locations. It has a climbing ability of up to 30 degrees, allowing it to tackle challenging terrains with ease.
Powered by a 60 kW diesel engine, the rig delivers reliable performance and sufficient power for drilling operations. It operates at an air pressure range of 1.8 to 2.3 MPa, with an air consumption ranging from 17 to 31 m³/min. This ensures an ample supply of compressed air for efficient drilling.
The rod diameter varies between Φ76 and φ89 mm, while the rod length ranges from 1.5 to 3.0 meters. This flexibility allows for versatility in drilling applications. The rig has a lifting force of 12 tons, providing ample strength for lifting and lowering drilling equipment.
The rotary speed of the rig ranges from 35 to 60 rotations per minute, with a rotary torque of 4500 N.m. This enables efficient and precise drilling operations. The supporting legs have dimensions of 1100 mm in height and 2400 mm in width, ensuring stability during drilling operations.

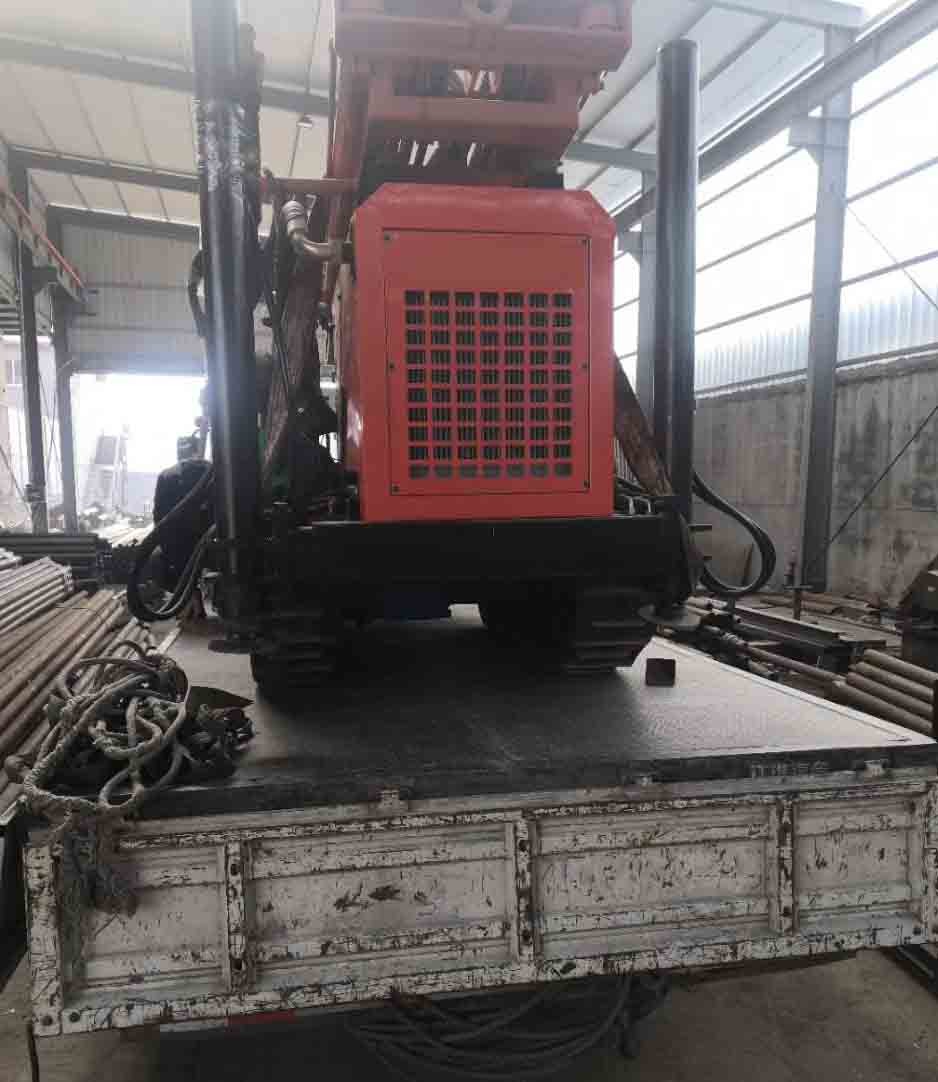

Overall, the rig has compact dimensions of 3000 mm in length, 1300 mm in width, and 1850 mm in height. This compact design facilitates easy transportation and maneuverability in confined spaces.
In summary, this drilling rig offers a combination of power, versatility, and mobility, making it suitable for a range of drilling applications. Its robust specifications, including drilling diameter, depth capacity, feeding stroke, and lifting force, make it a reliable choice for various drilling projects.
