300DF Truck Mounted Water Well Drilling Rig
Discover the versatile DTH deep hole water well drilling rig from Glorytek Industry. This high-quality, efficient, and durable drilling equipment is perfect for drilling deep water wells up to 300m. With its advanced technology and reliable performance, this truck-mounted rig is a dependable choice for any drilling project. Get yours today!
Versatile DTH Deep Hole Water Well Drilling Rig
Introducing the Versatile DTH Deep Hole Water Well Drilling Rig, a reliable and efficient solution for all your drilling needs. This truck-mounted rig is designed to provide exceptional performance and is perfect for various drilling applications.
With its compact structure and powerful Yuchai YC6J180-33 diesel engine, this drilling rig offers a seamless drilling experience. The engine, compliant with China III emission standards, delivers a strong power output of 132kw/2500rpm, ensuring smooth and efficient drilling operations.

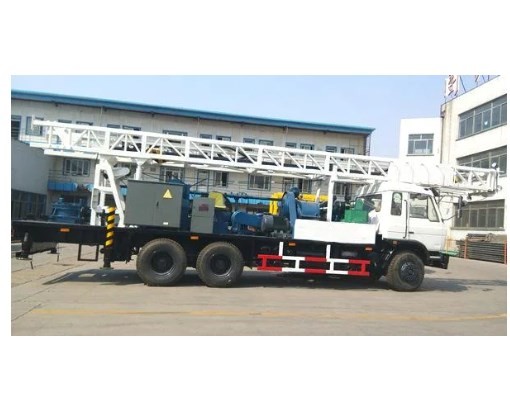

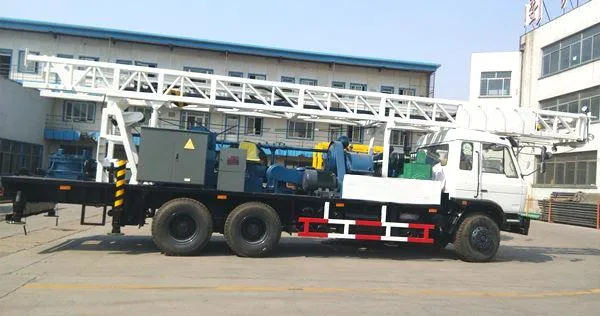

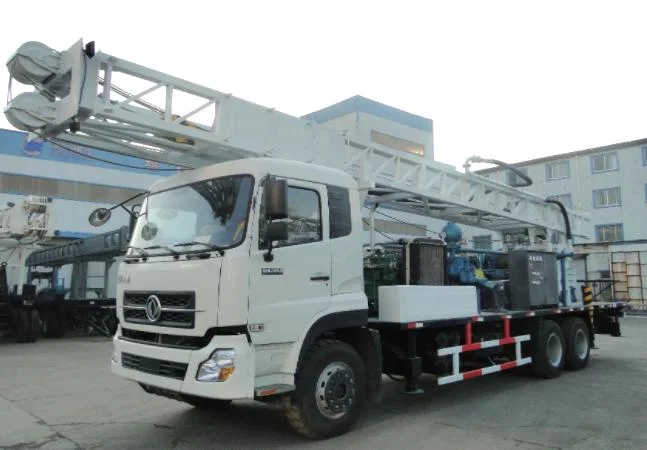

The 300DF truck-mounted water well drilling rig features a direct circulation rotary drilling system, guaranteeing precise and accurate drilling results. Equipped with the Dongfeng 6×4 special drilling rig chassis (model: DFS1251GL18) and 11.00R20 steel wire cross-country pattern tires, this rig offers excellent off-road performance, allowing you to reach even the most challenging drilling sites.
When it comes to power, this drilling rig utilizes an independent diesel generator set, ensuring a reliable and uninterrupted power supply during drilling operations. The mechanical hoist and turntable work seamlessly together, driven by a motor, providing efficient and synchronized performance.
Trust the Versatile DTH Deep Hole Water Well Drilling Rig to deliver high-quality and durable results. Whether you need to drill deep water wells or bore holes, this rig is designed to meet your requirements. Invest in this advanced and dependable drilling equipment and experience the ease and efficiency it brings to your drilling projects.
For more information, please contact Glorytek Industry (Beijing) Co., Ltd.
Technical Parameter
| Nominal drilling depth (M) |
300 |
| Through hole diameter of turntable (mm) |
500 |
| Turntable speed (r/min) |
8.6-142 |
| Turntable torque (kN.m) |
38.9-2.4 |
| Single rope pulling force of main winch (kN) |
30 |
| Main hook lifting capacity (kN) |
240 |
| Single rope pulling force of auxiliary winch (kN) |
30 |
| Lifting force of secondary hook (kN) |
120 |
| Drill tower bearing capacity (kN) |
240 |
| Effective height of drilling tower (mm) |
11900 |
| Kelly rod (mm) |
Φ108×108×7500 |
| Drill rod (mm) |
Φ88.9×9.8×5500 |
| Power |
Generator model |
HH100/R6105AZLD-1 100kW |
| Main rig |
Y225S-4 37kW/1470rpm |
| Mud pump |
Y225S-4 37kW/1470rpm |
| Hydraulic pump |
YE2-160M-4 11kW/1470rpm |
| Mud pump |
Model |
BW850/20 |
| Bore (mm) |
150 |
| Displacement (L/min) |
850, 600 |
| Pump pressure (MPa) |
2, 3 |
| Input power (kW) |
40 |
| Truck chassis |
Chassis model |
DFS1251GL18 |
| Chassis form |
6×4 |
| Engine |
model |
YC6J180-33 |
| Type |
Water-cooled four-stroke supercharged and inter-cooled |
| Rated power (kW) |
132 |
| Rated speed (rpm) |
2500 |
| Dimension |
Working status (mm) |
10500×2480×13700 |
| Transport state (mm) |
12500×2480×3700 |
Company Profile
Welcome to Glorytek Industry (Beijing) Co., Ltd., a leading provider of drilling equipment. Our versatile DTH deep hole water well drilling rig is the perfect solution for your drilling needs. With advanced technology and durable construction, our rig ensures efficient and reliable drilling. Whether you need a truck-mounted rig or a rotary rig, we have the right equipment for you. Contact us today for high-quality water drilling rigs at competitive prices.
Introducing the Versatile DTH Deep Hole Water Well Drilling Rig
Experience the excellence of Glorytek Industry (Beijing) Co., Ltd., a trusted name in the drilling equipment industry for over 20 years. Our commitment to top-quality manufacturing and exporting has made us a preferred choice worldwide.
Supported by a highly experienced R&D team and engineers, we ensure successful completion of all assigned projects, meeting our clients' specific requirements.

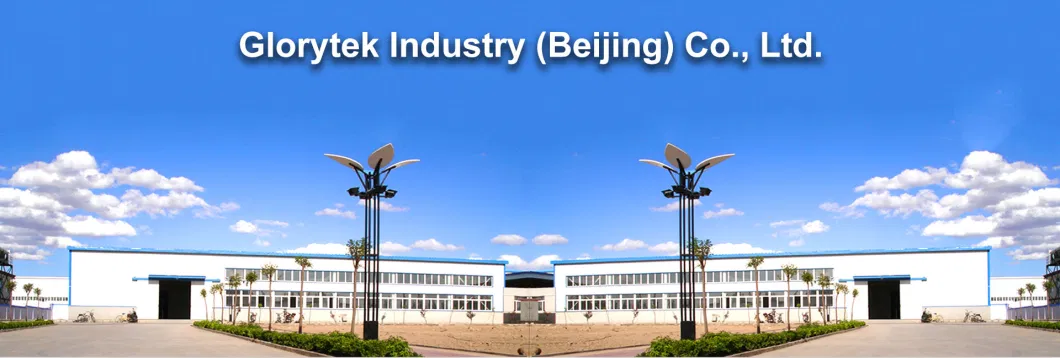

Our state-of-the-art factory spans an impressive 250,000 square meters, with a construction area of approximately 150,000 square meters. Equipped with over 200 sets of advanced machinery, including CNC processing centers and friction welding machines, we have the tools to deliver exceptional results.
With over 600 skilled employees, we take pride in our ability to consistently provide drilling equipment that meets the highest standards.
Our Versatile DTH Deep Hole Water Well Drilling Rig is a testament to our commitment to excellence. Designed for efficiency and durability, this rig is perfect for a variety of drilling applications.
Key Features:
- Truck-mounted for easy transportation and maneuverability
- Capable of drilling up to 300m deep
- High-quality construction ensures long-lasting performance
- Advanced technology for efficient drilling
- Dependable and reliable for consistent results
-
Join our satisfied customers in over 60 countries, including Australia, Russia, South Africa, Malaysia, and the USA, who have experienced the benefits of our top-of-the-line drilling equipment.
Invest in the Versatile DTH Deep Hole Water Well Drilling Rig today and discover the difference that quality and reliability can make in your drilling projects.
