Home /Products/Drilling Mud Pump/F-500 Compact Mud Pump For Drilling Rig , Small Volume

F-500 Compact Mud Pump For Drilling Rig , Small Volume

1 set
MOQ
USD55000-65000 per set
Price
F-500 Compact Mud Pump For Drilling Rig , Small Volume
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: F-500
Screw Suction Method: Option
Application: Drilling Rig
MOQ: 1
Package Size: 217.00cm * 129.00cm * 132.00cm
Package Gross Weight: 3200.00kg
Type: Pump
Warranty: 1 Year
Highlight:

Compact mud pump for drilling rig

,

Small mud pump for drilling rig

,

Compact mud pumps for drilling rigs
Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: F-500
Payment & Shipping Terms
Packaging Details: Seaworthy Package
Delivery Time: 20-30 days
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 90 set per month
Product Description

F-500 Mud Pump



Product Description



◆F series mud pump is applicable to the requirement of high pump pressure in oil field and high displacement technology of well drilling with its solid and compact structure, small volume and outstanding operation performance.


◆F series mud pump has long stroke maintaining operation at lower frequency resulting in enhancing the performance of giving water effectively and prolonging the lifetime of the consumable hydrokinetic parts, the air-suction kit is advanced in structure and reliable at operation to reach the optimized absorbing target of air suction into line pipe.


◆F series pump powering side adopts the combined lubrication id forced and flashing lubrication featured with reliable lubrication and adding the operation lifetime of powering part.


◆This series pump is widely used in oil fields and other lines of industrial and mining enterprises, operation ofdrilling well and well repairing in oil field and other lines of industrial and mining enterprises, operation of drilling well and well repairing etc

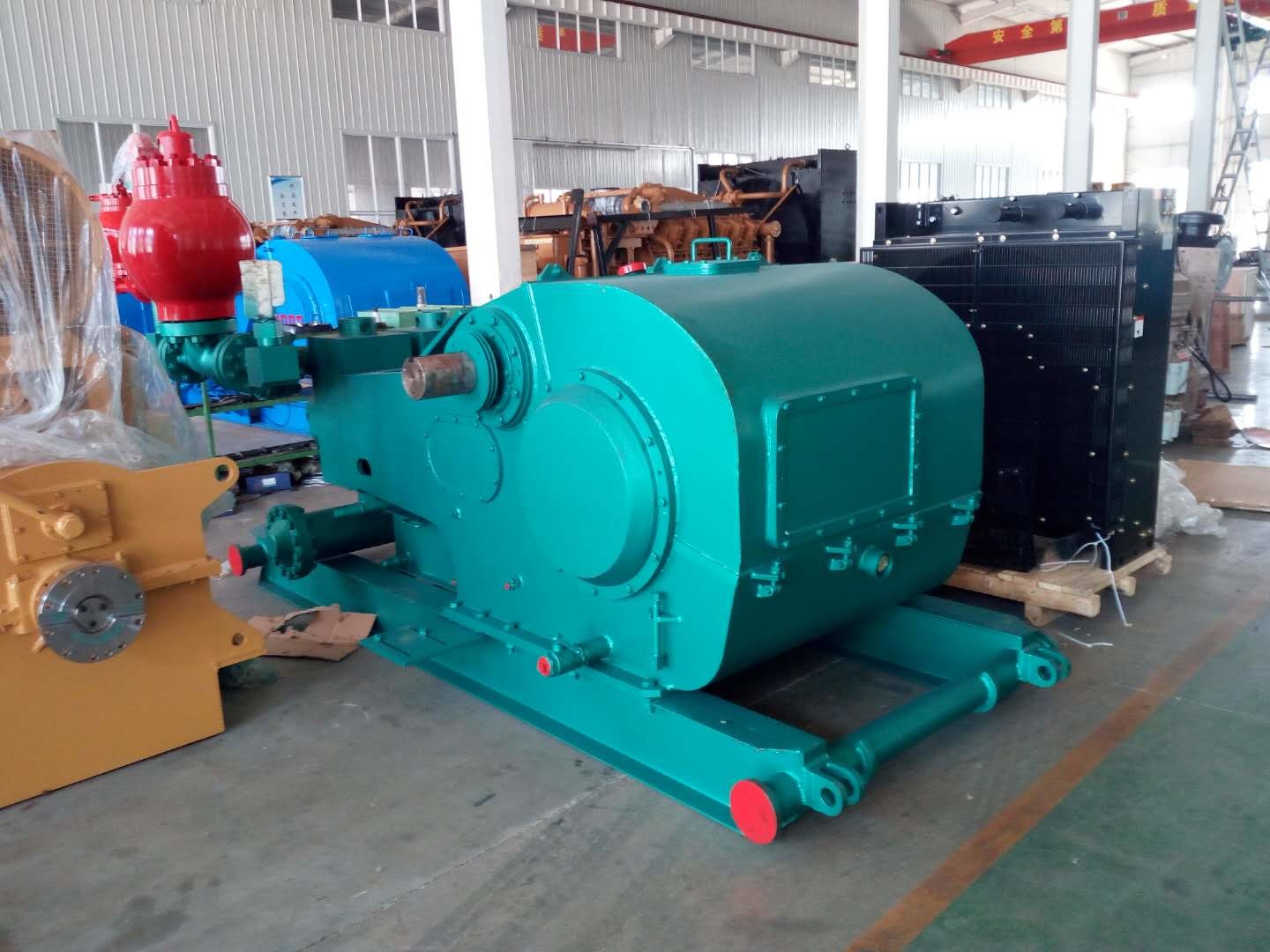

Product Picture

F-500 Compact Mud Pump For Drilling Rig , Small Volume 0



Technical Parameter



Stroke/
Liner Size (mm/inch),
170
160
150
120
110
100
min
Pressure Rating (Mpa psi)
9.4
10.6
12.1
18.9
22.5
27.2

Pressure Rating (Mpa psi)
-1365
-1540
-1750
-2740
-3260
-3945

KW
HP
Displacement: L/S
170
384
515
36.75(582)
32.56(516)
28.61(453)
24.93(395)
15.39(244)
12.72(201)
165
*373
500
35.67(565)
31.60(501)
27.77(440)
24.19(383)
14.93(236)
12.34(195)
150
339
455
32.43(514)
28.73(455)
25.55(400)
21.99(348)
13.58(215)
11.22(178)
140
316
424
30.27(480)
26.81(425)
23.56(373)
20.53(325)
12.67(201)
10.47(166)
130
294
394
28.11(445)
24.90(394)
21.88(347)
19.06(302)
11.77(186)
9.73(154)
120
271
364
25.94(411)
22.98(364)
20.20(320)
17.60(279)
10.86(172)
8.98(142)
110
249
333
23.78(377
21.07(334)
18.52(293)
16.13(255)
9.96(158)
8.23(130)
1


0.2162(3.427)
0.1915(3.036)
0.1683(2.668)
0.1466(2.324)
0.0905(1.435)
0.0748(1.186)







Packing and Transport

F-500 Compact Mud Pump For Drilling Rig , Small Volume 1



Exhibition



F-500 Compact Mud Pump For Drilling Rig , Small Volume 2

After-sale Warranty
Warranty: (1)Within the period of the first year after delivery, the main parts of mud pump are guaranteed to be supplied free of charge once the problem caused by the quality issue. (2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account. (3)Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.

Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.

Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
