Home /Products/Water Well Drill Rig/300DF Dongfeng Water Well Drill Rig Truck Mounted With 300m Hole Depth

300DF Dongfeng Water Well Drill Rig Truck Mounted With 300m Hole Depth

1set
MOQ
negotiable
Price
300DF Dongfeng Water Well Drill Rig Truck Mounted With 300m Hole Depth
Features Gallery Product Description Request A Quote
Features
Specifications
Keyword: 300DF TDongfeng Truck Mounted Water Well Drilling Rig With 300m Hole Depth
Drill Rig Capacity: 300m
Drill Rig Dimension: 12500×2480×3700mm
Drill Rig Model: 300DF
Drill Rig Power: Diesel Generator
Drill Rig Diameter: 500MM
Mud Pump: BW850/20
Drill Rig Speed: 8.6-142
Drill Rig Torque: 38.9-2.4 KN.m
Drill Rig Type: Water Well Drill Rig
Drill Rig Warranty: 1 Year
Drill Rig Weight: 10000kg
Highlight:

DONGFENG water well drill rig

,

deep 300m water well drill rig

,

DONGFENG water well drilling rig
Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE, SGS, TUV
Model Number: 300DF
Payment & Shipping Terms
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month
Product Description
Product Description

300DF TDongfeng Truck Mounted Water Well Drilling Rig With 300m Hole Depth

Discover the high-performance Water Well Drilling Rig with a 300m hole depth from Glorytek Industry (Beijing) Co., Ltd. This truck-mounted rig is perfect for deep drilling projects. Find the best water well drilling price and explore our range of drilling equipment for sale.

Versatile DTH Deep Hole Water Well Drilling Rig
Versatile DTH Deep Hole Water Well Drilling Rig



Water Well Drilling Rig with 300m Hole Depth

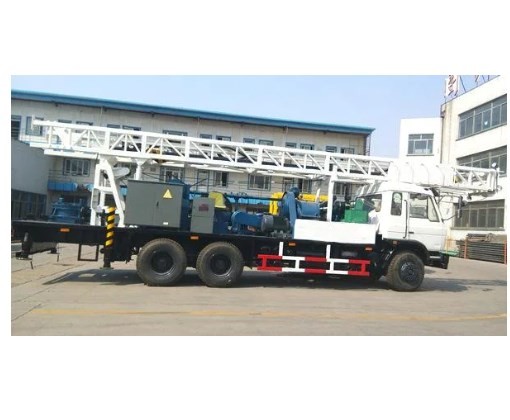

Introducing the 300DF truck mounted water well drilling rig, a direct circulation rotary drilling rig designed to meet your drilling needs. With its compact structure and powerful features, this rig is perfect for various drilling applications.

Features:


  • Chassis: The drilling rig is built on the reliable Dongfeng 6×4 special drilling rig chassis (model: DFS1251GL18) with excellent off-road performance.

  • Engine: Powered by the Yuchai YC6J180-33 diesel engine, this rig delivers strong performance with 132kw/2500rpm, meeting China III emission standards.

  • Tires: Equipped with 11.00R20 steel wire cross-country pattern tires, ensuring stability and durability even in challenging terrains.

  • Drilling Power: The rig utilizes an independent diesel generator set as the power source during drilling, providing reliable and efficient operation.

  • Motor Drive: The mechanical hoist and turntable work simultaneously through the motor drive, enhancing productivity and ease of use.




    •
  •

Specifications:


  • Product Name: Water Well Drilling Rig with 300m Hole Depth

  • Company: Glorytek Industry (Beijing) Co., Ltd.

Technical Parameter

Nominal drilling depth (M) 300
Through hole diameter of turntable (mm) 500
Turntable speed (r/min) 8.6-142
Turntable torque (kN.m) 38.9-2.4
Single rope pulling force of main winch (kN) 30
Main hook lifting capacity (kN) 240
Single rope pulling force of auxiliary winch (kN) 30
Lifting force of secondary hook (kN) 120
Drill tower bearing capacity (kN) 240
Effective height of drilling tower (mm) 11900
Kelly rod (mm) Φ108×108×7500
Drill rod (mm) Φ88.9×9.8×5500
Power Generator model HH100/R6105AZLD-1  100kW
Main rig Y225S-4     37kW/1470rpm
Mud pump Y225S-4     37kW/1470rpm
Hydraulic pump YE2-160M-4   11kW/1470rpm



Mud pump Model BW850/20
Bore (mm) 150
Displacement (L/min) 850, 600
Pump pressure (MPa) 2, 3
Input power (kW) 40
Truck chassis Chassis model DFS1251GL18
Chassis form 6×4
Engine model YC6J180-33
Type Water-cooled four-stroke supercharged and inter-cooled
Rated power (kW) 132
Rated speed (rpm) 2500
Dimension Working status (mm) 10500×2480×13700
Transport state (mm) 12500×2480×3700



Company Profile

Welcome to Glorytek Industry (Beijing) Co., Ltd., a leading manufacturer and supplier of water drilling equipment. We offer a wide range of rotary water well drilling rigs, including truck-mounted rigs capable of drilling up to 400m deep. Our hydraulic and portable drill rigs are top-of-the-line, providing efficient and reliable performance. With our expertise and commitment to quality, we are your trusted source for all your water drilling needs. Contact us today for more information on our products and services.

Versatile DTH Deep Hole Water Well Drilling Rig

Glorytek Industry (Beijing) Co., Ltd. specializes in truck-mounted water well drilling rigs capable of drilling up to 300m deep. Our high-quality equipment is perfect for bore hole drilling and water well drilling projects. Contact us for competitive prices and reliable deep drilling solutions.



Water Well Drilling Rig with 300m Hole Depth

Experience top-quality drilling with our Water Well Drilling Rig. With over 20 years of expertise, Glorytek Industry (Beijing) Co., Ltd. is a trusted manufacturer and exporter of drilling equipment and parts. Our dedicated team of highly experienced R&D professionals and engineers ensures successful project completion, meeting all client requirements.

Our state-of-the-art factory spans an impressive 250,000 square meters, with a construction area of approximately 150,000 square meters. Equipped with advanced machinery, including CNC processing centers, friction welding machines, and testing equipment, we have over 200 sets of machinery and a workforce of more than 600 skilled employees.

Our Water Well Drilling Rig has gained global recognition, being exported to over 60 countries, including Australia, Russia, South Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, and Haiti.



Versatile DTH Deep Hole Water Well Drilling RigVersatile DTH Deep Hole Water Well Drilling RigVersatile DTH Deep Hole Water Well Drilling Rig
