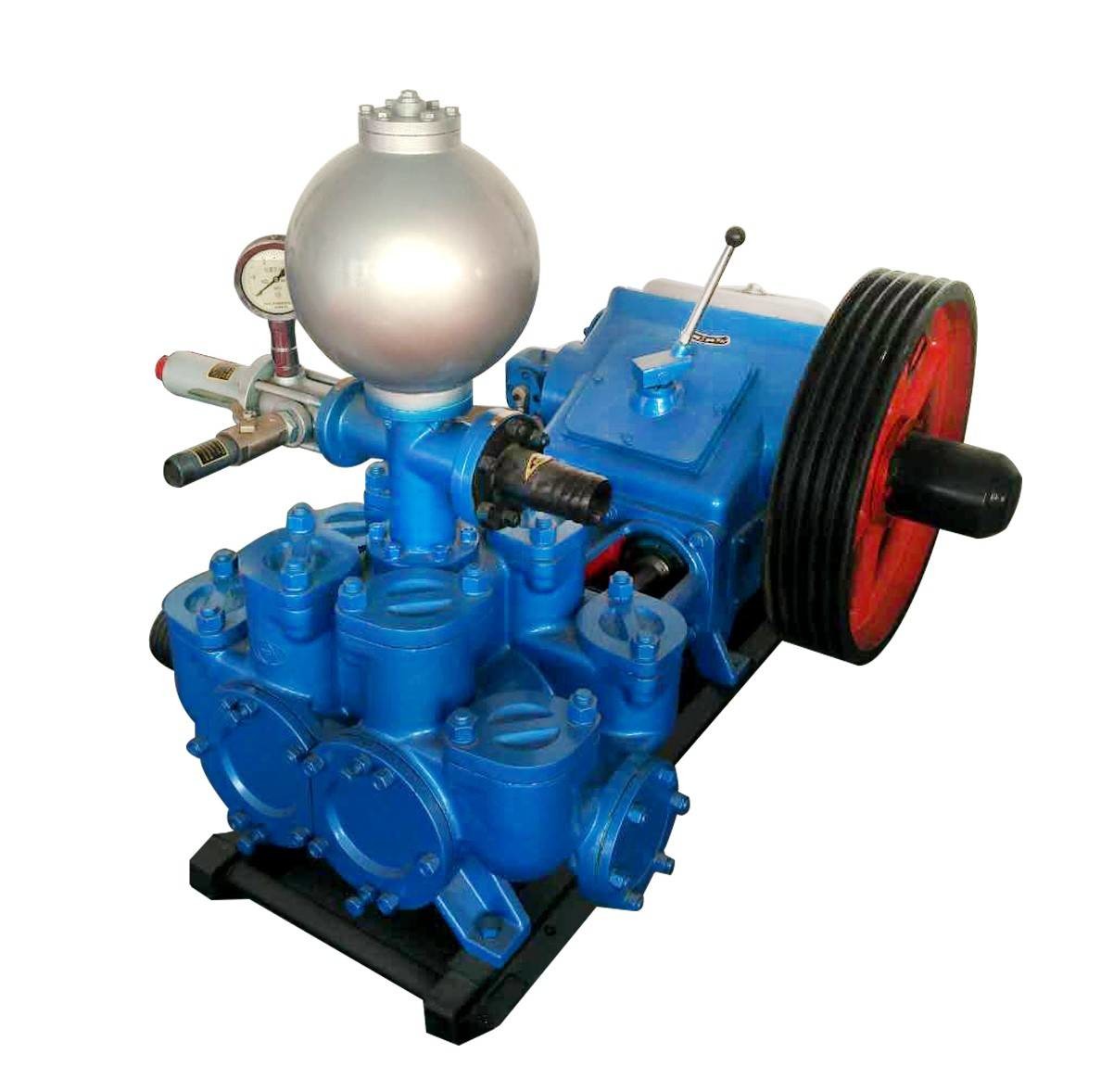

Grout Double Cylinder Small Mud Pump Bw850-2

▶Description:


Used for HDD drilling, Oil and Gas field drilling, Mining, Water well drilling etc.And also have below features:
1.Horizontal double cylinder & three cylinder, single-acting&double acting reciprocating piston pump.
2.Simple and compact structure, light weight, long service life of wearing parts, easy operation.
3.Extending service life of pump greatly by using e-metal liner. Type:BW850/2Horizontal double cylinder reciprocating double action piston pump

Cylinder Liner Dia(mm):150
Piston Stroke(mm):180
Theoretical Flow Rate(L/min):600 850
Rated Pressure (MPa):3 2
Strokes Per Minute:58 82
ID of Suction Pipe(mm):127
ID of Discharge Pipe(mm):64
Input Rotating Speed(r/min):470
Input Power(kW):40
Overall Dimension(L×W×H) (mm):2000×1030×1400
Weight(kg):1500

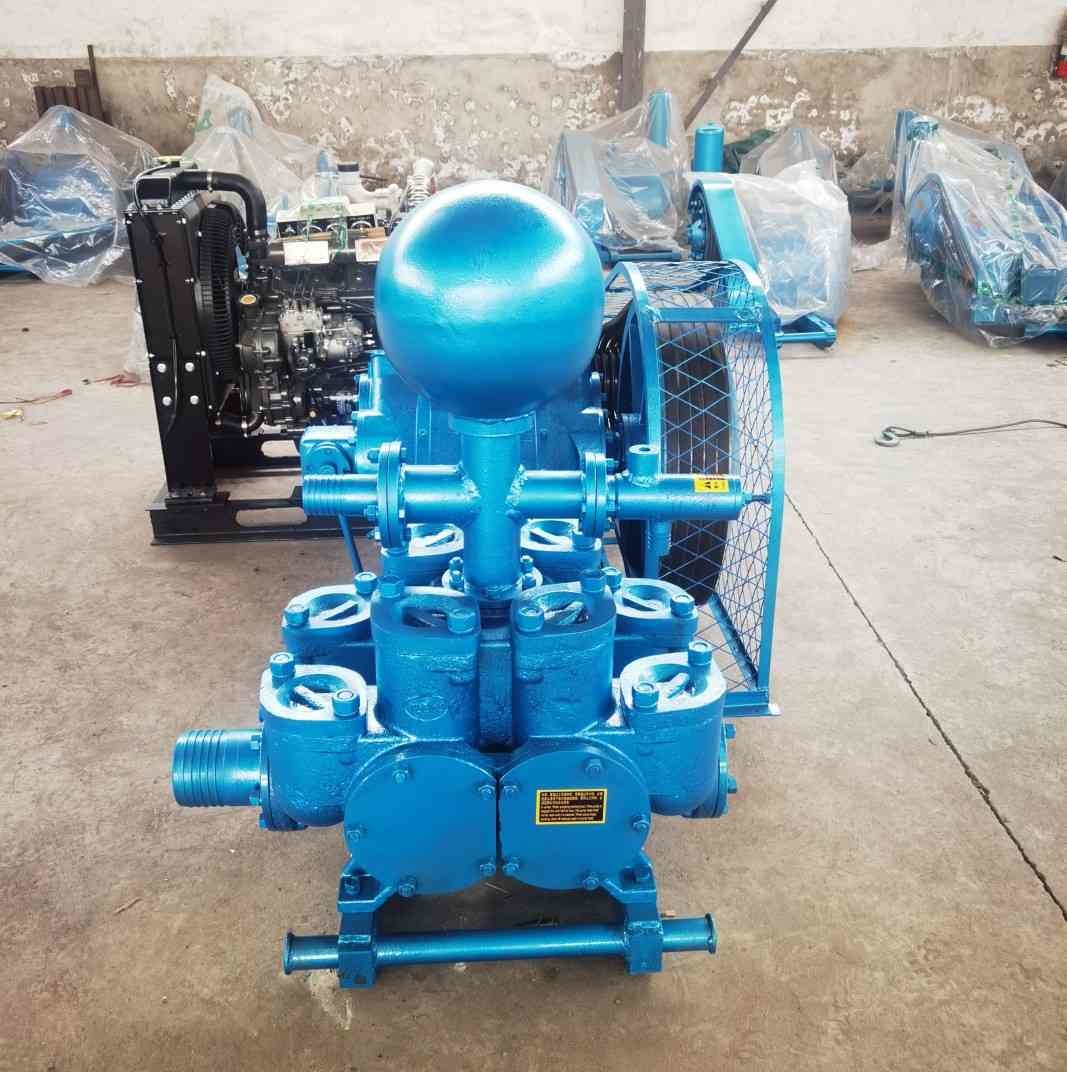

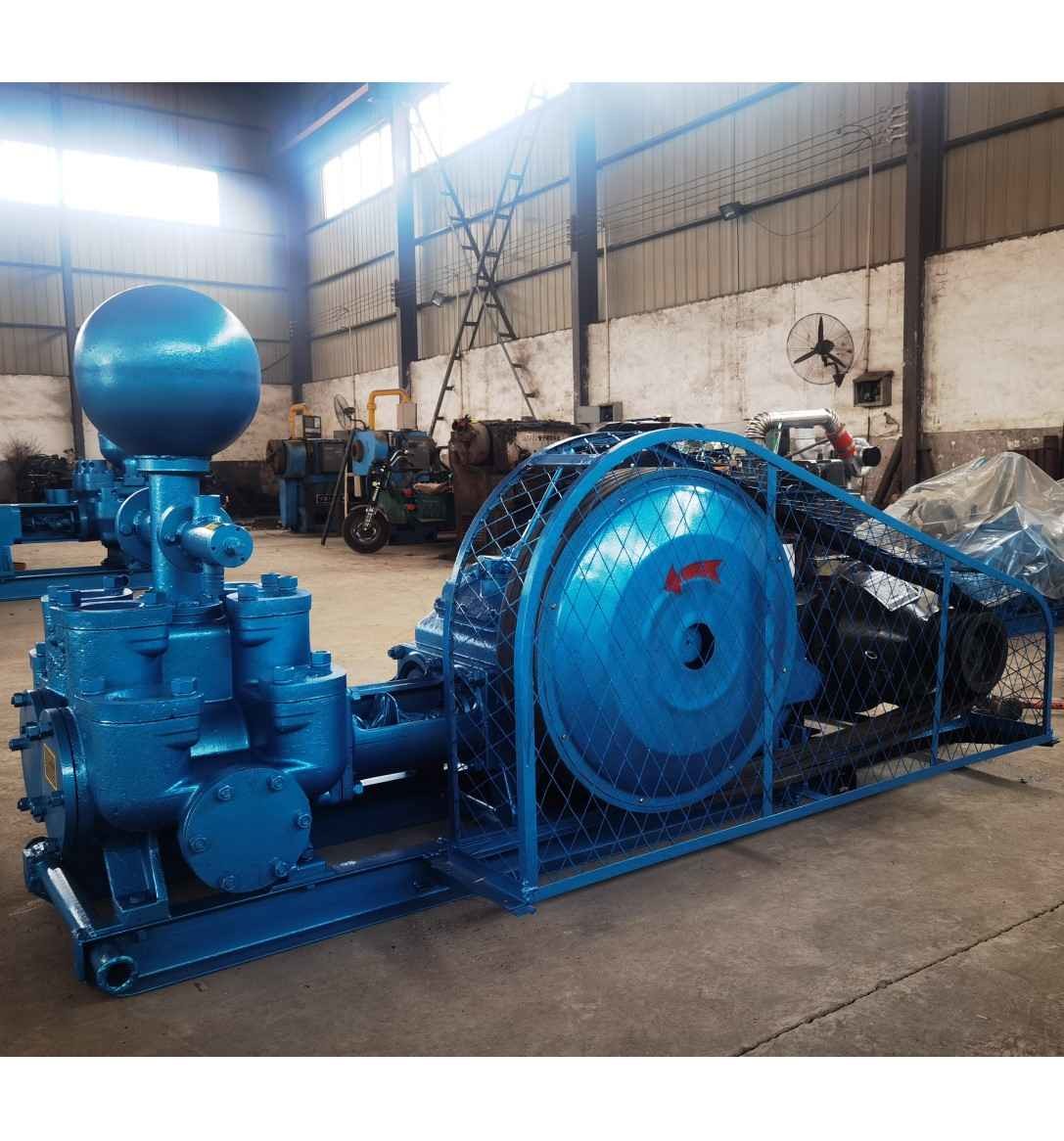

▶Detailed Photos:



▶Product Parameters:

▶Application

Mud pump for well drilling in oilfields or for oil and gas drilling projects, the 3NB Series Mud Pump is the ideal choice. Its reliable performance, high pressure capabilities, and efficient mud circulation make it a valuable asset for any drilling operation.
