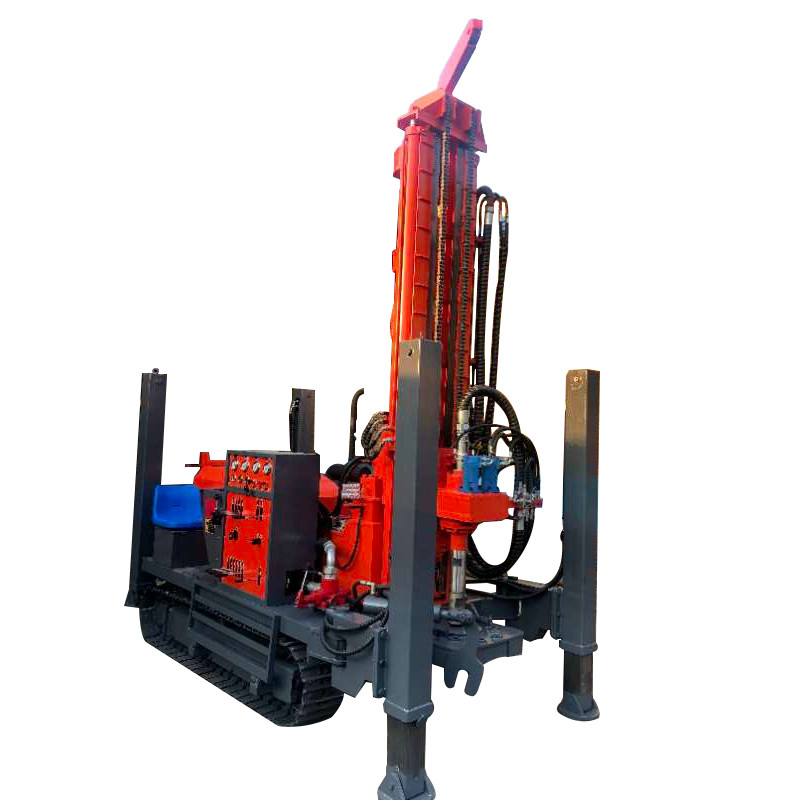

Name: Versatile 200m Deep Water Well Drilling Rig Machine
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL200S
Price: 31,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Max Drilling Depth: 200M

Drilling Diameter: 90-315mm

Bit Type: DTH Bit/Tricone Bit

Drilling Way: Rotary

Type: Crawler Type

Core Components: Pump, Engine

Applicable Industries: Water Well Drilling

Lifting Force: 14t

Transport Package: Standard Export Wooden Case.

Specification: 3900*1700*1500mm

Highlight:

Versatile Deep Water Well Drill Rig

200m Water Well Drill Rig

Versatile Water Well Drill Rig Machine

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: GL200S

Payment & Shipping Terms

Packaging Details: Seaworthy packing

Delivery Time: 25-35days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500 sets per year

Gallery

Versatile 200m Deep Water Well Drilling Rig Machine

Product Description

GL200S Crawler Type Water Well Drill Rig

Main features

1. With automatic oil supply mechanism, improving drilling efficiency, reducing labor intensity.
2. Drilling Efficiency is 10-35 M/h, can achieve non-stop inverted bar, be easy to operate, safe and reliable.
3. Compact structure,centralized handle, small footprint, light weight, strong decomposition, easy to move. Suitable for plain and mountain areas.
4. High quality Water Well Drilling Rig Machine for Sale is suitable for drilling works such as water well drilling, general exploration, geophysical exploration, road and building exploration, blasting hole drilling and so on.
5.The drill rig equiped with Drill Pipe Dia., and the Max.Rotation Torque is 4500-6500N.m.

Product Picture

Versatile 200m Deep Water Well Drilling Rig Machine 0

Technical Date

Max drilling depth	330m
Drilling diameter	105-300mm
Air pressure	1.25-3.5Mpa
Air consumption	16-55m³/min
Rod length	3m/6m
Rod diameter	76/89/102mm
Main shaft pressure	6T
Lifting force	20T
Fast lifting speed	20m/min
Fast forwarding speed	40m/min
Rotary torque	8900 N.M
Rotary speed	30/170r/min
Winch lifting force	1.5T
High leg stroke	1.35-1.5m
Drilling efficiency	10-35m/h
Moving speed	2.5Km/h
Uphill angle	21°
Weight of the rig	7.8T
Dimension	4.9m x 2m x 2.3m
Working condition	loose layer or bedding rock
Drilling method	Top Hammer Hydraulic Rotating and feeding,
Drilling method	Down the hole hammer or mud pump drilling
Suitable hammer	Medium and high pressure DTH hammer
Optional accessories	Mud pump, centrifugal pump, generator, foam pump
Diesel Engine	77KW(Yuchai)

Our advantage

-Adopting well-known brand, diesel engine has the feature of lower emission and lower noise, combining international leading level control technique, the rig is not only more suitable to be performed in urban area.
-Unique design and drilling structure.
-Standard equipped with box type tramming beam and international standard construction machinery tramming tracks.
-Assure easily operation and long life service life.

Versatile 200m Deep Water Well Drilling Rig Machine 1

Company Profile

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

We are a manufacturer integrating design and production. We are mainly engaged in professional Water Well Drill and mine drilling rig,borehole drilling machine,deep well drilling machine,We have rich experience in foreign trade and export, If you need drilling deeper well, just contact us for more details.

Versatile 200m Deep Water Well Drilling Rig Machine 2

Versatile 200m Deep Water Well Drilling Rig Machine 3

Versatile 200m Deep Water Well Drilling Rig Machine 4

FAQ

Q:Are you a trading company or a manufacturer?
A:We are a professional manufacturer.
The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.

Q:Can you supply related drilling tools?
A:Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit.

Q:How about quality assurance?
A:We provide a one-year quality guarantee for the main machine of the machine.
