Name: Double Cylinder Bw850-2 Drilling Mud Pump With Electric Power Source
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: option
Price: 9,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model: BW 850-2

Power Source: Electric

Operation Pressure: Atmospheric Pressure

Material: Cast Steel

Power: Engine,Hydraulic,Elcetric Motor

Input Power: 40kw

Core Components: Gearbox, Pump, Gear, Bearing, Engine, Motor

Flow Rate: 850(L/Min)

Specification: 2000mm*1030mm*1400mm

Highlight:

Double Cylinder Mud Pump

Bw850-2 Drilling Mud Pump

Electric drilling mud pump

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE and others

Model Number: option

Payment & Shipping Terms

Packaging Details: Seaworthy package

Delivery Time: 25-35days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500 piece per month

Gallery

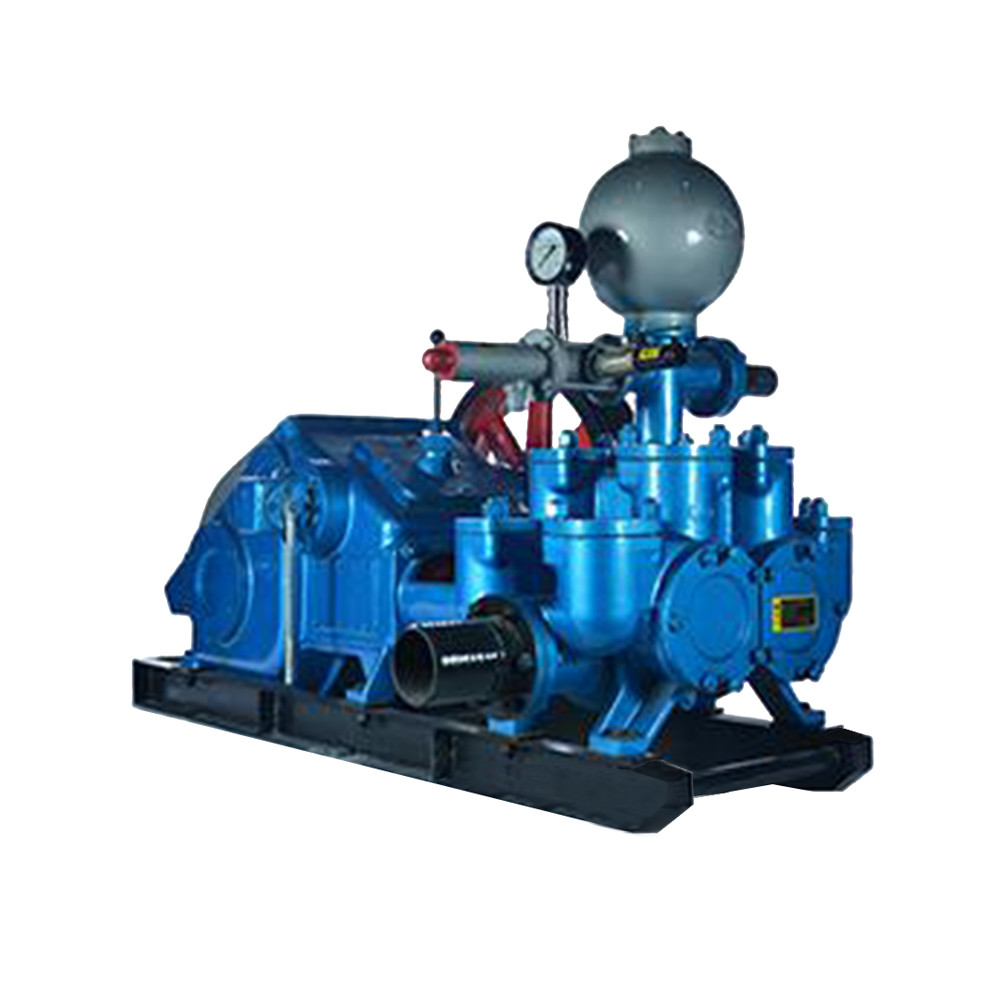

Double Cylinder Bw850-2 Drilling Mud Pump With Electric Power Source

Product Description

BW series mud pump

Used for HDD drilling, Oil and Gas field drilling, Mining, Water well drilling etc.And also have below features:
1.Horizontal double cylinder & three cylinder, single-acting&double acting reciprocating piston pump.
2.Simple and compact structure, light weight, long service life of wearing parts, easy operation.
3.Extending service life of pump greatly by using e-metal liner. Type:BW850/2Horizontal double cylinder reciprocating double action piston pump

Cylinder Liner Dia(mm):150
Piston Stroke(mm):180
Theoretical Flow Rate(L/min):600 850
Rated Pressure (MPa):3 2
Strokes Per Minute:58 82
ID of Suction Pipe(mm):127
ID of Discharge Pipe(mm):64
Input Rotating Speed(r/min):470
Input Power(kW):40
Overall Dimension(L×W×H) (mm):2000×1030×1400
Weight(kg):1500

Double Cylinder Bw850-2 Drilling Mud Pump With Electric Power Source 0

Type:BW850/2	Horizontal double cylinder reciprocating double action piston pump
Cylinder Liner Dia(mm)	150
Piston Stroke	180
Theoretical Flow Rate(L/min)	600	850
Rated Pressure(MPa)	3	2
Strokes Per Minute	58	82
ID of Suction Pipe	127
ID of Discharge Pipe	64
Input Rotating Speed	470
Input Power(kW)	40
Overrall Dimension(L×W×H)(mm)	2000×1030×140

Mud Pump Double Cylinder Mud Pump Bw850-2 Drilling Mud Pump

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Q1: What about the delivery?
The drilling rig,air compressor usually shipment by sea or road,and drilling tools can be delivery by air.
Q2: What's the delivery time?
7-25 days after received your payment.

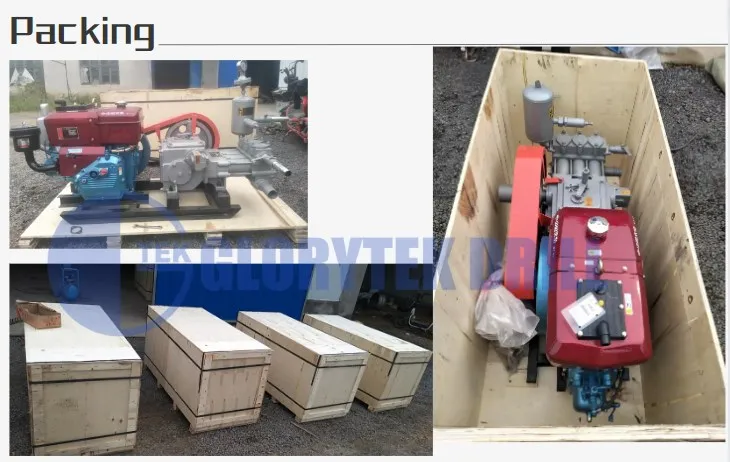

Q3: What's the package?
Strong and beautiful aluminum alloy case/carton case/wooden case.
Q4: Do you have any timely technology supports?
Yes,We have a professional technology supporting team and the technical documents for your timely
services,also you can contact us by telephone, If you have any problems, please email us. You will get our solutions in 24 hours.
